Cable Cubby 202
- Provide a modular, configurable, and furniture-mountable enclosure that shall support an AC power module and combination of AV cables and cable retraction modules
- Device shall support one AC power module plus

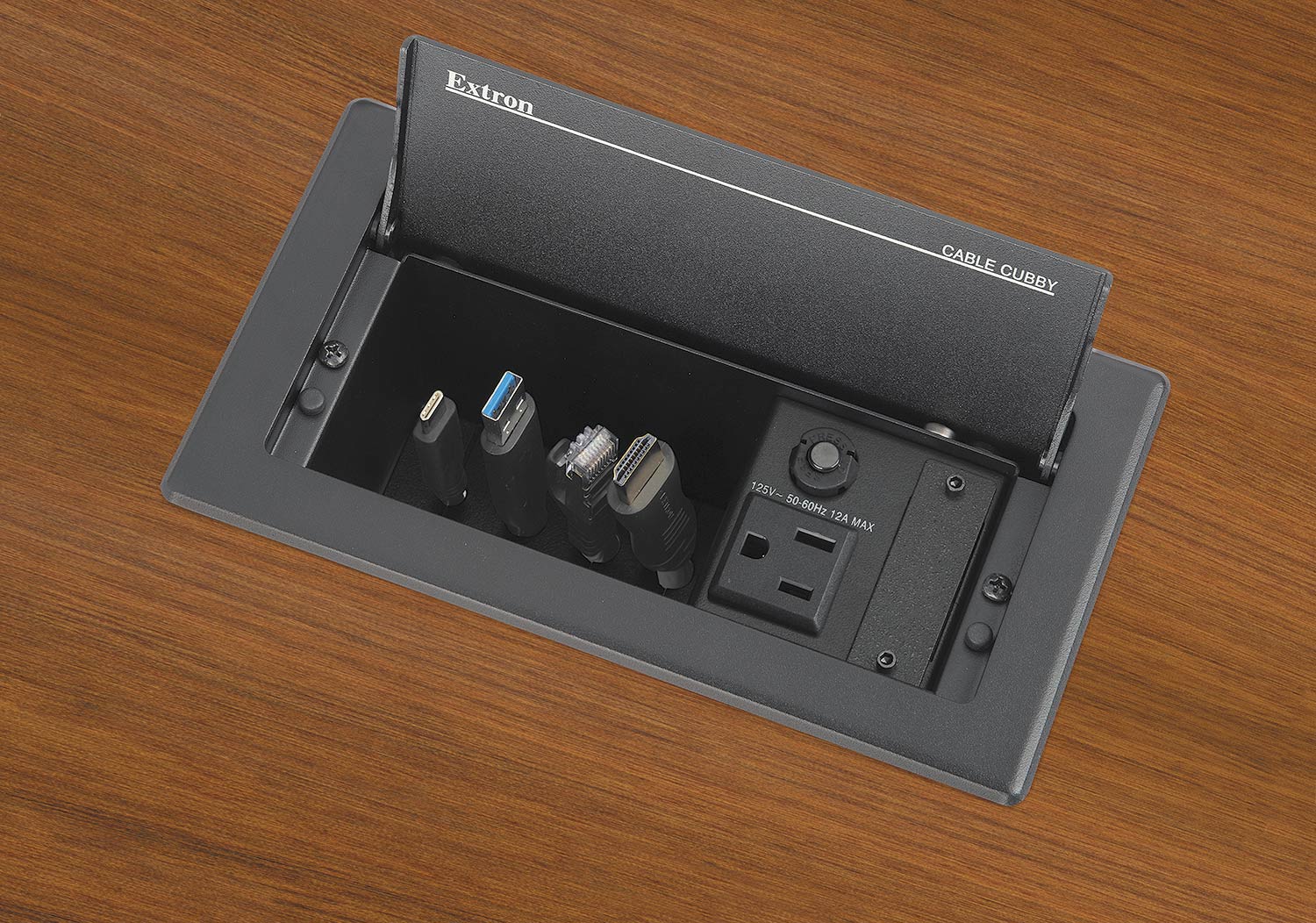

- Up to four AV cables, or

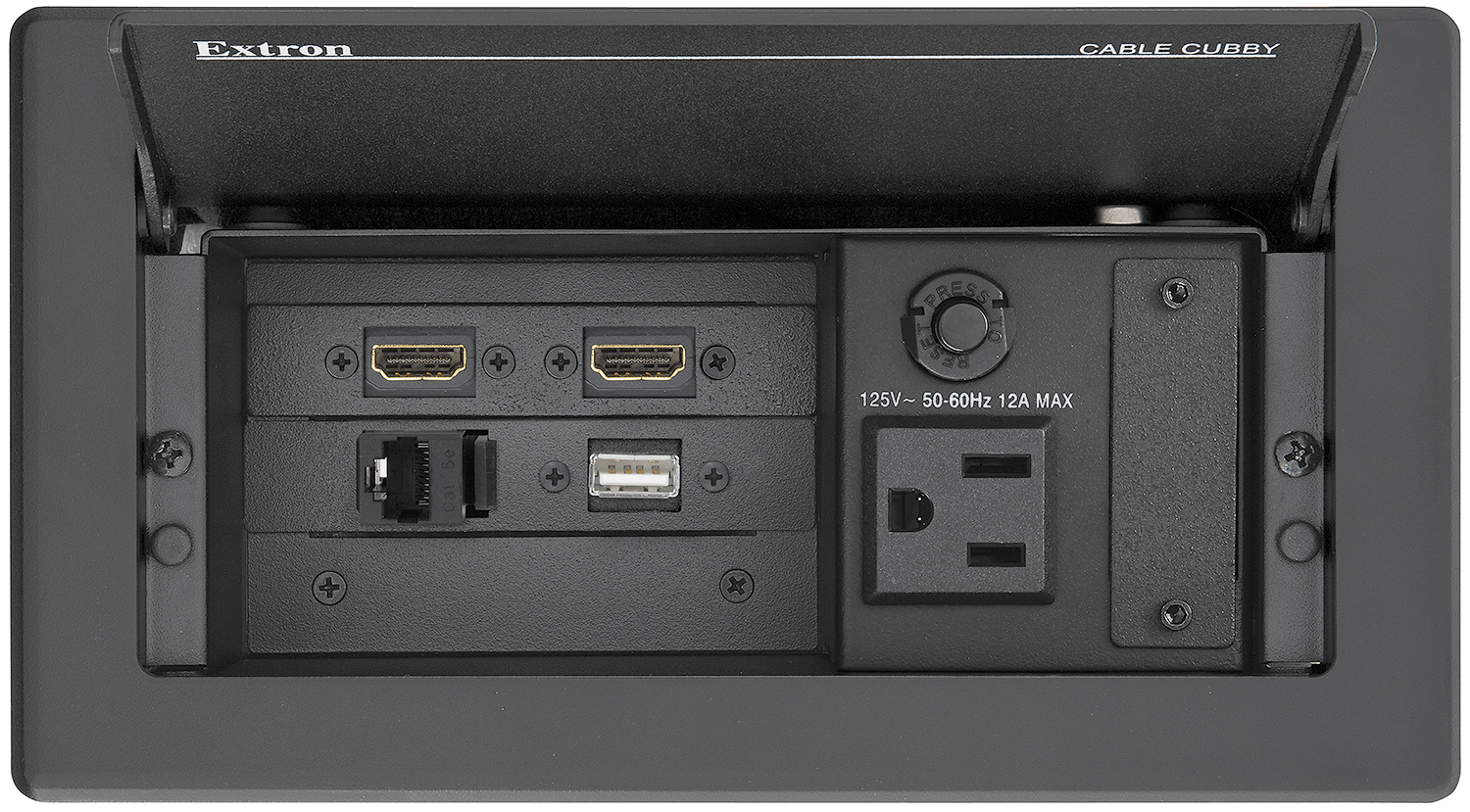

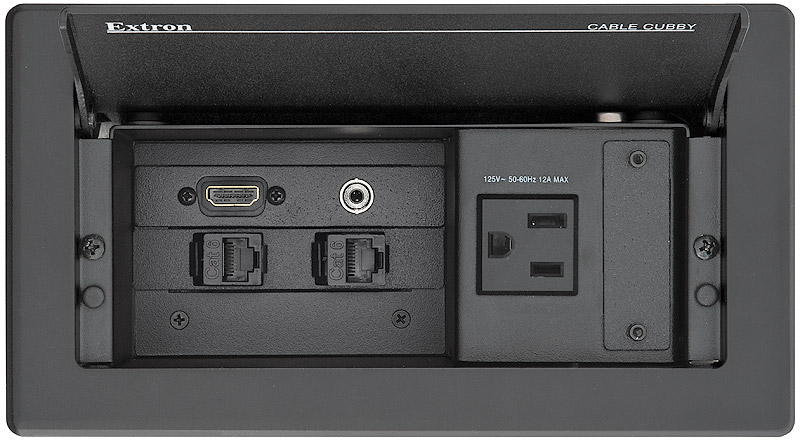

- Up to two AV connectivity plates, or

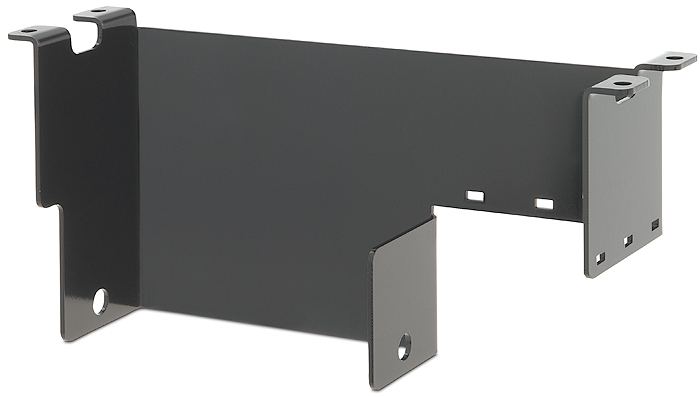

- Up to three cable retraction modules
- The device shall include modules and mounting frames to support AV cables and/or AV connectivity plates.
- The modules shall be positionable within the enclosure, mounting to the left of an AC power module
- AC power modules shall be available for all world markets
- AC power modules shall be UL listed and CE compliant when installed within the enclosure

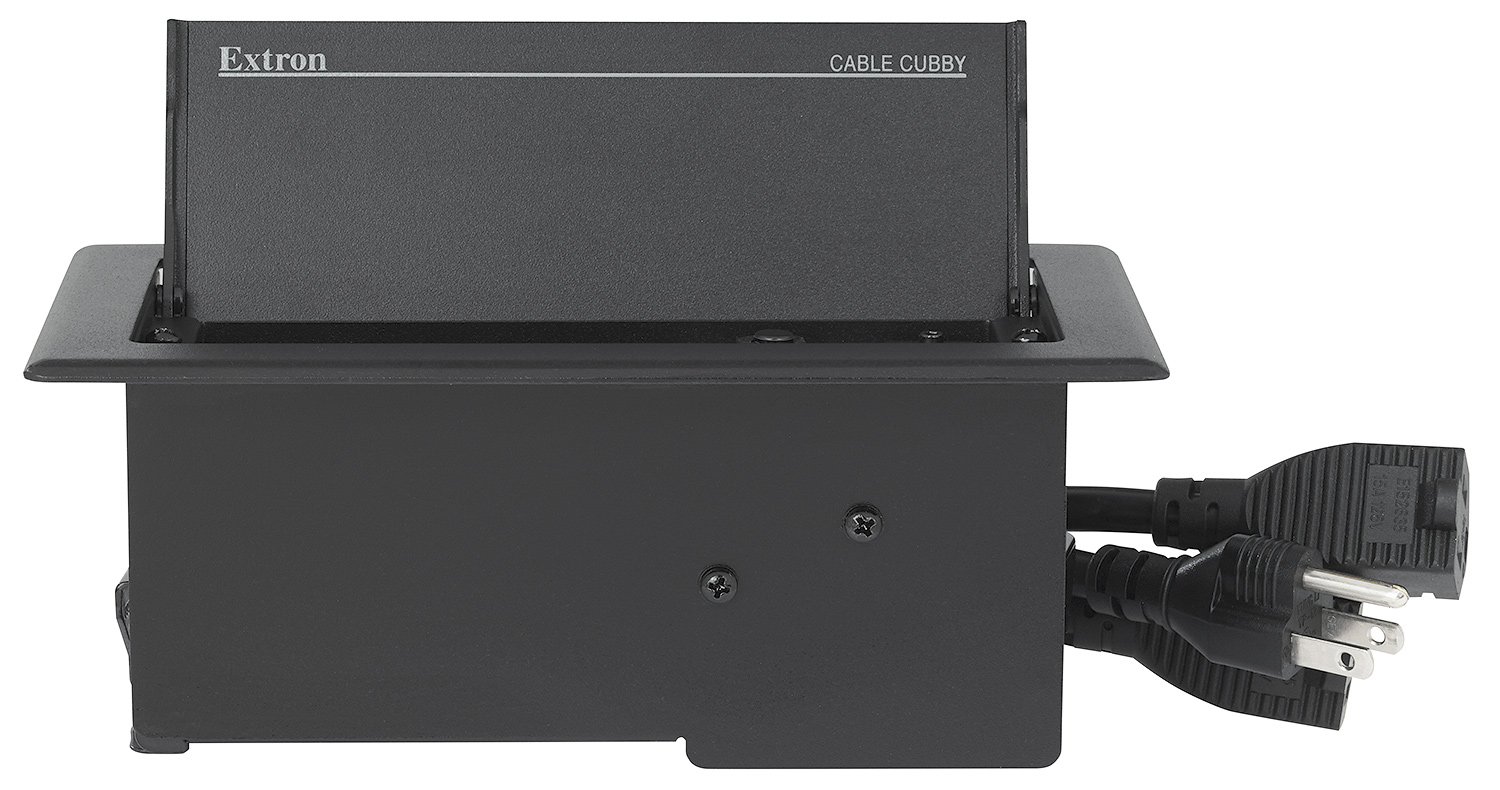

- AC power modules shall include one AC power outlets
- AC power modules shall include an attached AC power cord or IEC power inlet with detachable AC power cord, as required by local electrical power codes and conventions
- US AC shall include an opening for one MAAP – Mini Architectural Adapter Plate, such as a momentary switch or USB pass-through connector; sold separately
- The external power supply shall be designed and manufactured by the same entity providing the enclosure and power module
- The cable pass-through plate shall be a single unit
- The plate shall be flexible to allow the installation, removal, or replacement of cables
- The plate shall utilize a split-ring design that accommodates a range of AV cable diameters without the need for supplemental grommets
- The plate shall include plugs to cap cable pass-through openings that are not utilized
- The assembled plate, with cables, shall install from the top of the enclosure, after it’s installed within the furniture surface
- The AV connectivity frame shall be a single unit
- The frame shall support two single-space AV connectivity plates, or one double-space AV connectivity plate
- The assembled frame, with AV connectivity plates and attached cables, shall install from the top of the enclosure, after it’s installed within the furniture surface
- Device shall include an attached and fully integrated, all metal lid and bezel assembly
- The lid and bezel assembly shall be available in a black powder coat finish
- Device lid shall fit entirely within the bezel

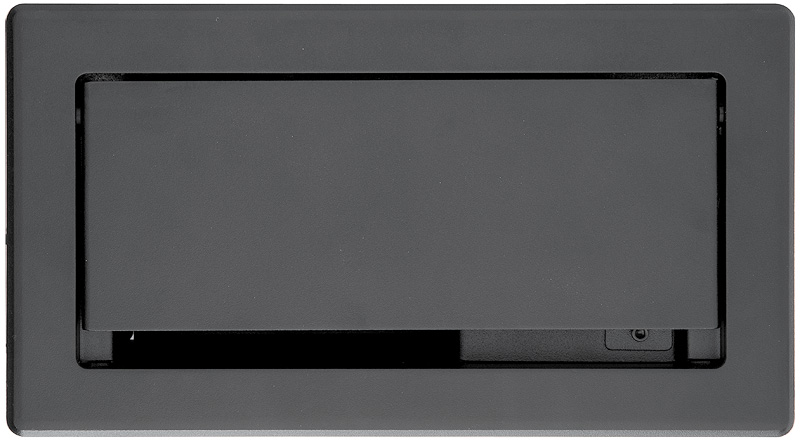

- When closed, the lid shall provide a full-width opening for cable pass-through
- When open, the lid shall articulate such that it fits within the enclosure body

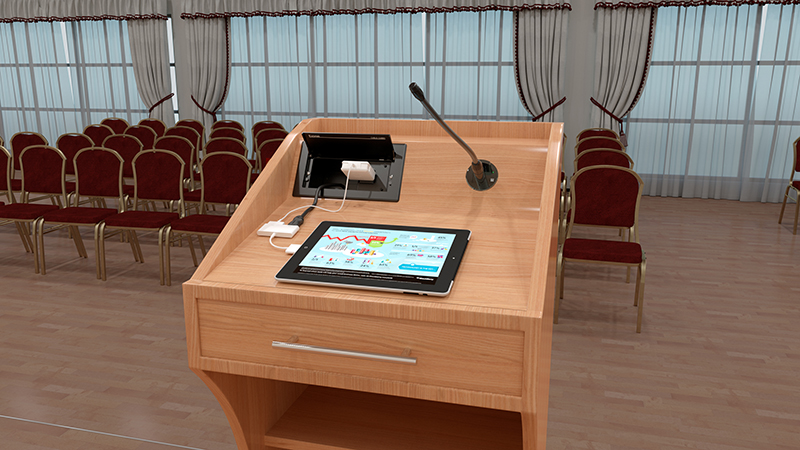

- Device shall include a magnet catch, facilitating use of the enclosure in both horizontal and vertical mounting operations
- Device enclosure shall mount entirely within an opening sufficient to accommodate the enclosure
- An installation routing template, of an appropriate size to accommodate the enclosure, shall be available optionally

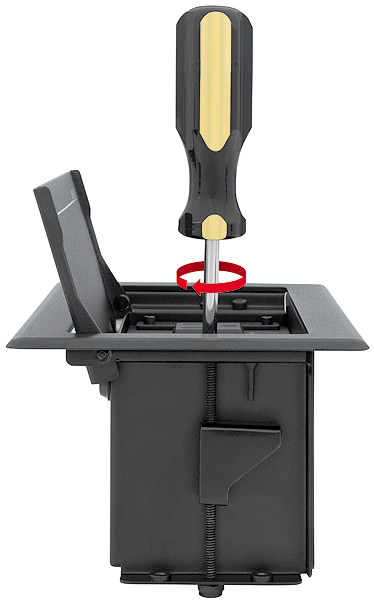

- The enclosure shall feature an integrated clamp system
- The clamps shall be permanently affixed to the enclosure body
- The clamps shall utilize the dog leg clamp mechanism
- The clamps shall secure the enclosure to the furniture with common hand tools
- The clamps shall allow for removal of the enclosure from the furniture with common hand tools
- An Internet-accessible application for enclosure configuration and visualization shall be available
- Application shall provide for selection of the enclosure, AC power modules, AV cables, AV connectivity plates, and cable retraction modules
- Application shall provide accurate depiction of power and connectivity selections
- Application shall provide a method of saving a representation of the configured enclosure and corresponding bill of materials
- Application shall provide market-specific pricing of the configured enclosure for budgetary purposes
- Approved device shall be the Extron Cable Cubby 202; no alternates or equals
- Device shall support one AC power module plus
