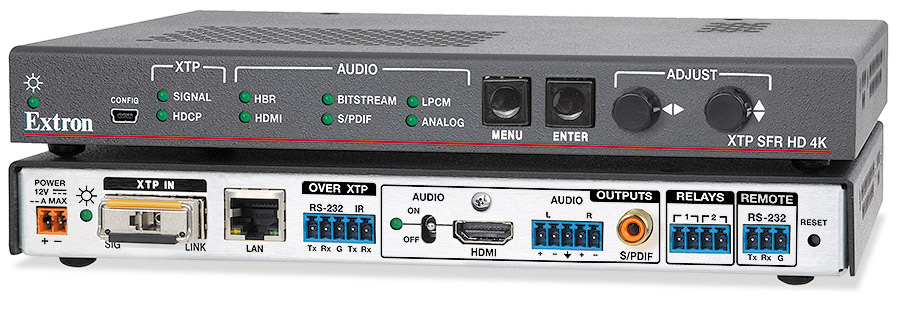

XTP SFR HD 4K
建筑工程规范
选择一个产品编号：
复制文本
已复制！
发生错误。请稍后重试。
XTP SFR HD 4K MM
- Shall provide a fiber optic scaling receiver that supports the distribution of HDMI video, multi-channel audio, bidirectional RS-232 and IR control, and Ethernet
- Long distance signal extension of video, audio, and control signals plus Ethernet over one OM4 multimode fiber optic cable
- Video output requirements
- Shall provide one (1) female HDMI connector for digital video signals with embedded audio
- Automatically reformats HDMI source signals for output to a connected DVI display
- Shall provide selectable computer and video resolutions up to 3840x2160 @ 30 Hz with 4:4:4 chroma sampling, 2560x1600 @ 60 Hz, and 1080p/60 with Deep Color
- Shall provide a scaler bypass mode to support unprocessed transmission of 3D, 3840x2160/60 at 4:2:0, 4096x2160/24, and other formats
- Shall provide selectable aspect ratio control
- FILL mode - the video image shall always fill the output screen without letterbox or pillarbox
- FOLLOW mode - the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
- Shall support a videowall mode when used with an XTP CrossPoint matrix switcher to enable a mix of full screen and image magnification across multiple displays for configurations up to 8x8
- Shall provide internal test patterns for calibration and setup
- Shall support image freeze through RS-232 or Ethernet control
- Shall support HDMI specification features
- Data rates up to 10.2 Gbps
- Deep Color up to 12-bit
- 3D content
- HD lossless audio formats
- Shall provide one (1) female HDMI connector for digital video signals with embedded audio
- Embedded audio output requirements
- Shall provide one (1) female HDMI connector – shared with video input
- Shall support embedded digital audio formats
- Analog audio output requirements
- Shall provide selectable HDMI audio pass-through via toggle switch on rear panel
- Shall provide one (1) 3.5 mm stereo jack for S/PDIF
- Shall provide one (1) 3.5 mm captive screw connector, five-pole for balanced or unbalanced analog stereo
- Shall provide the de-embedding of analog audio
- Shall provide the capability to adjust volume
- Shall provide capability to mute
- EDID communication requirements
- Shall support Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Control requirements
- Shall provide one (1) female mini USB port B on front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
- Shall provide one (1) two-pole captive screw connector on rear panel for bidirectional IR pass-through
- Shall provide two (2) two-pole captive screw connectors on rear panel for relay control of room functions
- Ethernet extension
- Shall provide one (1) 10/100 Ethernet port
- Ethernet pass-through port to reduce the amount of independent network drops
- Shall provide one (1) 10/100 Ethernet port
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over one multimode fiber optic cable
- Shall provide one (1) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals plus Ethernet over one multimode fiber optic cable
- Shall provide signal transmission over OM4 laser optimized multimode fiber optic cable
- Shall provide signal extension up to 500 meters (1,640 feet)
- Shall support an optical loss budget of at least 8 dB between transmitter and receiver
- HDCP requirements
- Shall be HDCP compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall provide a visual confirmation when encrypted content is sent to a non-compliant display device
- Power requirements
- Shall include an external universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall provide internal color bars text pattern for calibration and setup
- Shall provide visual signal on LED indicators on the front panel for XTP signal presence, HDCP authentication, audio signal presence, audio format, and power
- Shall provide visual signal on LED indicators located on rear panel for signal presence, link status, HDMI audio pass-through selection, and power
- Shall have a 1-inch (2.5 cm) high, half rack width metal enclosure
- Shall be rack mountable with optional rack shelf
- Shall be wall or furniture mountable with optional mounting kits
- Shall include Extron Lockit® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least three years parts and labor warranty
- Shall be compatible with all Extron XTP Systems products
- Approved device shall be the Extron XTP SFR HD 4K MM (60-1278-31); no alternates or equals
XTP SFR HD 4K MM
- Shall provide a fiber optic scaling receiver that supports the distribution of HDMI video, multi-channel audio, bidirectional RS-232 and IR control, and Ethernet
- Long distance signal extension of video, audio, and control signals plus Ethernet over one OM4 multimode fiber optic cable
- Video output requirements
- Shall provide one (1) female HDMI connector for digital video signals with embedded audio
- Automatically reformats HDMI source signals for output to a connected DVI display
- Shall provide selectable computer and video resolutions up to 3840x2160 @ 30 Hz with 4:4:4 chroma sampling, 2560x1600 @ 60 Hz, and 1080p/60 with Deep Color
- Shall provide a scaler bypass mode to support unprocessed transmission of 3D, 3840x2160/60 at 4:2:0, 4096x2160/24, and other formats
- Shall provide selectable aspect ratio control
- FILL mode - the video image shall always fill the output screen without letterbox or pillarbox
- FOLLOW mode - the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
- Shall support a videowall mode when used with an XTP CrossPoint matrix switcher to enable a mix of full screen and image magnification across multiple displays for configurations up to 8x8
- Shall provide internal test patterns for calibration and setup
- Shall support image freeze through RS-232 or Ethernet control
- Shall support HDMI specification features
- Data rates up to 10.2 Gbps
- Deep Color up to 12-bit
- 3D content
- HD lossless audio formats
- Shall provide one (1) female HDMI connector for digital video signals with embedded audio
- Embedded audio output requirements
- Shall provide one (1) female HDMI connector – shared with video input
- Shall support embedded digital audio formats
- Analog audio output requirements
- Shall provide selectable HDMI audio pass-through via toggle switch on rear panel
- Shall provide one (1) 3.5 mm stereo jack for S/PDIF
- Shall provide one (1) 3.5 mm captive screw connector, five-pole for balanced or unbalanced analog stereo
- Shall provide the de-embedding of analog audio
- Shall provide the capability to adjust volume
- Shall provide capability to mute
- EDID communication requirements
- Shall support Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Control requirements
- Shall provide one (1) female mini USB port B on front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
- Shall provide one (1) two-pole captive screw connector on rear panel for bidirectional IR pass-through
- Shall provide two (2) two-pole captive screw connectors on rear panel for relay control of room functions
- Ethernet extension
- Shall provide one (1) 10/100 Ethernet port
- Ethernet pass-through port to reduce the amount of independent network drops
- Shall provide one (1) 10/100 Ethernet port
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over one multimode fiber optic cable
- Shall provide one (1) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals plus Ethernet over one multimode fiber optic cable
- Shall provide signal transmission over OM4 laser optimized multimode fiber optic cable
- Shall provide signal extension up to 500 meters (1,640 feet)
- Shall support an optical loss budget of at least 8 dB between transmitter and receiver
- HDCP requirements
- Shall be HDCP compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall provide a visual confirmation when encrypted content is sent to a non-compliant display device
- Power requirements
- Shall include an external universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall provide internal color bars text pattern for calibration and setup
- Shall provide visual signal on LED indicators on the front panel for XTP signal presence, HDCP authentication, audio signal presence, audio format, and power
- Shall provide visual signal on LED indicators located on rear panel for signal presence, link status, HDMI audio pass-through selection, and power
- Shall have a 1-inch (2.5 cm) high, half rack width metal enclosure
- Shall be rack mountable with optional rack shelf
- Shall be wall or furniture mountable with optional mounting kits
- Shall include Extron Lockit® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least three years parts and labor warranty
- Shall be compatible with all Extron XTP Systems products
- Approved device shall be the Extron XTP SFR HD 4K MM (60-1278-31); no alternates or equals
XTP SFR HD 4K SM
- Shall provide a fiber optic scaling receiver that supports the distribution of HDMI video, multi-channel audio, bidirectional RS-232 and IR control, and Ethernet
- Long distance signal extension of video, audio, and control signals plus Ethernet over one singlemode fiber optic cable
- Video output requirements
- Shall provide one (1) female HDMI connector for digital video signals with embedded audio
- Automatically reformats HDMI source signals for output to a connected DVI display
- Shall provide selectable computer and video resolutions up to 3840x2160 @ 30 Hz with 4:4:4 chroma sampling, 2560x1600 @ 60 Hz, and 1080p/60 with Deep Color
- Shall provide a scaler bypass mode to support unprocessed transmission of 3D, 3840x2160/60 at 4:2:0, 4096x2160/24, and other formats
- Shall provide selectable aspect ratio control
- FILL mode - the video image shall always fill the output screen without letterbox or pillarbox
- FOLLOW mode - the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
- Shall support a videowall mode when used with an XTP CrossPoint matrix switcher to enable a mix of full screen and image magnification across multiple displays for configurations up to 8x8
- Shall provide internal test patterns for calibration and setup
- Shall support image freeze through RS-232 or Ethernet control
- Shall support HDMI specification features
- Data rates up to 10.2 Gbps
- Deep Color up to 12-bit
- 3D content
- HD lossless audio formats
- Shall provide one (1) female HDMI connector for digital video signals with embedded audio
- Embedded audio output requirements
- Shall provide one (1) female HDMI connector – shared with video input
- Shall support embedded digital audio formats
- Analog audio output requirements
- Shall provide selectable HDMI audio pass-through via toggle switch on rear panel
- Shall provide one (1) 3.5 mm stereo jack for S/PDIF
- Shall provide one (1) 3.5 mm captive screw connector, five-pole for balanced or unbalanced analog stereo
- Shall provide the de-embedding of analog audio
- Shall provide the capability to adjust volume
- Shall provide capability to mute
- EDID communication requirements
- Shall support Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Control requirements
- Shall provide one (1) female mini USB port B on front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
- Shall provide one (1) two-pole captive screw connector on rear panel for bidirectional IR pass-through
- Shall provide two (2) two-pole captive screw connectors on rear panel for relay control of room functions
- Ethernet extension
- Shall provide one (1) 10/100 Ethernet port
- Ethernet pass-through port to reduce the amount of independent network drops
- Shall provide one (1) 10/100 Ethernet port
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over one singlemode fiber optic cable
- Shall provide one (1) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals plus Ethernet over one singlemode fiber optic cable
- Shall provide signal transmission over singlemode fiber optic cable
- Shall provide signal extension up to 10 km (6.21 miles)
- HDCP requirements
- Shall be HDCP compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall provide a visual confirmation when encrypted content is sent to a non-compliant display device
- Power requirements
- Shall include an external universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall provide internal color bars text pattern for calibration and setup
- Shall provide visual signal on LED indicators on the front panel for XTP signal presence, HDCP authentication, audio signal presence, audio format, and power
- Shall provide visual signal on LED indicators located on rear panel for signal presence, link status, HDMI audio pass-through selection, and power
- Shall have a 1-inch (2.5 cm) high, half rack width metal enclosure
- Shall be rack mountable with optional rack shelf
- Shall be wall or furniture mountable with optional mounting kits
- Shall include Extron Lockit® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least three years parts and labor warranty
- Shall be compatible with all Extron XTP Systems products
- Approved device shall be the Extron XTP SFR HD 4K SM (60-1278-32); no alternates or equals
XTP SFR HD 4K SM
- Shall provide a fiber optic scaling receiver that supports the distribution of HDMI video, multi-channel audio, bidirectional RS-232 and IR control, and Ethernet
- Long distance signal extension of video, audio, and control signals plus Ethernet over one singlemode fiber optic cable
- Video output requirements
- Shall provide one (1) female HDMI connector for digital video signals with embedded audio
- Automatically reformats HDMI source signals for output to a connected DVI display
- Shall provide selectable computer and video resolutions up to 3840x2160 @ 30 Hz with 4:4:4 chroma sampling, 2560x1600 @ 60 Hz, and 1080p/60 with Deep Color
- Shall provide a scaler bypass mode to support unprocessed transmission of 3D, 3840x2160/60 at 4:2:0, 4096x2160/24, and other formats
- Shall provide selectable aspect ratio control
- FILL mode - the video image shall always fill the output screen without letterbox or pillarbox
- FOLLOW mode - the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
- Shall support a videowall mode when used with an XTP CrossPoint matrix switcher to enable a mix of full screen and image magnification across multiple displays for configurations up to 8x8
- Shall provide internal test patterns for calibration and setup
- Shall support image freeze through RS-232 or Ethernet control
- Shall support HDMI specification features
- Data rates up to 10.2 Gbps
- Deep Color up to 12-bit
- 3D content
- HD lossless audio formats
- Shall provide one (1) female HDMI connector for digital video signals with embedded audio
- Embedded audio output requirements
- Shall provide one (1) female HDMI connector – shared with video input
- Shall support embedded digital audio formats
- Analog audio output requirements
- Shall provide selectable HDMI audio pass-through via toggle switch on rear panel
- Shall provide one (1) 3.5 mm stereo jack for S/PDIF
- Shall provide one (1) 3.5 mm captive screw connector, five-pole for balanced or unbalanced analog stereo
- Shall provide the de-embedding of analog audio
- Shall provide the capability to adjust volume
- Shall provide capability to mute
- EDID communication requirements
- Shall support Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Control requirements
- Shall provide one (1) female mini USB port B on front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
- Shall provide one (1) two-pole captive screw connector on rear panel for bidirectional IR pass-through
- Shall provide two (2) two-pole captive screw connectors on rear panel for relay control of room functions
- Ethernet extension
- Shall provide one (1) 10/100 Ethernet port
- Ethernet pass-through port to reduce the amount of independent network drops
- Shall provide one (1) 10/100 Ethernet port
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over one singlemode fiber optic cable
- Shall provide one (1) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals plus Ethernet over one singlemode fiber optic cable
- Shall provide signal transmission over singlemode fiber optic cable
- Shall provide signal extension up to 10 km (6.21 miles)
- HDCP requirements
- Shall be HDCP compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall provide a visual confirmation when encrypted content is sent to a non-compliant display device
- Power requirements
- Shall include an external universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall provide internal color bars text pattern for calibration and setup
- Shall provide visual signal on LED indicators on the front panel for XTP signal presence, HDCP authentication, audio signal presence, audio format, and power
- Shall provide visual signal on LED indicators located on rear panel for signal presence, link status, HDMI audio pass-through selection, and power
- Shall have a 1-inch (2.5 cm) high, half rack width metal enclosure
- Shall be rack mountable with optional rack shelf
- Shall be wall or furniture mountable with optional mounting kits
- Shall include Extron Lockit® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least three years parts and labor warranty
- Shall be compatible with all Extron XTP Systems products
- Approved device shall be the Extron XTP SFR HD 4K SM (60-1278-32); no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
