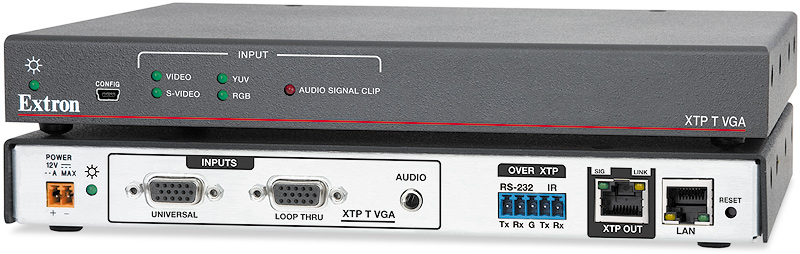

XTP T VGA

XTP T VGA

1. Provide a universal twisted pair transmitter that shall support the distribution of multi-format analog video, audio, control, and Ethernet extension over a shielded CATx cable.
   1. Long distance transmitter for RGBHV, HD component video, S-video, and composite video signals, audio, control, and Ethernet extension
   2. Video input requirements
      1. Provide one (1) VGA input for multi-format analog video signals
         1. Shall digitize analog video input signals prior to transmission
         2. Support computer video up to 1920x1200, including HDTV 1080p/60
         3. Support loop-through of the signal for local output
      2. Support digital conversion of analog video formats
   3. Audio input requirements
      1. Provide audio input connection
         1. One stereo analog audio
   4. Control input requirements
      1. Provide communication connections
         1. One bidirectional RS-232 pass-through
         2. One bidirectional IR pass-through
   5. Provide Ethernet extension
      1. One 10/100 Ethernet port
         1. Ethernet pass-through port to reduce the amount of independent network drops
   6. Interconnection requirements
      1. Provide Interconnection between transmitter and receiver or XTP CrossPoint matrix switcher input board
         1. One RJ-45 twisted pair connection
   7. Transmission requirements
      1. Provide a signal transmission distance capability of 330' (100 m) at 1920x1200, including HDTV 1080p @ 60 Hz using a shielded twisted pair cable
      2. Support RGBHV, HD component video, S-video, and composite video signals, audio, control, and Ethernet extension over a shielded twisted pair cable
      3. Actively buffer DDC channels
   8. Resolution requirements
      1. Support computer video up to 1920x1200, including HDTV 1080p/60
      2. Support bi-level and tri-level component video formats
   9. Audio requirements
      1. The unit shall accept analog stereo audio signals
      2. The unit shall support analog audio input gain and attenuation
   10. EDID requirements
       1. Provide automatic EDID management between connected devices
          1. Shall provide user-selection of EDID from any connected display
          2. Shall provide user-selection of EDID from pre-stored data files
          3. Shall maintain continuous EDID communication with the connected source
   11. Communication requirements
       1. The unit shall support bidirectional RS-232 communication pass-through up to 115200 baud
       2. The unit shall support bidirectional IR pass-through
       3. The unit shall support 10/100 Ethernet pass-through
       4. The unit shall support EDID transmission
   12. Power requirements
       1. The unit shall support remote powering from an XTP CrossPoint matrix switcher input board or XTP power injector
   13. Control requirements
       1. Shall support setup and configuration through USB
       2. Shall support setup and configuration through a system-wide management software from an XTP CrossPoint matrix switcher communication channel
   14. General requirements
       1. The unit shall support RGBHV, HD component video, S-video, and composite video signals, audio, control, and Ethernet extension over a shielded twisted pair cable
       2. The unit shall be compatible with shielded CATx twisted pair cable
       3. The unit shall support remote powering from an XTP CrossPoint matrix switcher input boardor XTP power injector
       4. The unit shall have a low profile enclosure and versatile mounting capability
       5. Shall provide visual indicator for signal presence and power
       6. Shall meet regulatory compliance
          1. CE, c-UL, UL
          2. CE, C-tick, FCC Class A, ICES, VCCI
       7. Shall provide at least 3 years parts and labor warranty
       8. Shall be compatible with other devices within an XTP System for distribution and routing
   15. Approved device shall be the Extron XTP T VGA (60-1231-12); no alternates or equals
