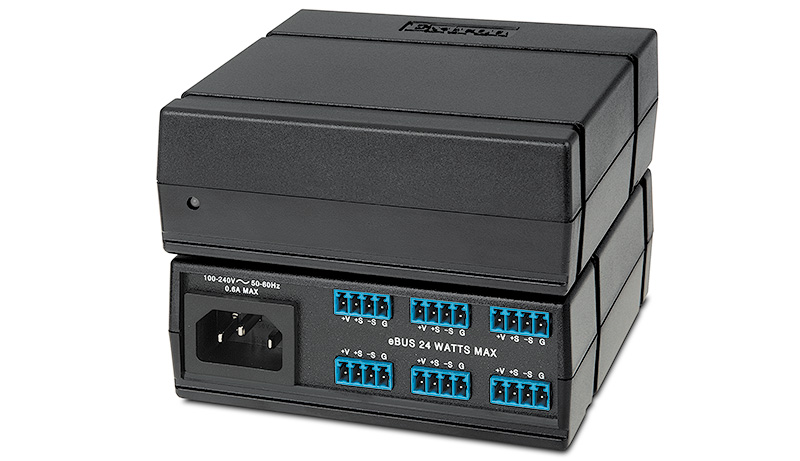

PS 1220EB

PS 1220EB

1. Provide an eBUS power supply and distribution hub for providing additional power while serving as a distribution hub for multiple eBUS devices
   1. A six port, 12 VDC power supply and distribution hub capable of providing up to 24 watts of power
      1. Provide one IEC C14 power receptacle located on the back of the power supply that can support 100-240 VAC, 50/60 Hz power
      2. Provide six parallel eBUS ports on 4 pole captive screw connectors located on the back of the power supply that allows communication to the control processor and for control system expansion.
      3. Provide one front panel LED that lights to indicate the unit is receiving power
   2. Mounting requirements
      1. Device shall be housed in a 1 RU, quarter rack width high impact, high temperature convection-cooled plastic enclosure
      2. Device shall be rack mountable using an optional rack shelf
      3. Device shall include a mounting kit that includes support for mounting to rack rails, tables, lecterns, projector poles, and table legs
         1. Mounting kit shall provide a quick release tab allowing for easy installation and removal
         2. Mounting kit shall provide wire tie slots for proper strain relief and dressing of excess cable
   3. Shall meet regulatory compliances
      1. CCC
      2. CE
      3. C-tick
      4. c-UL
      5. CISPR 22 Class B
      6. CISPR 24
      7. FCC Class B
      8. NEC Class 2
      9. PSE
      10. S-mark
      11. UL
      12. Shall comply with appropriate requirements of RoHS and WEEE
   4. Product Warranty
      1. Shall provide three-year parts and labor warranty
   5. Approved device shall be the Extron PS 1220EB, part number 70-988-01; no alternates or equals
