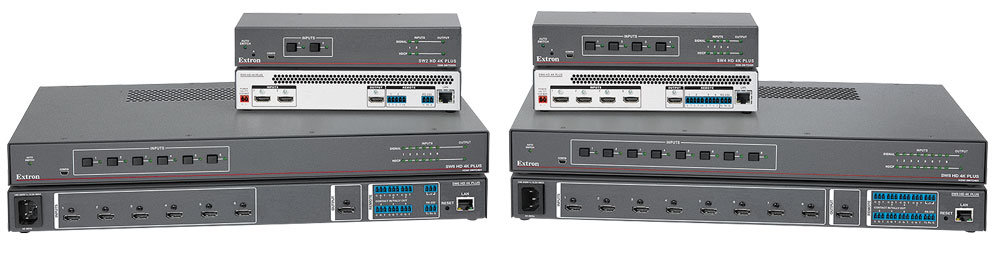

SW HD 4K PLUS 系列
建筑工程规范
选择一个产品编号：
复制文本
已复制！
发生错误。请稍后重试。

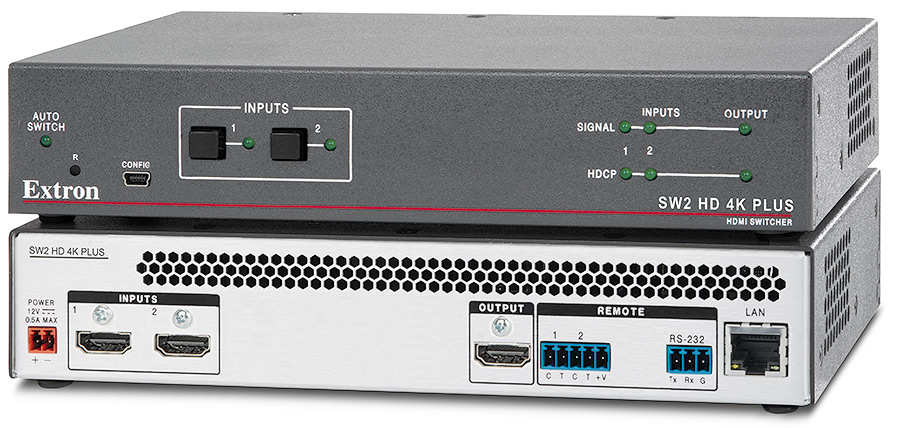

SW2 HD 4K PLUS
- Shall provide switching of digital video and embedded digital audio signals that shall support two inputs and one output
- Shall be a switcher for HDMI video and embedded digital audio signals
- Shall support local device connection
- Shall support computer and video resolutions up to 4096x2160 at 60 Hz at 4:4:4 chroma sampling
- Shall support HDMI specifications including data rates up to 18 Gbps, HDR, 12-bit Deep Color, 3D, and HD lossless audio formats
- Video input requirements
- Shall provide two (2) female HDMI Type A connectors for digital video signals with embedded audio
- Shall provide automatic input cable equalization up to 25 feet (7.6 meters) for signals up to 4096x2160 at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Shall provide automatic input cable equalization up to 100 feet (30.4 meters) for signals up to 1080p at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Video output requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide automatic management of color bit depth based on the capabilities of the connected display, as reported by display EDID
- EDID requirements
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- User-selection of EDID from the connected display
- User-selection of EDID from pre-stored data files
- User upload of custom-generated EDID files
- Assignment of pre-stored, captured, or uploaded files
- Maintain continuous EDID communication with the connected sources
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
- Shall provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232 or USB connection
- Shall provide +5 VDC, 250 mA power on the output for an external peripheral device
- Control requirements
- Shall provide one (1) LAN port on rear panel for Ethernet control
- Shall provide one (1) 3.5 mm, three-pole captive screw RS-232 connector on rear panel for control
- Shall provide one (1) 3.5 mm, five-pole captive screw connector on rear panel for contact closure remote control with tally output
- Shall provide one (1) USB mini-B connector on front panel for setup, configuration, and firmware update loading
- Shall provide physical buttons on front panel for creating ties within the switcher
- Shall provide automatic switching that follows the most recently connected or highest-numbered input with an active connected source
- Shall support device setup and commissioning using Extron Product Configuration Software
- Power requirements
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- General requirements
- Shall be convection cooled and with vents on right and left sides, and rear panel
- Shall be housed in a 1U high, half EIA rack-width metal enclosure
- Shall be rack mountable with optional 1U rack shelf
- Shall be furniture mountable with optional mounting kits
- Shall provide visual signal on LED indicators located on front panel for auto-switch status, signal presence, and HDCP authentication
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
- Shall support front panel security lockout to prevent unauthorized use in non-secure environments
- Shall include LockIt® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL, PSE, RoHs, and WEEE
- Shall provide at least three years parts and labor warranty
- Shall be a switcher for HDMI video and embedded digital audio signals
- Approved device shall be the Extron SW2 HD 4K PLUS, part number 60-1603-01; no alternates or equals
SW2 HD 4K PLUS
- Shall provide switching of digital video and embedded digital audio signals that shall support two inputs and one output
- Shall be a switcher for HDMI video and embedded digital audio signals
- Shall support local device connection
- Shall support computer and video resolutions up to 4096x2160 at 60 Hz at 4:4:4 chroma sampling
- Shall support HDMI specifications including data rates up to 18 Gbps, HDR, 12-bit Deep Color, 3D, and HD lossless audio formats
- Video input requirements
- Shall provide two (2) female HDMI Type A connectors for digital video signals with embedded audio
- Shall provide automatic input cable equalization up to 25 feet (7.6 meters) for signals up to 4096x2160 at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Shall provide automatic input cable equalization up to 100 feet (30.4 meters) for signals up to 1080p at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Video output requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide automatic management of color bit depth based on the capabilities of the connected display, as reported by display EDID
- EDID requirements
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- User-selection of EDID from the connected display
- User-selection of EDID from pre-stored data files
- User upload of custom-generated EDID files
- Assignment of pre-stored, captured, or uploaded files
- Maintain continuous EDID communication with the connected sources
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
- Shall provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232 or USB connection
- Shall provide +5 VDC, 250 mA power on the output for an external peripheral device
- Control requirements
- Shall provide one (1) LAN port on rear panel for Ethernet control
- Shall provide one (1) 3.5 mm, three-pole captive screw RS-232 connector on rear panel for control
- Shall provide one (1) 3.5 mm, five-pole captive screw connector on rear panel for contact closure remote control with tally output
- Shall provide one (1) USB mini-B connector on front panel for setup, configuration, and firmware update loading
- Shall provide physical buttons on front panel for creating ties within the switcher
- Shall provide automatic switching that follows the most recently connected or highest-numbered input with an active connected source
- Shall support device setup and commissioning using Extron Product Configuration Software
- Power requirements
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- General requirements
- Shall be convection cooled and with vents on right and left sides, and rear panel
- Shall be housed in a 1U high, half EIA rack-width metal enclosure
- Shall be rack mountable with optional 1U rack shelf
- Shall be furniture mountable with optional mounting kits
- Shall provide visual signal on LED indicators located on front panel for auto-switch status, signal presence, and HDCP authentication
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
- Shall support front panel security lockout to prevent unauthorized use in non-secure environments
- Shall include LockIt® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL, PSE, RoHs, and WEEE
- Shall provide at least three years parts and labor warranty
- Shall be a switcher for HDMI video and embedded digital audio signals
- Approved device shall be the Extron SW2 HD 4K PLUS, part number 60-1603-01; no alternates or equals

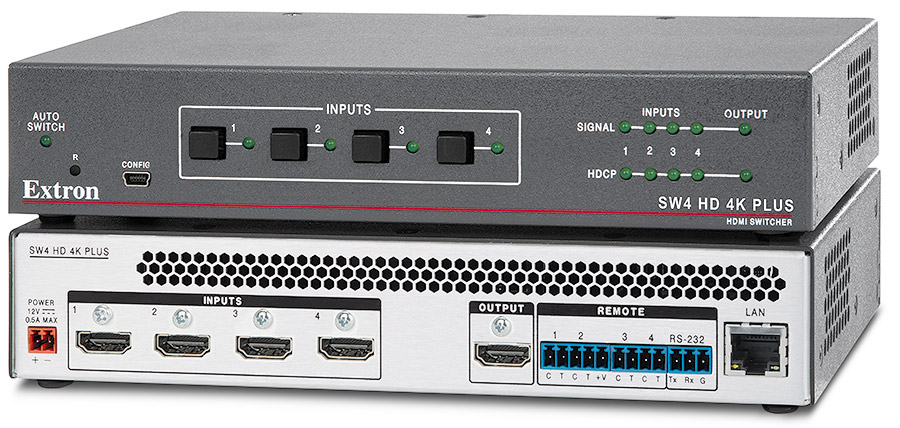

SW4 HD 4K PLUS
- Shall provide switching of digital video and embedded digital audio signals that shall support four inputs and one output
- Shall be a switcher for HDMI video and embedded digital audio signals
- Shall support local device connection
- Shall support computer and video resolutions up to 4096x2160 at 60 Hz at 4:4:4 chroma sampling
- Shall support HDMI specifications including data rates up to 18 Gbps, HDR, 12-bit Deep Color, 3D, and HD lossless audio formats
- Video input requirements
- Shall provide four (4) female HDMI Type A connectors for digital video signals with embedded audio
- Shall provide automatic input cable equalization up to 25 feet (7.6 meters) for signals up to 4096x2160 at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Shall provide automatic input cable equalization up to 100 feet (30.4 meters) for signals up to 1080p at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Video output requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide automatic management of color bit depth based on the capabilities of the connected display, as reported by display EDID
- EDID requirements
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- User-selection of EDID from the connected display
- User-selection of EDID from pre-stored data files
- User upload of custom-generated EDID files
- Assignment of pre-stored, captured, or uploaded files
- Maintain continuous EDID communication with the connected sources
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
- Shall provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232 or USB connection
- Shall provide +5 VDC, 250 mA power on the output for an external peripheral device
- Control requirements
- Shall provide one (1) LAN port on rear panel for Ethernet control
- Shall provide one (1) 3.5 mm, three-pole captive screw RS-232 connector on rear panel for control
- Shall provide one (1) 3.5 mm, five-pole and one (1) 3.5 mm, four-pole captive screw connectors on rear panel for contact closure remote control with tally output
- Shall provide one (1) USB mini-B connector on front panel for setup, configuration, and firmware update loading
- Shall provide physical buttons on front panel for creating ties within the switcher
- Shall provide automatic switching that follows the most recently connected or highest-numbered input with an active connected source
- Shall support device setup and commissioning using Extron Product Configuration Software
- Power requirements
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- General requirements
- Shall be convection cooled and with vents on right and left sides, and rear panel
- Shall be housed in a 1U high, half EIA rack-width metal enclosure
- Shall be rack mountable with optional 1U rack shelf
- Shall be furniture mountable with optional mounting kits
- Shall provide visual signal on LED indicators located on front panel for auto-switch status, signal presence, and HDCP authentication
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
- Shall support front panel security lockout to prevent unauthorized use in non-secure environments
- Shall include LockIt® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL, PSE, RoHs, and WEEE
- Shall provide at least three years parts and labor warranty
- Shall be a switcher for HDMI video and embedded digital audio signals
- Approved device shall be the Extron SW4 HD 4K PLUS, part number 60-1604-01; no alternates or equals
SW4 HD 4K PLUS
- Shall provide switching of digital video and embedded digital audio signals that shall support four inputs and one output
- Shall be a switcher for HDMI video and embedded digital audio signals
- Shall support local device connection
- Shall support computer and video resolutions up to 4096x2160 at 60 Hz at 4:4:4 chroma sampling
- Shall support HDMI specifications including data rates up to 18 Gbps, HDR, 12-bit Deep Color, 3D, and HD lossless audio formats
- Video input requirements
- Shall provide four (4) female HDMI Type A connectors for digital video signals with embedded audio
- Shall provide automatic input cable equalization up to 25 feet (7.6 meters) for signals up to 4096x2160 at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Shall provide automatic input cable equalization up to 100 feet (30.4 meters) for signals up to 1080p at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Video output requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide automatic management of color bit depth based on the capabilities of the connected display, as reported by display EDID
- EDID requirements
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- User-selection of EDID from the connected display
- User-selection of EDID from pre-stored data files
- User upload of custom-generated EDID files
- Assignment of pre-stored, captured, or uploaded files
- Maintain continuous EDID communication with the connected sources
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
- Shall provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232 or USB connection
- Shall provide +5 VDC, 250 mA power on the output for an external peripheral device
- Control requirements
- Shall provide one (1) LAN port on rear panel for Ethernet control
- Shall provide one (1) 3.5 mm, three-pole captive screw RS-232 connector on rear panel for control
- Shall provide one (1) 3.5 mm, five-pole and one (1) 3.5 mm, four-pole captive screw connectors on rear panel for contact closure remote control with tally output
- Shall provide one (1) USB mini-B connector on front panel for setup, configuration, and firmware update loading
- Shall provide physical buttons on front panel for creating ties within the switcher
- Shall provide automatic switching that follows the most recently connected or highest-numbered input with an active connected source
- Shall support device setup and commissioning using Extron Product Configuration Software
- Power requirements
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall include an external, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- General requirements
- Shall be convection cooled and with vents on right and left sides, and rear panel
- Shall be housed in a 1U high, half EIA rack-width metal enclosure
- Shall be rack mountable with optional 1U rack shelf
- Shall be furniture mountable with optional mounting kits
- Shall provide visual signal on LED indicators located on front panel for auto-switch status, signal presence, and HDCP authentication
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
- Shall support front panel security lockout to prevent unauthorized use in non-secure environments
- Shall include LockIt® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL, PSE, RoHs, and WEEE
- Shall provide at least three years parts and labor warranty
- Shall be a switcher for HDMI video and embedded digital audio signals
- Approved device shall be the Extron SW4 HD 4K PLUS, part number 60-1604-01; no alternates or equals
SW6 HD 4K PLUS
- Shall provide switching of digital video and embedded digital audio signals that shall support six inputs and one output
- Shall be a switcher for HDMI video and embedded digital audio signals
- Shall support local device connection
- Shall support computer and video resolutions up to 4096x2160 at 60 Hz at 4:4:4 chroma sampling
- Shall support HDMI specifications including data rates up to 18 Gbps, HDR, 12-bit Deep Color, 3D, and HD lossless audio formats.
- Video input requirements
- Shall provide six (6) female HDMI Type A connectors for digital video signals with embedded audio
- Shall provide automatic input cable equalization up to 25 feet (7.6 meters) for signals up to 4096x2160 at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Shall provide automatic input cable equalization up to 100 feet (30.4 meters) for signals up to 1080p at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Video output requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide automatic management of color bit depth based on the capabilities of the connected display, as reported by display EDID
- EDID requirements
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- User-selection of EDID from the connected display
- User-selection of EDID from pre-stored data files
- User upload of custom-generated EDID files
- Assignment of pre-stored, captured, or uploaded files
- Maintain continuous EDID communication with the connected sources
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
- Shall provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232 or USB connection
- Shall provide +5 VDC, 250 mA power on the output for an external peripheral device
- Control requirements
- Shall provide one (1) LAN port on rear panel for Ethernet control
- Shall provide one (1) 3.5 mm, three-pole captive screw RS-232 connector on rear panel for control
- Shall provide six (6) 3.5 mm, three-pole captive screw connectors on rear panel for contact closure remote control with tally output and one (1) 3.5 mm, three-pole captive screw connector for +5VDC power
- Shall provide one (1) USB mini-B connector on front panel for setup, configuration, and firmware update loading
- Shall provide physical buttons on front panel for creating ties within the switcher
- Shall provide automatic switching that follows the most recently connected or highest-numbered input with an active connected source
- Shall support device setup and commissioning using Extron Product Configuration Software
- Power requirements
- Shall include an internal, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall include an internal, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- General requirements
- Shall be convection cooled and with vents on right and left sides, and top panel
- Shall be housed in a 1U high, full rack-width metal enclosure
- Shall be rack mountable with included brackets
- Shall be furniture mountable with optional mounting kits
- Shall provide visual signal on LED indicators located on front panel for auto-switch status, signal presence, and HDCP authentication
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
- Shall support front panel security lockout to prevent unauthorized use in non-secure environments
- Shall include LockIt® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL, PSE, RoHs, and WEEE
- Shall provide at least three years parts and labor warranty
- Shall be a switcher for HDMI video and embedded digital audio signals
- Approved device shall be the Extron SW6 HD 4K PLUS, part number 60-1605-01; no alternates or equals

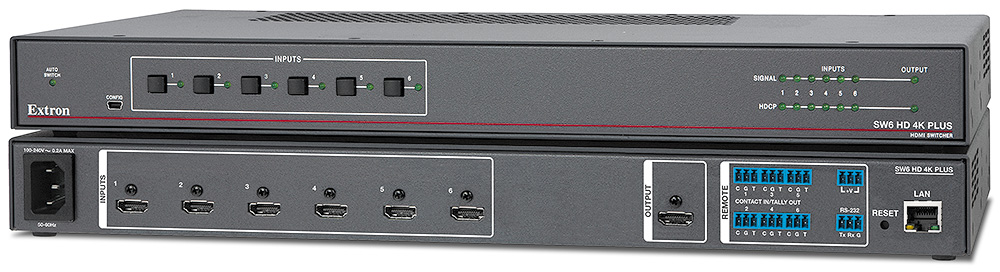

SW6 HD 4K PLUS
- Shall provide switching of digital video and embedded digital audio signals that shall support six inputs and one output
- Shall be a switcher for HDMI video and embedded digital audio signals
- Shall support local device connection
- Shall support computer and video resolutions up to 4096x2160 at 60 Hz at 4:4:4 chroma sampling
- Shall support HDMI specifications including data rates up to 18 Gbps, HDR, 12-bit Deep Color, 3D, and HD lossless audio formats.
- Video input requirements
- Shall provide six (6) female HDMI Type A connectors for digital video signals with embedded audio
- Shall provide automatic input cable equalization up to 25 feet (7.6 meters) for signals up to 4096x2160 at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Shall provide automatic input cable equalization up to 100 feet (30.4 meters) for signals up to 1080p at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Video output requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide automatic management of color bit depth based on the capabilities of the connected display, as reported by display EDID
- EDID requirements
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- User-selection of EDID from the connected display
- User-selection of EDID from pre-stored data files
- User upload of custom-generated EDID files
- Assignment of pre-stored, captured, or uploaded files
- Maintain continuous EDID communication with the connected sources
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
- Shall provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232 or USB connection
- Shall provide +5 VDC, 250 mA power on the output for an external peripheral device
- Control requirements
- Shall provide one (1) LAN port on rear panel for Ethernet control
- Shall provide one (1) 3.5 mm, three-pole captive screw RS-232 connector on rear panel for control
- Shall provide six (6) 3.5 mm, three-pole captive screw connectors on rear panel for contact closure remote control with tally output and one (1) 3.5 mm, three-pole captive screw connector for +5VDC power
- Shall provide one (1) USB mini-B connector on front panel for setup, configuration, and firmware update loading
- Shall provide physical buttons on front panel for creating ties within the switcher
- Shall provide automatic switching that follows the most recently connected or highest-numbered input with an active connected source
- Shall support device setup and commissioning using Extron Product Configuration Software
- Power requirements
- Shall include an internal, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall include an internal, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- General requirements
- Shall be convection cooled and with vents on right and left sides, and top panel
- Shall be housed in a 1U high, full rack-width metal enclosure
- Shall be rack mountable with included brackets
- Shall be furniture mountable with optional mounting kits
- Shall provide visual signal on LED indicators located on front panel for auto-switch status, signal presence, and HDCP authentication
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
- Shall support front panel security lockout to prevent unauthorized use in non-secure environments
- Shall include LockIt® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL, PSE, RoHs, and WEEE
- Shall provide at least three years parts and labor warranty
- Shall be a switcher for HDMI video and embedded digital audio signals
- Approved device shall be the Extron SW6 HD 4K PLUS, part number 60-1605-01; no alternates or equals

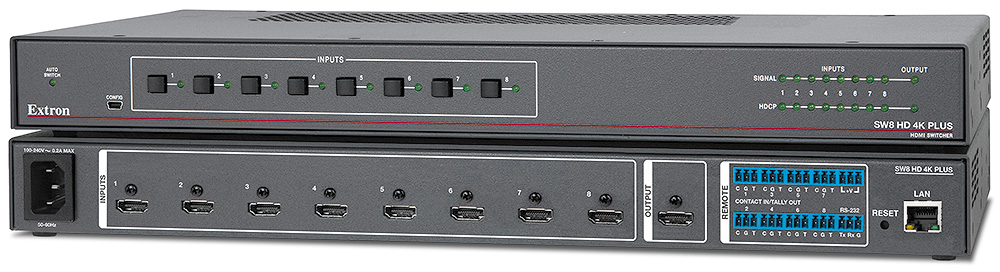

SW8 HD 4K PLUS
- Shall provide switching of digital video and embedded digital audio signals that shall support eight inputs and one output
- Shall be a switcher for HDMI video and embedded digital audio signals
- Shall support local device connection
- Shall support computer and video resolutions up to 4096x2160 at 60 Hz at 4:4:4 chroma sampling
- Shall support HDMI specifications including data rates up to 18 Gbps, HDR, 12-bit Deep Color, 3D, and HD lossless audio formats
- Video input requirements
- Shall provide eight (8) female HDMI Type A connectors for digital video signals with embedded audio
- Shall provide automatic input cable equalization up to 25 feet (7.6 meters) for signals up to 4096x2160 at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Shall provide automatic input cable equalization up to 100 feet (30.4 meters) for signals up to 1080p at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Video output requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide automatic management of color bit depth based on the capabilities of the connected display, as reported by display EDID
- EDID requirements
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- User-selection of EDID from the connected display
- User-selection of EDID from pre-stored data files
- User upload of custom-generated EDID files
- Assignment of pre-stored, captured, or uploaded files
- Maintain continuous EDID communication with the connected sources
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
- Shall provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232 or USB connection
- Shall provide +5 VDC, 250 mA power on the output for an external peripheral device
- Control requirements
- Shall provide one (1) LAN port on rear panel for Ethernet control
- Shall provide one (1) 3.5 mm, three-pole captive screw RS-232 connector on rear panel for control
- Shall provide eight (8) 3.5 mm, three-pole captive screw connectors on rear panel for contact closure remote control with tally output and one (1) 3.5 mm, three-pole captive screw connector for +5VDC power
- Shall provide one (1) USB mini-B connector on front panel for setup, configuration, and firmware update loading
- Shall provide physical buttons on front panel for creating ties within the switcher
- Shall provide automatic switching that follows the most recently connected or highest-numbered input with an active connected source
- Shall support device setup and commissioning using Extron Product Configuration Software
- Power requirements
- Shall include an internal, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall include an internal, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- General requirements
- Shall be convection cooled and with vents on right and left sides, and top panel
- Shall be housed in a 1U high, full rack-width metal enclosure
- Shall be rack mountable with included brackets
- Shall be furniture mountable with optional mounting kits
- Shall provide visual signal on LED indicators located on front panel for auto-switch status, signal presence, and HDCP authentication
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
- Shall support front panel security lockout to prevent unauthorized use in non-secure environments
- Shall include LockIt® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL, PSE, RoHs, and WEEE
- Shall provide at least three years parts and labor warranty
- Shall be a switcher for HDMI video and embedded digital audio signals
- Approved device shall be the Extron SW8 HD 4K PLUS, part number 60-1606-01; no alternates or equals
SW8 HD 4K PLUS
- Shall provide switching of digital video and embedded digital audio signals that shall support eight inputs and one output
- Shall be a switcher for HDMI video and embedded digital audio signals
- Shall support local device connection
- Shall support computer and video resolutions up to 4096x2160 at 60 Hz at 4:4:4 chroma sampling
- Shall support HDMI specifications including data rates up to 18 Gbps, HDR, 12-bit Deep Color, 3D, and HD lossless audio formats
- Video input requirements
- Shall provide eight (8) female HDMI Type A connectors for digital video signals with embedded audio
- Shall provide automatic input cable equalization up to 25 feet (7.6 meters) for signals up to 4096x2160 at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Shall provide automatic input cable equalization up to 100 feet (30.4 meters) for signals up to 1080p at 60 Hz with 8-bit color depth when used with Extron HDMI Pro cables
- Video output requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide automatic management of color bit depth based on the capabilities of the connected display, as reported by display EDID
- EDID requirements
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- User-selection of EDID from the connected display
- User-selection of EDID from pre-stored data files
- User upload of custom-generated EDID files
- Assignment of pre-stored, captured, or uploaded files
- Maintain continuous EDID communication with the connected sources
- Shall include Extron EDID Minder® technology for automatic management of EDID communication between connected devices
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
- Shall provide a full green screen signal for visual confirmation when encrypted content is routed to a non-HDCP compliant display
- Shall provide real-time verification of HDCP status for each HDMI input and output
- Electronically accessible over Ethernet, RS-232 or USB connection
- Shall provide +5 VDC, 250 mA power on the output for an external peripheral device
- Control requirements
- Shall provide one (1) LAN port on rear panel for Ethernet control
- Shall provide one (1) 3.5 mm, three-pole captive screw RS-232 connector on rear panel for control
- Shall provide eight (8) 3.5 mm, three-pole captive screw connectors on rear panel for contact closure remote control with tally output and one (1) 3.5 mm, three-pole captive screw connector for +5VDC power
- Shall provide one (1) USB mini-B connector on front panel for setup, configuration, and firmware update loading
- Shall provide physical buttons on front panel for creating ties within the switcher
- Shall provide automatic switching that follows the most recently connected or highest-numbered input with an active connected source
- Shall support device setup and commissioning using Extron Product Configuration Software
- Power requirements
- Shall include an internal, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- High demonstrated reliability
- Worldwide power compatibility
- Shall include an internal, universal AC power supply supporting 100-240 VAC, 50/60 Hz power
- General requirements
- Shall be convection cooled and with vents on right and left sides, and top panel
- Shall be housed in a 1U high, full rack-width metal enclosure
- Shall be rack mountable with included brackets
- Shall be furniture mountable with optional mounting kits
- Shall provide visual signal on LED indicators located on front panel for auto-switch status, signal presence, and HDCP authentication
- Shall provide automatic reformatting of HDMI source signals when routed to a DVI display
- Shall support front panel security lockout to prevent unauthorized use in non-secure environments
- Shall include LockIt® HDMI cable lacing brackets
- Shall meet regulatory compliance
- CE, c-UL, UL, PSE, RoHs, and WEEE
- Shall provide at least three years parts and labor warranty
- Shall be a switcher for HDMI video and embedded digital audio signals
- Approved device shall be the Extron SW8 HD 4K PLUS, part number 60-1606-01; no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
