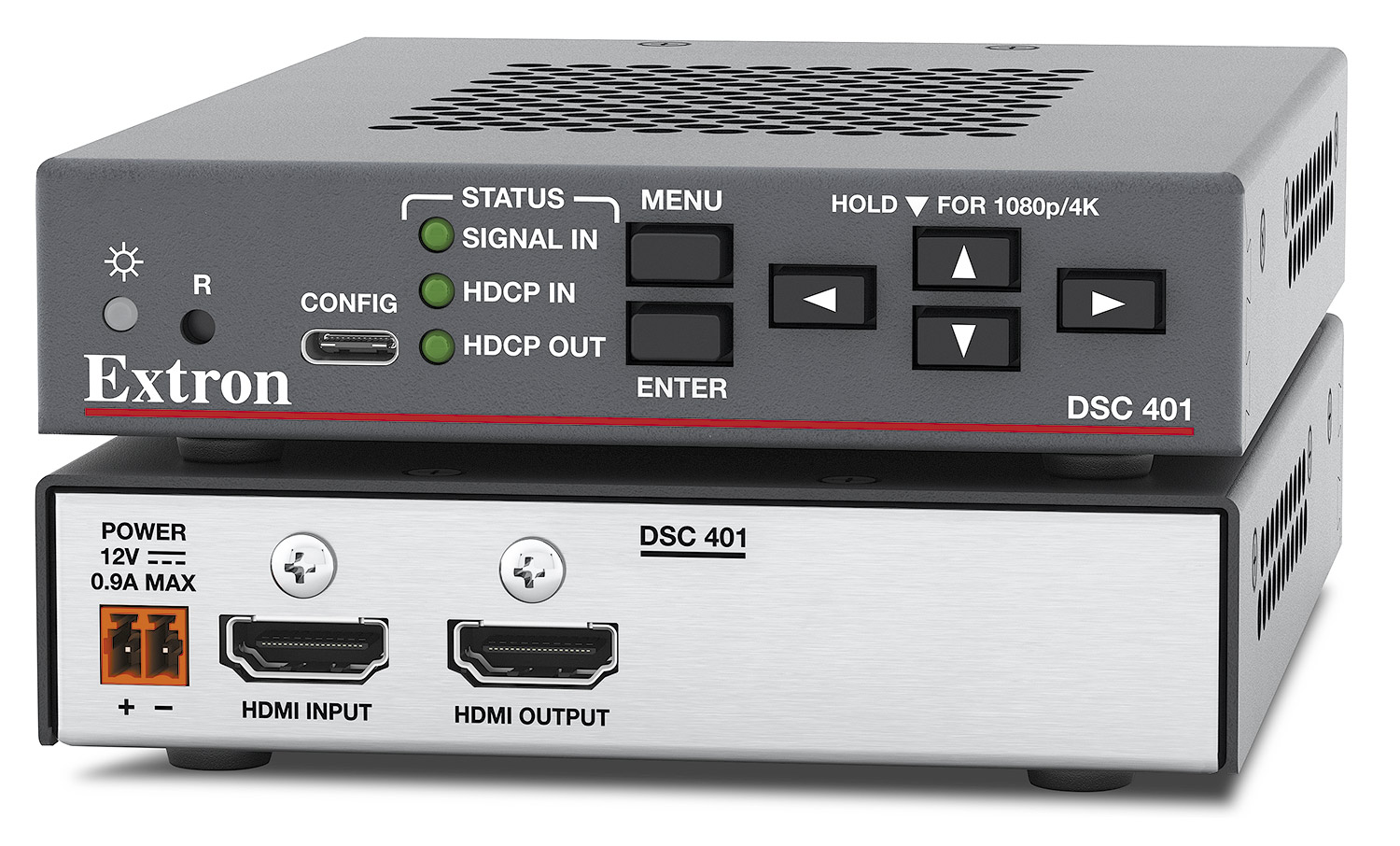

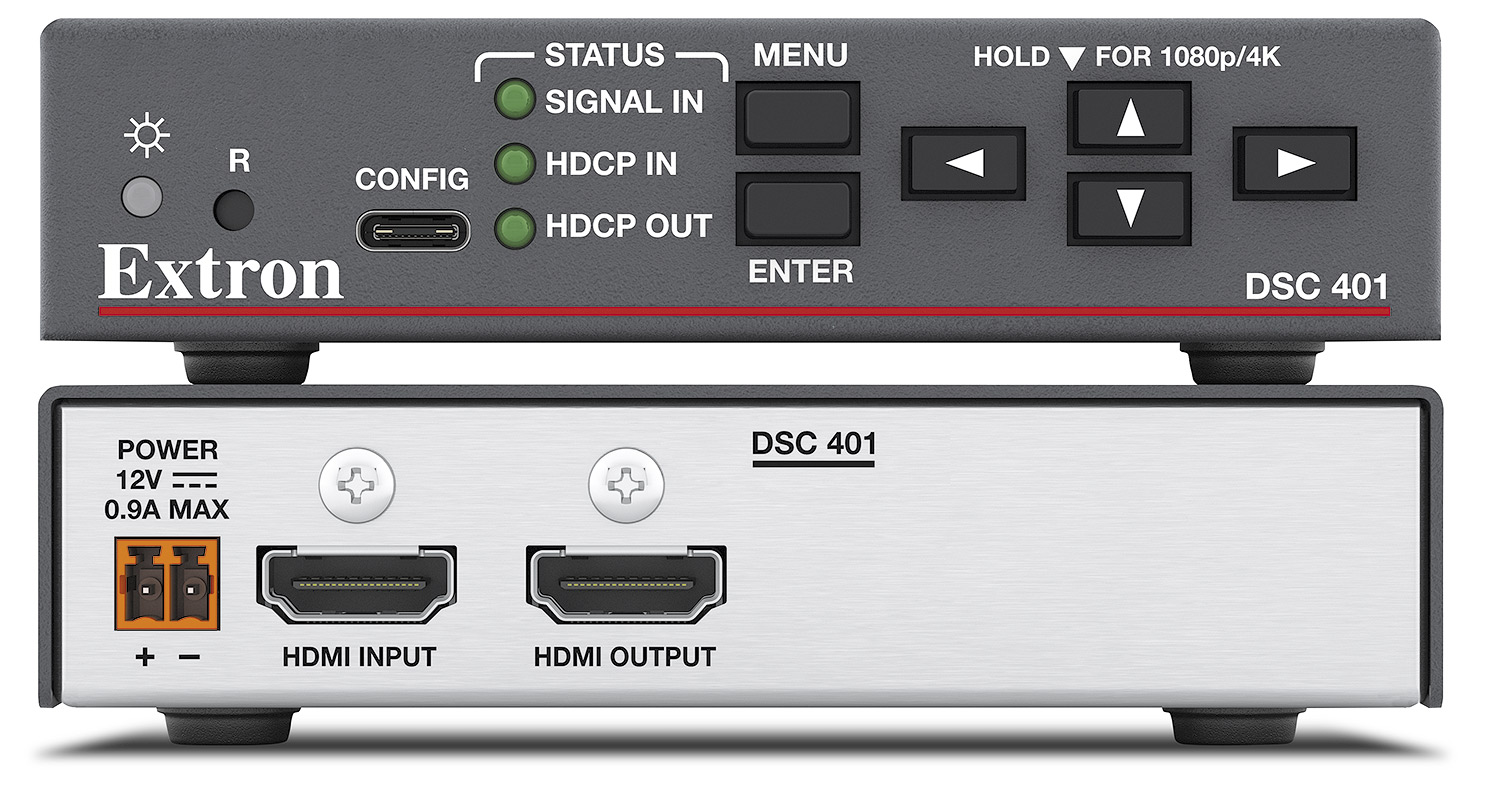

DSC 401
- Provide a video scaler that shall support up to 4K @ 60 Hz over one input and one output, for processing and converting between HDMI video resolutions and frame rates
- Rack-mountable scaler for HDMI video sources
- Video Input Requirements
- Shall provide one (1) female HDMI Type A connector
- Shall accept HDMI video from 480i up to 4096x2160 @ 60 Hz with 4:4:4 color
- Shall support HDMI 2.0 specification features
- Data rates up to 18 Gbps
- Deep Color up to 12 bits per color
- Embedded HD lossless audio formats
- Shall provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- Shall provide image adjustments for H/V sizing and positioning
- Shall provide signal reclocking for incoming HDMI signals
- Video Output Requirements
- Shall provide one (1) female HDMI Type A connector
- Shall provide a range of selectable video output rates from 640x480 to 4096x2160 @ 60 Hz with 4:4:4 color sampling
- Shall support custom user-defined output resolutions via EDID management
- Shall provide image scaling and video format conversion with 30-bit precision processing and 4:4:4 color bandwidth
- Shall provide motion-adaptive deinterlacing for signals up to 1080i
- Shall provide aspect ratio control
- When in FILL mode, the video image on the output screen shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image on the output screen shall always preserve the original aspect ratio of the input signals
- Shall provide selectable image scaling bypass
- Shall provide internal video test patterns for calibration and setup
- Crop
- Alternating Pixels
- Crosshatch
- Color Bars
- Grayscale (32 level)
- Shall support automatic muting of video and sync output when no video input signal is present
- Option to generate a blue screen or a black screen before disabling sync
- Configurable timeout period before disabling sync
- Selectively enable or disable automatic muting of sync output
- Shall provide a low power standby state selectable via USB
- Shall support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Shall provide seamless presentation of signals sourced from upstream devices
- EDID Requirements
- Shall provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to the HDMI input connection
- Shall provide automatic EDID management between connected devices
- HDCP Requirements
- Shall be HDCP 2.3-compliant
- Option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Selection of human-readable visual confirmation of HDCP compliance when encrypted content is sent to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Shall provide real-time verification of HDCP status for the HDMI input and HDMI output
- Electronically accessible over Ethernet or USB connection
- LED indicators on the front panel
- Shall be HDCP 2.3-compliant
- Audio Requirements
- Shall provide audio input connections
- One (1) female HDMI Type A connector, embedded
- Shall provide audio output connections
- One (1) female HDMI Type A connector, embedded
- Shall provide a delay in the audio output to match the corresponding video processing delay
- Shall support muting of the embedded HDMI audio input and output
- Shall provide audio input connections
- Control Requirements
- Shall provide one (1) USB-C® port on front panel
- Shall provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Product configuration software connected via USB
- USB connection for setup, configuration, and firmware updates only
- Shall support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- General Requirements
- Shall provide real-time verification of video, HDCP, and power presence
- Directly readable using front panel LEDs
- Enclosure shall be metal, rack-mountable, quarter rack width, and 1” (2.5 cm) in height
- Shall be equipped with external 100-240 VAC, 50/60 Hz universal power supply
- Seven (7) year warranty for parts and labor on power supply
- Shall include HDMI cable lacing brackets
- Shall meet regulatory compliances
- CE, c-UL, and UL
- EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Appropriate requirements of RoHS and WEEE
- Shall provide three (3) year parts and labor warranty
- Shall provide real-time verification of video, HDCP, and power presence
- Approved device shall be the Extron DSC 401 (part number 60-1878-01); no alternates or equals
DSC 401
- Provide a video scaler that shall support up to 4K @ 60 Hz over one input and one output, for processing and converting between HDMI video resolutions and frame rates
- Rack-mountable scaler for HDMI video sources
- Video Input Requirements
- Shall provide one (1) female HDMI Type A connector
- Shall accept HDMI video from 480i up to 4096x2160 @ 60 Hz with 4:4:4 color
- Shall support HDMI 2.0 specification features
- Data rates up to 18 Gbps
- Deep Color up to 12 bits per color
- Embedded HD lossless audio formats
- Shall provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- Shall provide image adjustments for H/V sizing and positioning
- Shall provide signal reclocking for incoming HDMI signals
- Video Output Requirements
- Shall provide one (1) female HDMI Type A connector
- Shall provide a range of selectable video output rates from 640x480 to 4096x2160 @ 60 Hz with 4:4:4 color sampling
- Shall support custom user-defined output resolutions via EDID management
- Shall provide image scaling and video format conversion with 30-bit precision processing and 4:4:4 color bandwidth
- Shall provide motion-adaptive deinterlacing for signals up to 1080i
- Shall provide aspect ratio control
- When in FILL mode, the video image on the output screen shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image on the output screen shall always preserve the original aspect ratio of the input signals
- Shall provide selectable image scaling bypass
- Shall provide internal video test patterns for calibration and setup
- Crop
- Alternating Pixels
- Crosshatch
- Color Bars
- Grayscale (32 level)
- Shall support automatic muting of video and sync output when no video input signal is present
- Option to generate a blue screen or a black screen before disabling sync
- Configurable timeout period before disabling sync
- Selectively enable or disable automatic muting of sync output
- Shall provide a low power standby state selectable via USB
- Shall support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Shall provide seamless presentation of signals sourced from upstream devices
- EDID Requirements
- Shall provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to the HDMI input connection
- Shall provide automatic EDID management between connected devices
- HDCP Requirements
- Shall be HDCP 2.3-compliant
- Option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Selection of human-readable visual confirmation of HDCP compliance when encrypted content is sent to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When disabled, the output shall be muted
- Shall provide real-time verification of HDCP status for the HDMI input and HDMI output
- Electronically accessible over Ethernet or USB connection
- LED indicators on the front panel
- Shall be HDCP 2.3-compliant
- Audio Requirements
- Shall provide audio input connections
- One (1) female HDMI Type A connector, embedded
- Shall provide audio output connections
- One (1) female HDMI Type A connector, embedded
- Shall provide a delay in the audio output to match the corresponding video processing delay
- Shall support muting of the embedded HDMI audio input and output
- Shall provide audio input connections
- Control Requirements
- Shall provide one (1) USB-C® port on front panel
- Shall provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Product configuration software connected via USB
- USB connection for setup, configuration, and firmware updates only
- Shall support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- General Requirements
- Shall provide real-time verification of video, HDCP, and power presence
- Directly readable using front panel LEDs
- Enclosure shall be metal, rack-mountable, quarter rack width, and 1” (2.5 cm) in height
- Shall be equipped with external 100-240 VAC, 50/60 Hz universal power supply
- Seven (7) year warranty for parts and labor on power supply
- Shall include HDMI cable lacing brackets
- Shall meet regulatory compliances
- CE, c-UL, and UL
- EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Appropriate requirements of RoHS and WEEE
- Shall provide three (3) year parts and labor warranty
- Shall provide real-time verification of video, HDCP, and power presence
- Approved device shall be the Extron DSC 401 (part number 60-1878-01); no alternates or equals

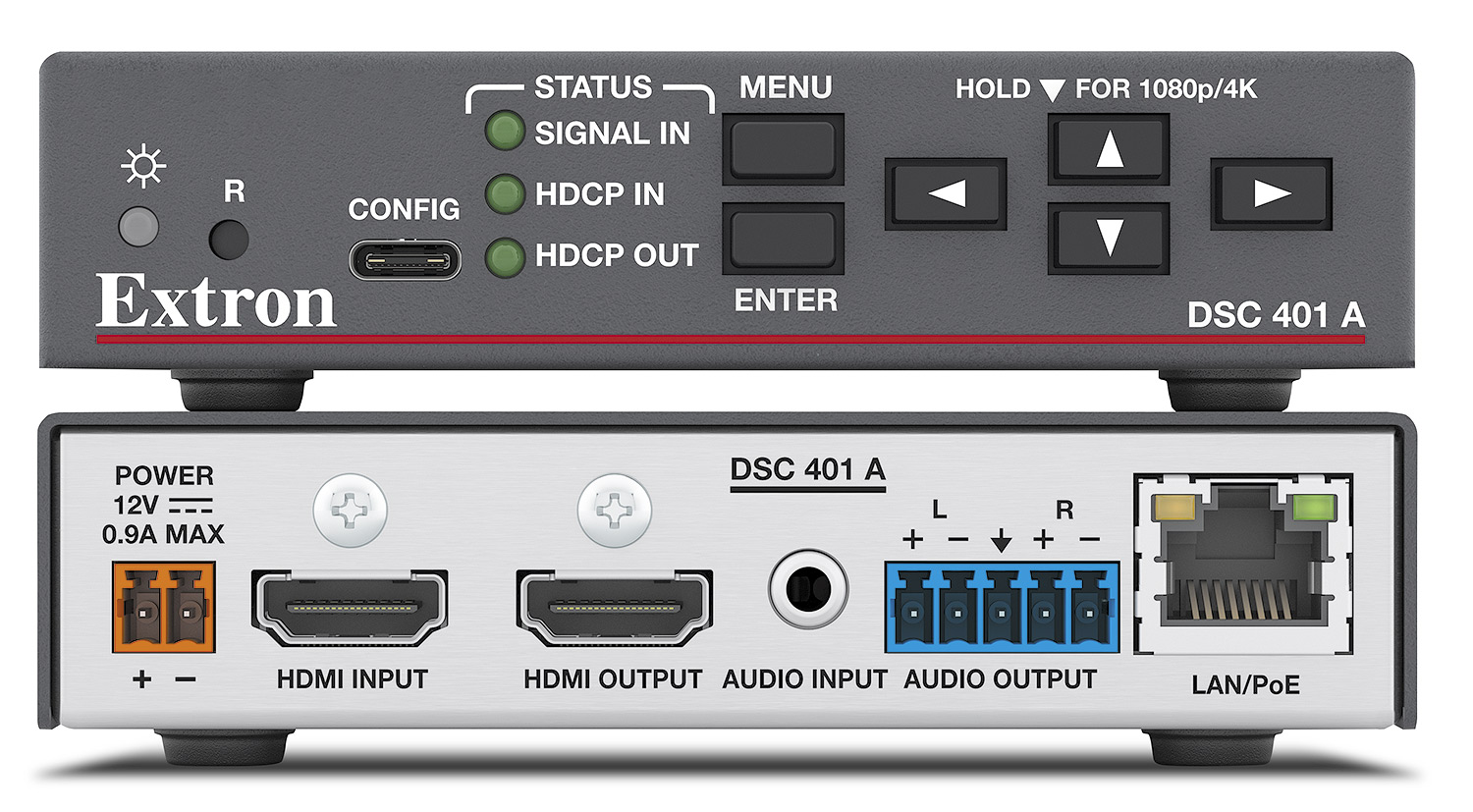

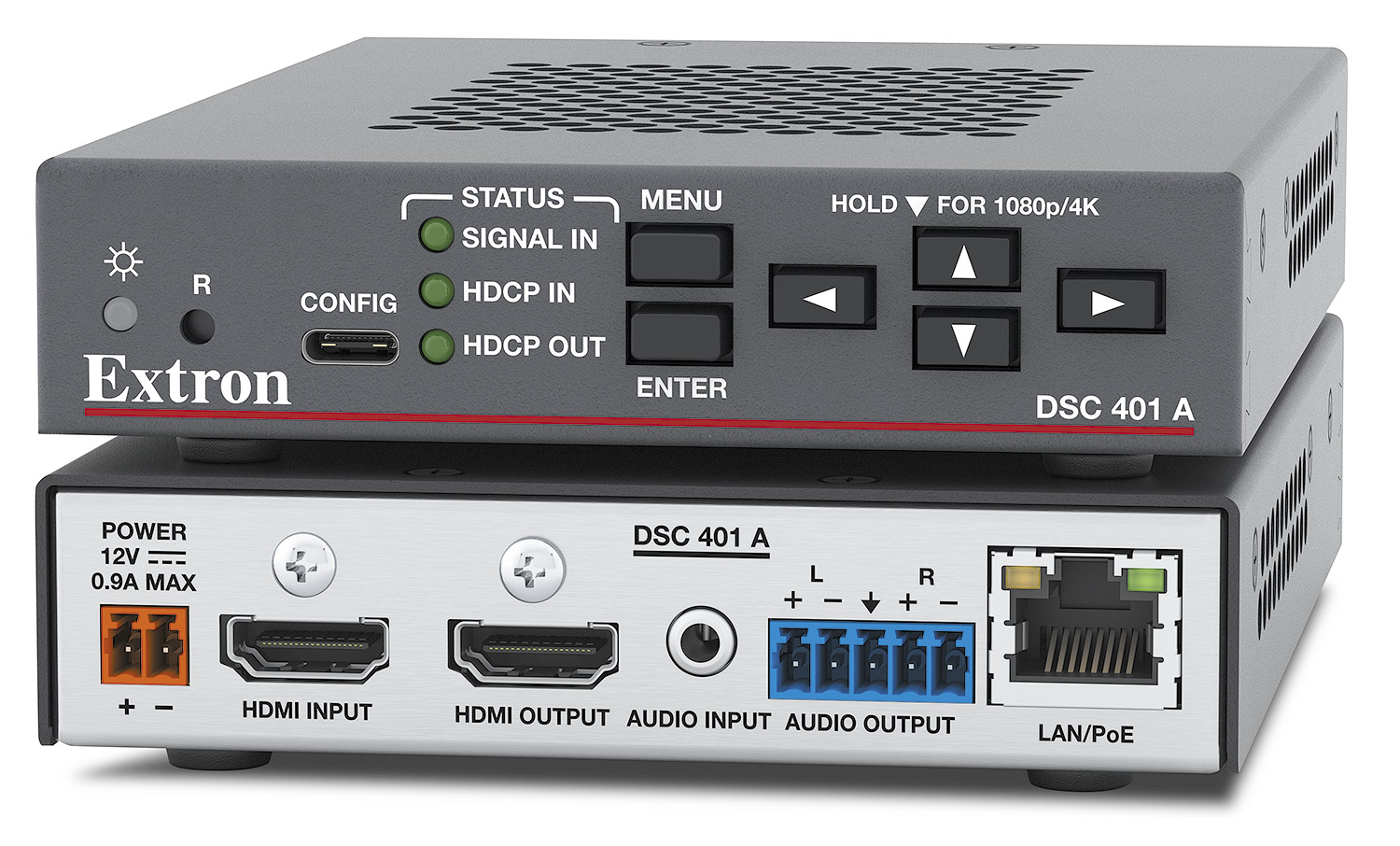

DSC 401 A
- Provide a video scaler that shall support up to 4K @ 60 Hz over one input and one output, for processing and converting between HDMI video resolutions and frame rates
- Rack-mountable scaler for HDMI video sources and associated digital and analog audio
- Video Input Requirements
- Shall provide one (1) female HDMI Type A connector
- Shall accept HDMI video from 480i up to 4096x2160 @ 60 Hz with 4:4:4 color sampling
- Shall support HDMI 2.0 specification features
- Data rates up to 18 Gbps
- Deep Color up to 12 bits per color
- HD lossless audio formats
- Shall provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- Shall provide image adjustments for H/V sizing and positioning
- Shall provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- Selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via RS-232, Ethernet, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via RS-232, Ethernet, or USB connection
- Automatic memories for each video input
- Shall provide automatic 3:2 and 2:2 pulldown detection
- Shall provide signal reclocking for incoming HDMI signals
- Video Output Requirements
- Shall provide one (1) female HDMI Type A connector
- Shall provide a range of selectable video output rates from 640x480 to 4096x2160 @ 60 Hz with 4:4:4 color sampling
- Shall support custom user-defined output resolutions via EDID management
- Shall provide image scaling and video format conversion with 30-bit precision processing and 4:4:4 color bandwidth
- Shall provide motion-adaptive deinterlacing for signals up to 1080i
- Shall provide aspect ratio control
- When in FILL mode, the video image on the output screen shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image on the output screen shall always preserve the original aspect ratio of the input signals
- Shall provide selectable image scaling bypass
- Shall support locking of the output frame rate to the frame rate of the input
- Shall provide internal test patterns for calibration and setup
- Crop
- Alternating Pixels
- Crosshatch
- Color Bars
- Grayscale (32 level)
- Audio Test (Pink Noise)
- Shall support image freeze via Ethernet or USB connection
- Shall support upload and placement of a custom logo graphic at any position on the video output
- Logo placement as a foreground image
- Logo graphics in BMP, GIF, JPG, PNG, or TIFF format
- Displaying full screen images up to 4096x2160 resolution
- Up to 16 logo presets
- Keying with selectable effects including transparency, color key, level key, and alpha key
- Shall support automatic muting of video and sync output when no video input signal is present
- Option to generate a blue screen or a black screen, or display a user-provided image file, before disabling sync
- Configurable timeout period before disabling sync
- Selectively enable or disable automatic muting of sync output
- Shall provide a low power standby state selectable via Ethernet or USB
- Shall support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Shall provide seamless presentation of signals sourced from upstream devices
- EDID Requirements
- Shall provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to the HDMI input connection
- Shall provide automatic EDID management between connected devices
- HDCP Requirements
- Shall be HDCP 2.3-compliant
- Option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Selection of human-readable visual confirmation of HDCP compliance when encrypted content is sent to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When enabled, the option shall be provided to display a user-provided image in place of the green video output
- When disabled, the output shall be muted
- Shall provide real-time verification of HDCP status for the HDMI input and HDMI output
- Electronically accessible over Ethernet or USB connection
- LED indicators on the front panel
- Shall be HDCP 2.3-compliant
- Audio Requirements
- Shall provide audio input connections
- One (1) female HDMI Type A connector, embedded
- One (1) 3.5 mm connector for analog balanced/unbalanced line level two-channel audio, with gain and attenuation control
- Shall provide audio output connections
- One (1) female HDMI Type A connector, embedded
- One (1) 5-pole captive screw connector for analog balanced/unbalanced line level two-channel audio
- Both audio outputs to provide output volume control and be configurable for stereo or dual mono
- Shall support embedding of audio signals from the analog stereo input onto the HDMI signal stream
- Shall support extraction of HDMI two-channel PCM audio signals to the analog stereo output, or pass multi-channel and bitstream audio to the HDMI output
- Shall provide a delay in the audio output to match the corresponding video processing delay
- Shall support individual muting of the analog and embedded HDMI audio inputs, and analog and HDMI audio outputs
- Shall provide audio input connections
- Control Requirements
- Shall provide control connections
- RJ-45: 10/100/1000Base-T Ethernet
- USB-C® port on front panel
- Shall provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet
- USB connection for setup, configuration, and firmware updates only
- Shall support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Shall provide control connections
- General Requirements
- Shall provide real-time verification of video, HDCP, and audio presence plus power
- Directly readable on front panel LEDs
- Enclosure shall be rack-mountable, metal, quarter rack width, and 1” (2.5 cm) in height
- Shall include HDMI cable lacing brackets
- Shall be equipped with external 100-240 VAC, 50/60 Hz universal power supply
- Seven (7) year parts and labor warranty on power supply
- Shall meet regulatory compliances
- CE, c-UL, and UL
- EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Appropriate requirements of RoHS and WEEE
- Shall provide three (3) year parts and labor warranty
- Shall provide real-time verification of video, HDCP, and audio presence plus power
- Approved device shall be the Extron DSC 401 A (part number 60-1878-02); no alternates or equals

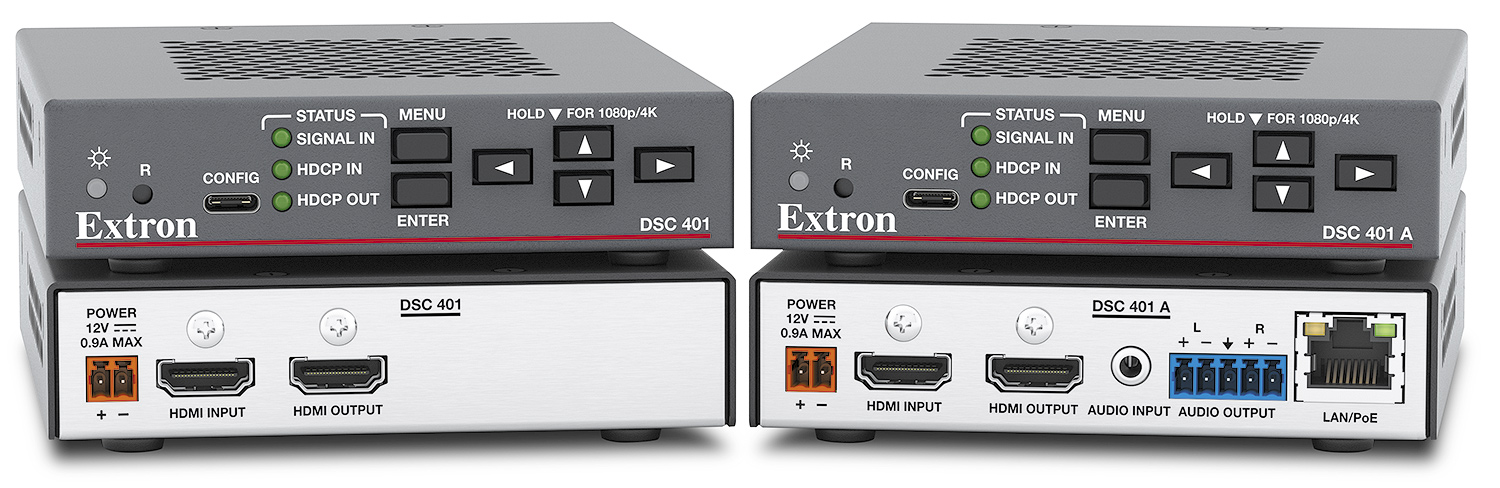

DSC 401 A
- Provide a video scaler that shall support up to 4K @ 60 Hz over one input and one output, for processing and converting between HDMI video resolutions and frame rates
- Rack-mountable scaler for HDMI video sources and associated digital and analog audio
- Video Input Requirements
- Shall provide one (1) female HDMI Type A connector
- Shall accept HDMI video from 480i up to 4096x2160 @ 60 Hz with 4:4:4 color sampling
- Shall support HDMI 2.0 specification features
- Data rates up to 18 Gbps
- Deep Color up to 12 bits per color
- HD lossless audio formats
- Shall provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- Shall provide image adjustments for H/V sizing and positioning
- Shall provide storage and recall of video parameters and picture settings
- Automatic memories for each video input
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- Selectively enable or disable automatic memories
- Manual user presets
- Save picture adjustments
- User presets may be saved and recalled using front panel controls
- User presets may be saved and recalled electronically via RS-232, Ethernet, or USB connection
- Manual input presets
- Save video settings and picture adjustments
- Input presets may be saved and recalled electronically via RS-232, Ethernet, or USB connection
- Automatic memories for each video input
- Shall provide automatic 3:2 and 2:2 pulldown detection
- Shall provide signal reclocking for incoming HDMI signals
- Video Output Requirements
- Shall provide one (1) female HDMI Type A connector
- Shall provide a range of selectable video output rates from 640x480 to 4096x2160 @ 60 Hz with 4:4:4 color sampling
- Shall support custom user-defined output resolutions via EDID management
- Shall provide image scaling and video format conversion with 30-bit precision processing and 4:4:4 color bandwidth
- Shall provide motion-adaptive deinterlacing for signals up to 1080i
- Shall provide aspect ratio control
- When in FILL mode, the video image on the output screen shall always fill the output screen without letterbox or pillarbox
- When in FOLLOW mode, the video image on the output screen shall always preserve the original aspect ratio of the input signals
- Shall provide selectable image scaling bypass
- Shall support locking of the output frame rate to the frame rate of the input
- Shall provide internal test patterns for calibration and setup
- Crop
- Alternating Pixels
- Crosshatch
- Color Bars
- Grayscale (32 level)
- Audio Test (Pink Noise)
- Shall support image freeze via Ethernet or USB connection
- Shall support upload and placement of a custom logo graphic at any position on the video output
- Logo placement as a foreground image
- Logo graphics in BMP, GIF, JPG, PNG, or TIFF format
- Displaying full screen images up to 4096x2160 resolution
- Up to 16 logo presets
- Keying with selectable effects including transparency, color key, level key, and alpha key
- Shall support automatic muting of video and sync output when no video input signal is present
- Option to generate a blue screen or a black screen, or display a user-provided image file, before disabling sync
- Configurable timeout period before disabling sync
- Selectively enable or disable automatic muting of sync output
- Shall provide a low power standby state selectable via Ethernet or USB
- Shall support the connection of DVI displays that do not recognize HDMI-specific formats
- Automatically enable or disable embedded TMDS audio and InfoFrames
- Automatically set the correct color space
- Shall provide seamless presentation of signals sourced from upstream devices
- EDID Requirements
- Shall provide automatic EDID management between connected devices
- Provide a set of pre-stored EDID files
- Support capture of EDID from any connected display
- Support user uploading of custom-generated EDID files
- Support assignment of any pre-stored, captured, or custom uploaded EDID file to the HDMI input connection
- Shall provide automatic EDID management between connected devices
- HDCP Requirements
- Shall be HDCP 2.3-compliant
- Option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Selection of human-readable visual confirmation of HDCP compliance when encrypted content is sent to a non-HDCP compliant display
- When enabled, the video output shall be a solid green color and an on-screen message stating “HDCP CONTENT” shall be displayed
- When enabled, the option shall be provided to display a user-provided image in place of the green video output
- When disabled, the output shall be muted
- Shall provide real-time verification of HDCP status for the HDMI input and HDMI output
- Electronically accessible over Ethernet or USB connection
- LED indicators on the front panel
- Shall be HDCP 2.3-compliant
- Audio Requirements
- Shall provide audio input connections
- One (1) female HDMI Type A connector, embedded
- One (1) 3.5 mm connector for analog balanced/unbalanced line level two-channel audio, with gain and attenuation control
- Shall provide audio output connections
- One (1) female HDMI Type A connector, embedded
- One (1) 5-pole captive screw connector for analog balanced/unbalanced line level two-channel audio
- Both audio outputs to provide output volume control and be configurable for stereo or dual mono
- Shall support embedding of audio signals from the analog stereo input onto the HDMI signal stream
- Shall support extraction of HDMI two-channel PCM audio signals to the analog stereo output, or pass multi-channel and bitstream audio to the HDMI output
- Shall provide a delay in the audio output to match the corresponding video processing delay
- Shall support individual muting of the analog and embedded HDMI audio inputs, and analog and HDMI audio outputs
- Shall provide audio input connections
- Control Requirements
- Shall provide control connections
- RJ-45: 10/100/1000Base-T Ethernet
- USB-C® port on front panel
- Shall provide alternatives for configuration and operation
- On-screen menus navigated using front panel controls
- Product configuration software connected via Ethernet or USB
- Serial commands sent over Ethernet
- USB connection for setup, configuration, and firmware updates only
- Shall support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
- Shall provide control connections
- General Requirements
- Shall provide real-time verification of video, HDCP, and audio presence plus power
- Directly readable on front panel LEDs
- Enclosure shall be rack-mountable, metal, quarter rack width, and 1” (2.5 cm) in height
- Shall include HDMI cable lacing brackets
- Shall be equipped with external 100-240 VAC, 50/60 Hz universal power supply
- Seven (7) year parts and labor warranty on power supply
- Shall meet regulatory compliances
- CE, c-UL, and UL
- EMI/EMC compliances under CE, C-tick, FCC Class A, ICES, and VCCI
- Appropriate requirements of RoHS and WEEE
- Shall provide three (3) year parts and labor warranty
- Shall provide real-time verification of video, HDCP, and audio presence plus power
- Approved device shall be the Extron DSC 401 A (part number 60-1878-02); no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
