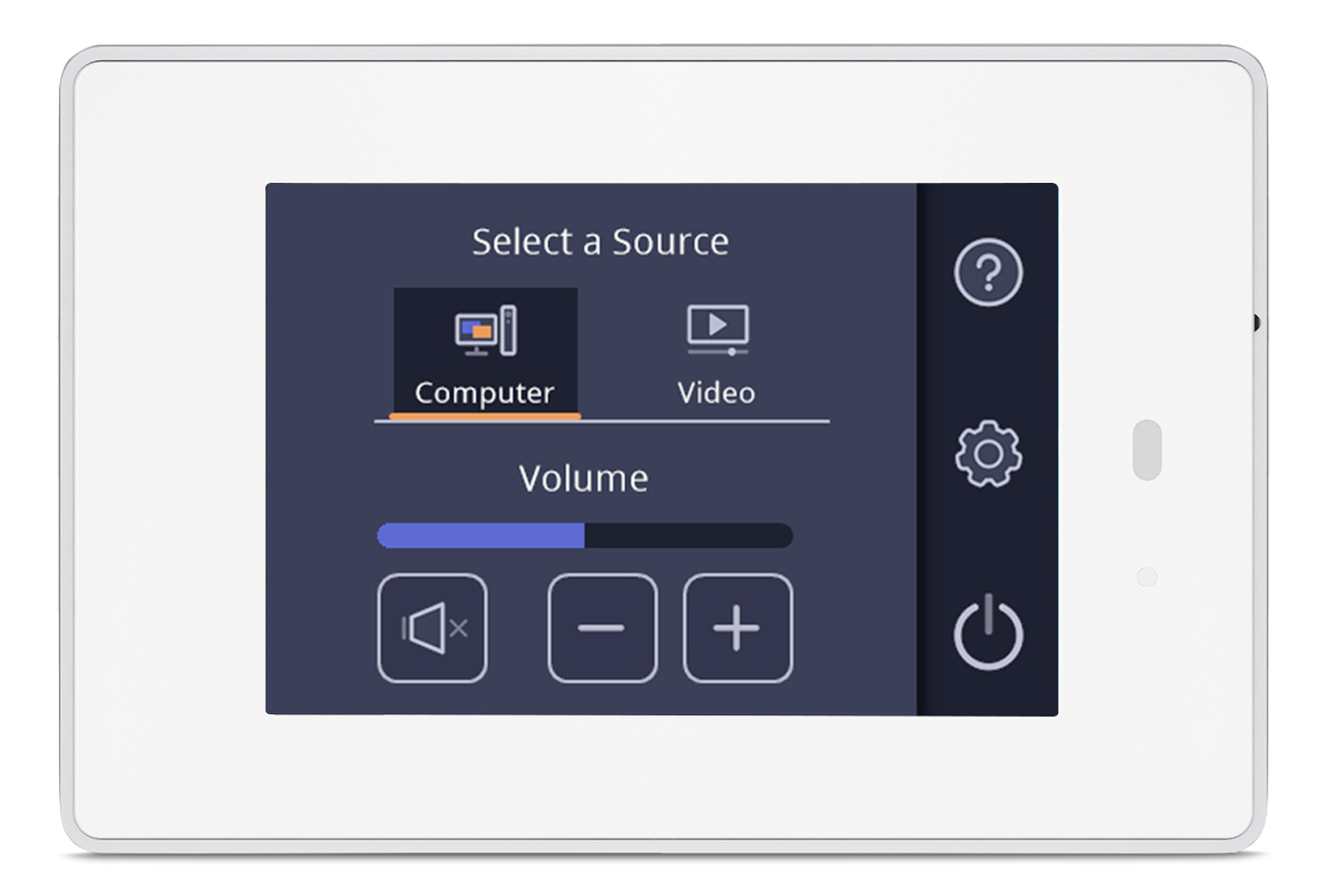

TLP Pro 300M
- Provide a 3.5" wall mount capacitive touchscreen interface for switching and control of AV equipment
- Wall mountable 3.5" touchscreen user interface for AV and control systems
- Provide a 3.5" LCD touchscreen that supports up to 262k colors and 320x480 resolution.

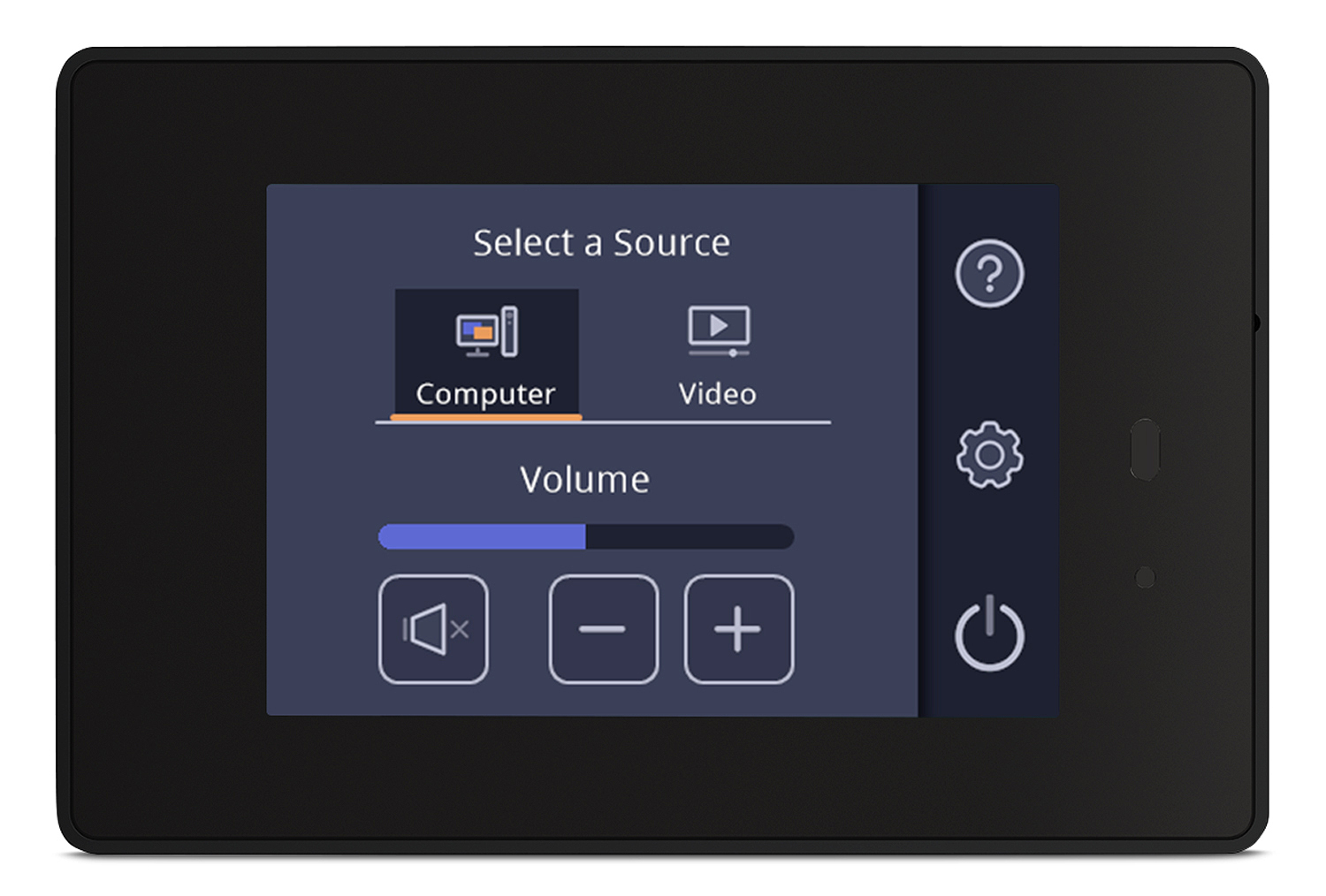

- Device shall be able to be mounted in either landscape or portrait orientations.
- Device shall feature scratch and smudge-resistant Corning® Gorilla Glass®.
- Device shall support Extron IP Link Pro control processors and HC 400 Series systems.
- Device shall include one mono speaker which can be configured to provide audio and button feedback.

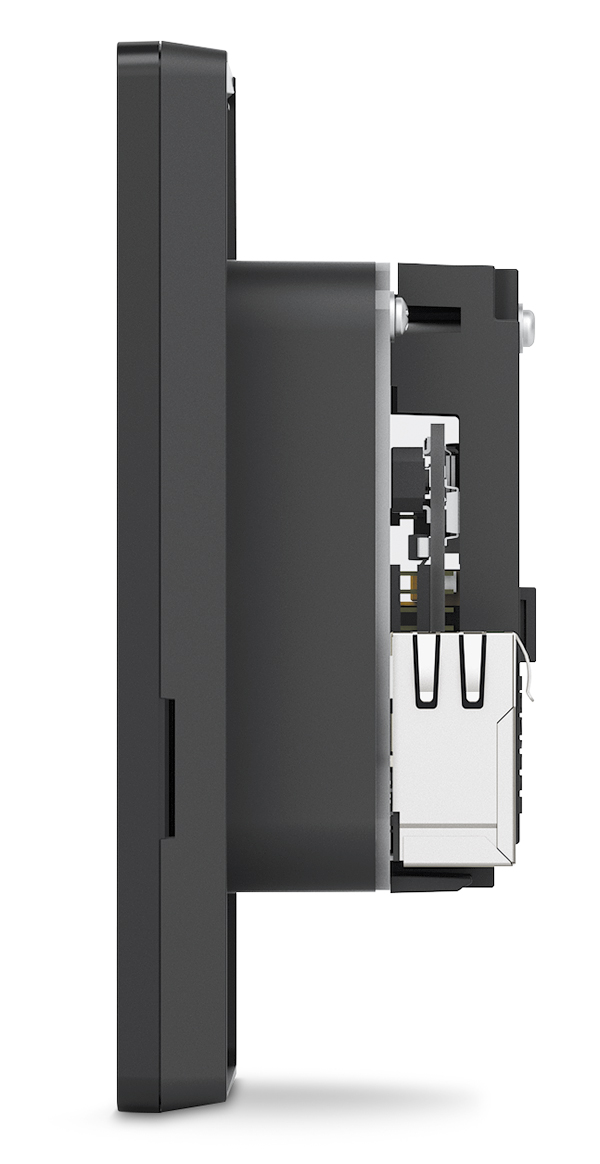

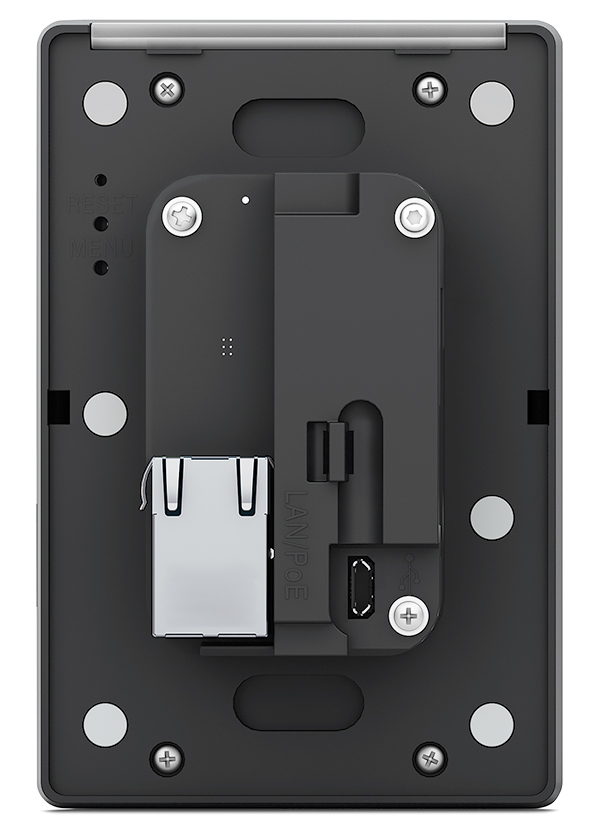

- Device shall have a female RJ-45 jack located on the back of the enclosure that supports 10/100Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues as well as supports PoE- Power over Ethernet, 802.3af.
- Device shall include a single micro-USB 2.0 type B receptacle located on the back of the enclosure.
- Provide one red/green LED along the top of the display to indicate room status.
- Provide a built-in motion sensor located on the top bezel of the touch surface allowing the panel to be woken from a sleep state or set up via software to trigger any number of actions.
- Provide a light sensor located on the top bezel of the touch surface that automatically adjusts the LCD screen’s backlight based on available ambient light.
- Device shall have a menu button located on the back for the setup of items such as IP address and sound volume at minimum
- Device shall include a multi-function button located on the back of the enclosure that allows for the reset of the device or its communication properties at minimum.

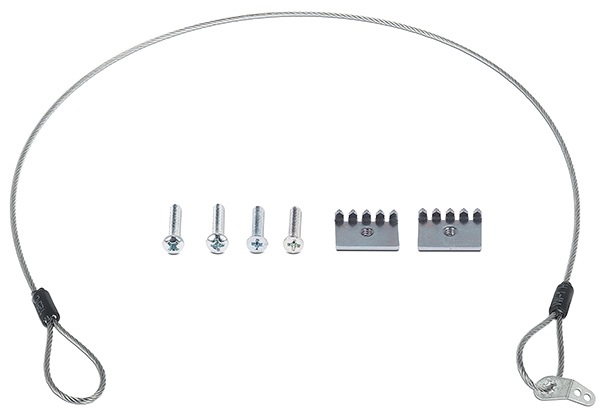

- Device shall include a secure tether kit.
- Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP.
- Device shall have the following memory available, at minimum:
- SDRAM
- 1 GB
- Flash
- 8 GB
- SDRAM
- Device shall have the ability to be controlled by an HTML5 and JavaScript enabled web browser, or an iOS or Android based device as a secondary point of control.

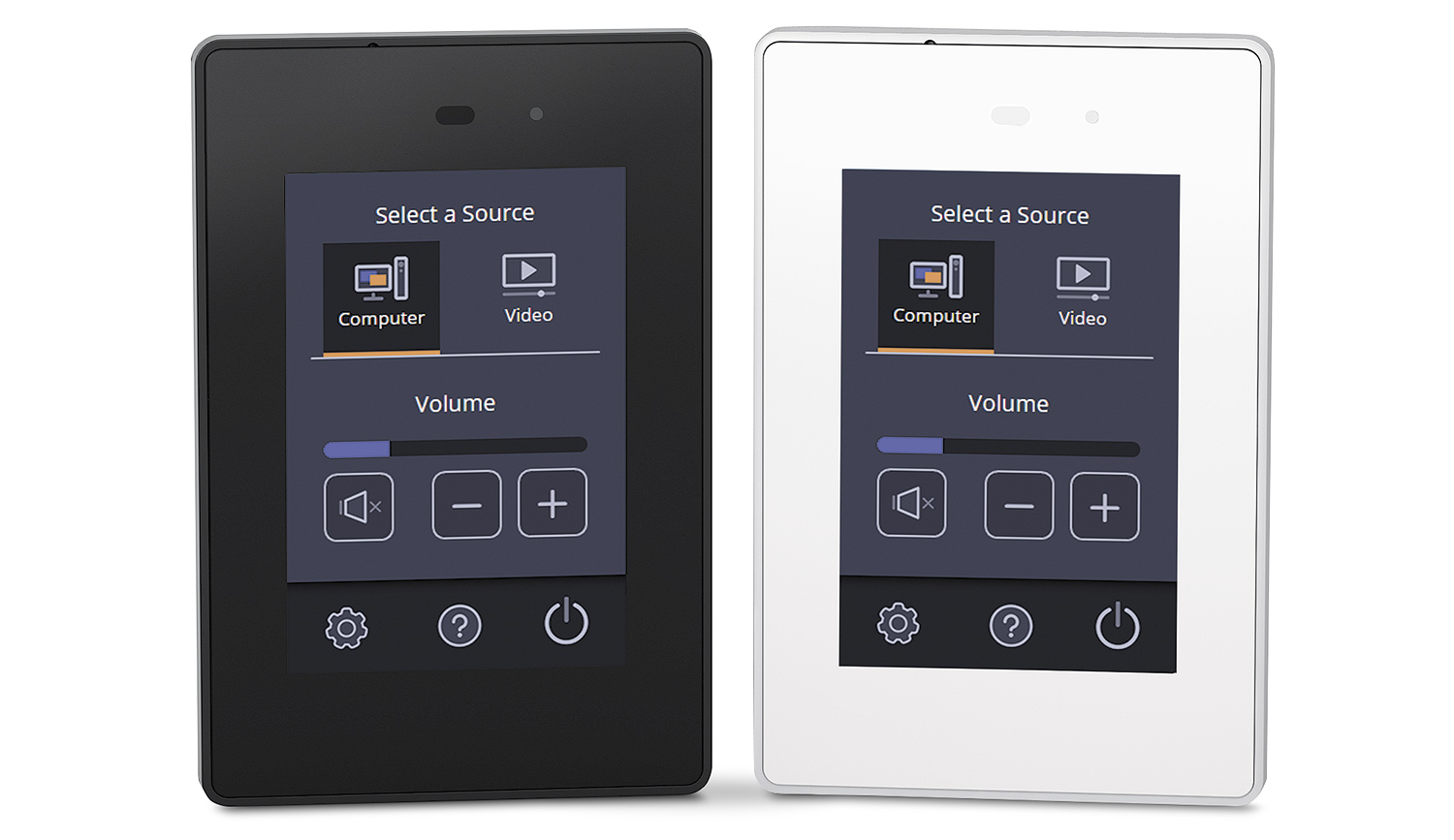

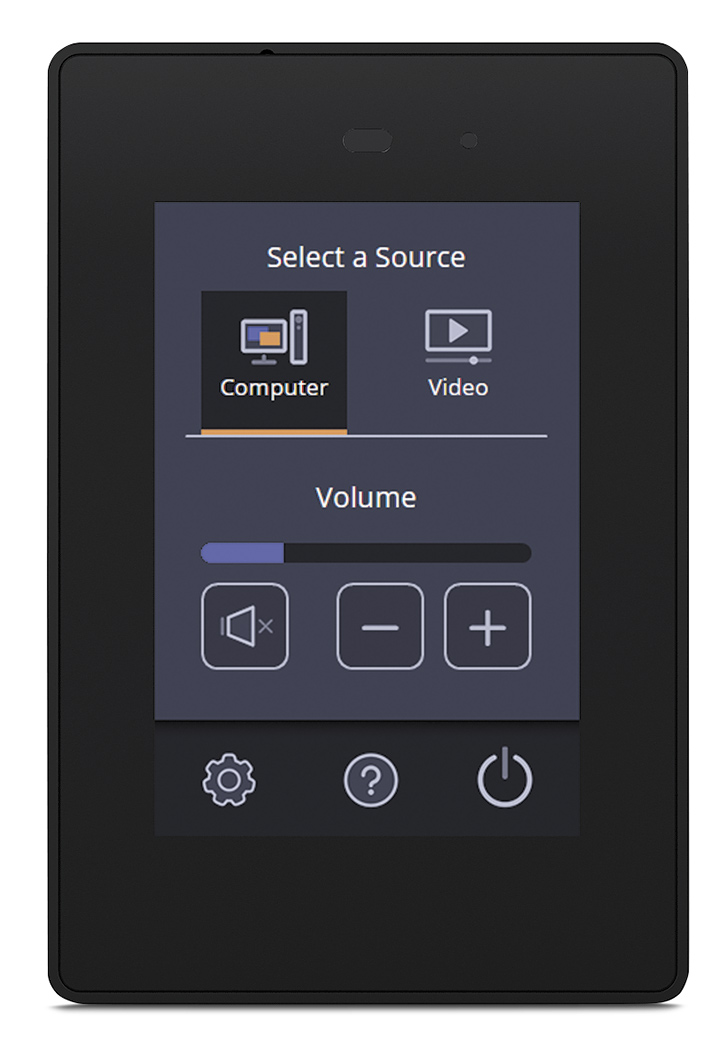

- Device shall be black in color.
- Device shall support the addition of an Extron LinkLicense® for TLP Control Processor that allows for:
- IPCP Pro xi Series control processor capabilities
- Enables Ethernet control of AV devices directly from the touchpanel
- Works with an optional TLCA 1 TouchLink Control Port Expansion Adapter to add traditional control ports
- Mounting requirements

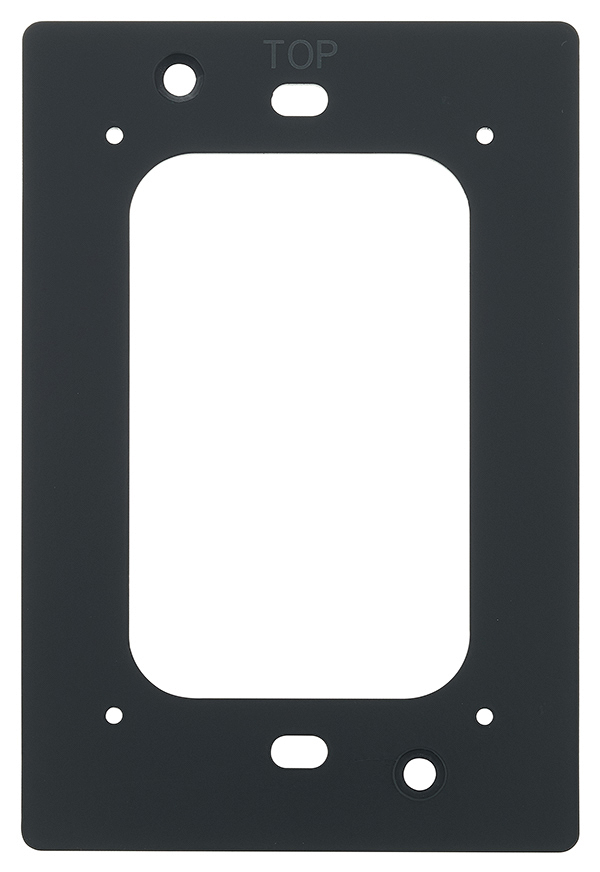

- Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface and shall be able to be secured to a 1-gang US junction box using the included mounting plate.
- Software requirements
- User interface shall be created using Extron’s GUI Designer software.
- The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Global Scripter respectively.
- Shall be configured or programmed by an Extron authorized user.
- The device’s configuration and settings shall be managed using Extron’s Toolbelt software.
- Security requirements
- Device shall support SFTP and SSH for secure communication between the control processor and TouchLink Pro touchpanel.
- Device shall support SFTP and SSH for secure communication between the control processor and the configuration or programming software.
- Device shall provide the option to modify administrator and user credentials.
- Device shall support security updates to maintain network health.
- Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity.
- Device shall support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services.
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class B
- ICES
- VCCI
- RoHS
- WEEE
- Product Warranty
- Shall provide at least 3 years parts and labor.
- Shall provide 1-year touchscreen and overlay components.
- Approved device shall be the Extron TLP Pro 300M, part number 60-1667-02; no alternates or equals
- Wall mountable 3.5" touchscreen user interface for AV and control systems
TLP Pro 300M
- Provide a 3.5" wall mount capacitive touchscreen interface for switching and control of AV equipment
- Wall mountable 3.5" touchscreen user interface for AV and control systems
- Provide a 3.5" LCD touchscreen that supports up to 262k colors and 320x480 resolution.
- Device shall be able to be mounted in either landscape or portrait orientations.
- Device shall feature scratch and smudge-resistant Corning® Gorilla Glass®.
- Device shall support Extron IP Link Pro control processors and HC 400 Series systems.
- Device shall include one mono speaker which can be configured to provide audio and button feedback.
- Device shall have a female RJ-45 jack located on the back of the enclosure that supports 10/100Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues as well as supports PoE- Power over Ethernet, 802.3af.
- Device shall include a single micro-USB 2.0 type B receptacle located on the back of the enclosure.
- Provide one red/green LED along the top of the display to indicate room status.
- Provide a built-in motion sensor located on the top bezel of the touch surface allowing the panel to be woken from a sleep state or set up via software to trigger any number of actions.
- Provide a light sensor located on the top bezel of the touch surface that automatically adjusts the LCD screen’s backlight based on available ambient light.
- Device shall have a menu button located on the back for the setup of items such as IP address and sound volume at minimum
- Device shall include a multi-function button located on the back of the enclosure that allows for the reset of the device or its communication properties at minimum.
- Device shall include a secure tether kit.
- Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP.
- Device shall have the following memory available, at minimum:
- SDRAM
- 1 GB
- Flash
- 8 GB
- SDRAM
- Device shall have the ability to be controlled by an HTML5 and JavaScript enabled web browser, or an iOS or Android based device as a secondary point of control.
- Device shall be black in color.
- Device shall support the addition of an Extron LinkLicense® for TLP Control Processor that allows for:
- IPCP Pro xi Series control processor capabilities
- Enables Ethernet control of AV devices directly from the touchpanel
- Works with an optional TLCA 1 TouchLink Control Port Expansion Adapter to add traditional control ports
- Mounting requirements
- Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface and shall be able to be secured to a 1-gang US junction box using the included mounting plate.
- Software requirements
- User interface shall be created using Extron’s GUI Designer software.
- The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Global Scripter respectively.
- Shall be configured or programmed by an Extron authorized user.
- The device’s configuration and settings shall be managed using Extron’s Toolbelt software.
- Security requirements
- Device shall support SFTP and SSH for secure communication between the control processor and TouchLink Pro touchpanel.
- Device shall support SFTP and SSH for secure communication between the control processor and the configuration or programming software.
- Device shall provide the option to modify administrator and user credentials.
- Device shall support security updates to maintain network health.
- Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity.
- Device shall support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services.
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class B
- ICES
- VCCI
- RoHS
- WEEE
- Product Warranty
- Shall provide at least 3 years parts and labor.
- Shall provide 1-year touchscreen and overlay components.
- Approved device shall be the Extron TLP Pro 300M, part number 60-1667-02; no alternates or equals
- Wall mountable 3.5" touchscreen user interface for AV and control systems
TLP Pro 300M
- Provide a 3.5" wall mount capacitive touchscreen interface for switching and control of AV equipment
- Wall mountable 3.5" touchscreen user interface for AV and control systems
- Provide a 3.5" LCD touchscreen that supports up to 262k colors and 320x480 resolution.
- Device shall be able to be mounted in either landscape or portrait orientations.
- Device shall feature scratch and smudge-resistant Corning® Gorilla Glass®.
- Device shall support Extron IP Link Pro control processors and HC 400 Series systems.
- Device shall include one mono speaker which can be configured to provide audio and button feedback.
- Device shall have a female RJ-45 jack located on the back of the enclosure that supports 10/100Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues as well as supports PoE- Power over Ethernet, 802.3af.
- Device shall include a single micro-USB 2.0 type B receptacle located on the back of the enclosure.
- Provide one red/green LED along the top of the display to indicate room status.
- Provide a built-in motion sensor located on the top bezel of the touch surface allowing the panel to be woken from a sleep state or set up via software to trigger any number of actions.
- Provide a light sensor located on the top bezel of the touch surface that automatically adjusts the LCD screen’s backlight based on available ambient light.
- Device shall have a menu button located on the back for the setup of items such as IP address and sound volume at minimum
- Device shall include a multi-function button located on the back of the enclosure that allows for the reset of the device or its communication properties at minimum.
- Device shall include a secure tether kit.
- Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP.
- Device shall have the following memory available, at minimum:
- SDRAM
- 1 GB
- Flash
- 8 GB
- SDRAM
- Device shall have the ability to be controlled by an HTML5 and JavaScript enabled web browser, or an iOS or Android based device as a secondary point of control.

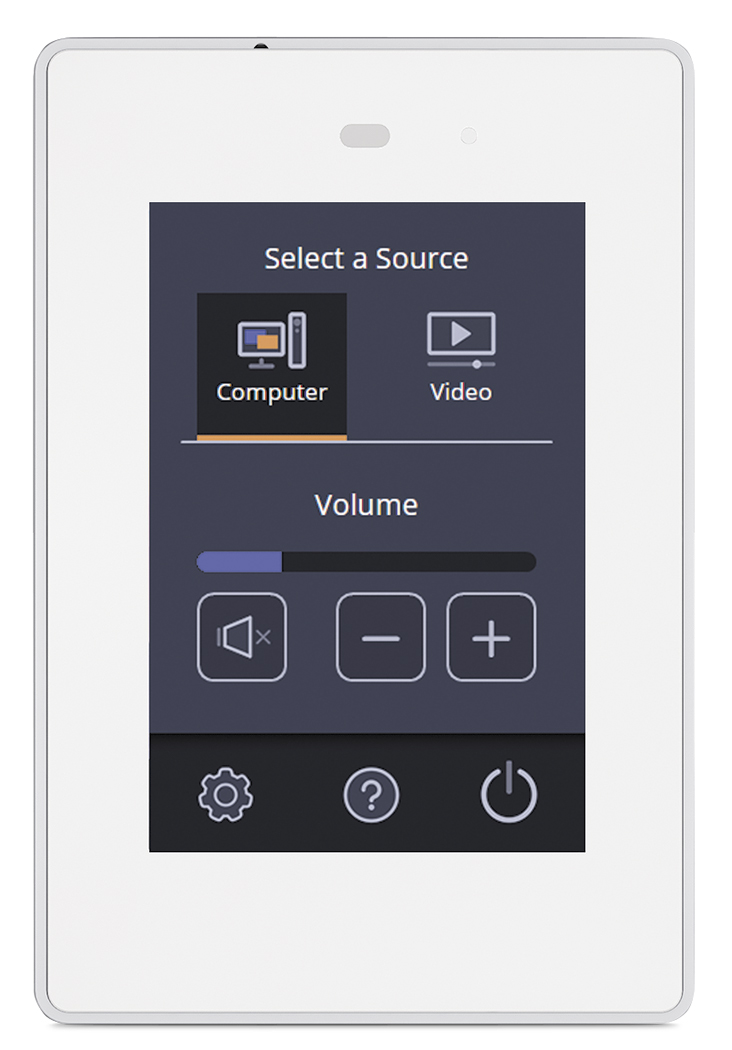

- Device shall be white in color.
- Device shall support the addition of an Extron LinkLicense® for TLP Control Processor that allows for:
- IPCP Pro xi Series control processor capabilities
- Enables Ethernet control of AV devices directly from the touchpanel
- Works with an optional TLCA 1 TouchLink Control Port Expansion Adapter to add traditional control ports
- Mounting requirements
- Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface and shall be able to be secured to a 1-gang US junction box using the included mounting plate.
- Software requirements
- User interface shall be created using Extron’s GUI Designer software.
- The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Global Scripter respectively.
- Shall be configured or programmed by an Extron authorized user.
- The device’s configuration and settings shall be managed using Extron’s Toolbelt software.
- Security requirements
- Device shall support SFTP and SSH for secure communication between the control processor and TouchLink Pro touchpanel.
- Device shall support SFTP and SSH for secure communication between the control processor and the configuration or programming software.
- Device shall provide the option to modify administrator and user credentials.
- Device shall support security updates to maintain network health.
- Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity.
- Device shall support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services.
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class B
- ICES
- VCCI
- RoHS
- WEEE
- Product Warranty
- Shall provide at least 3 years parts and labor.
- Shall provide 1-year touchscreen and overlay components.
- Approved device shall be the Extron TLP Pro 300M, part number 60-1667-03; no alternates or equals
- Wall mountable 3.5" touchscreen user interface for AV and control systems
TLP Pro 300M
- Provide a 3.5" wall mount capacitive touchscreen interface for switching and control of AV equipment
- Wall mountable 3.5" touchscreen user interface for AV and control systems
- Provide a 3.5" LCD touchscreen that supports up to 262k colors and 320x480 resolution.
- Device shall be able to be mounted in either landscape or portrait orientations.
- Device shall feature scratch and smudge-resistant Corning® Gorilla Glass®.
- Device shall support Extron IP Link Pro control processors and HC 400 Series systems.
- Device shall include one mono speaker which can be configured to provide audio and button feedback.
- Device shall have a female RJ-45 jack located on the back of the enclosure that supports 10/100Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues as well as supports PoE- Power over Ethernet, 802.3af.
- Device shall include a single micro-USB 2.0 type B receptacle located on the back of the enclosure.
- Provide one red/green LED along the top of the display to indicate room status.
- Provide a built-in motion sensor located on the top bezel of the touch surface allowing the panel to be woken from a sleep state or set up via software to trigger any number of actions.
- Provide a light sensor located on the top bezel of the touch surface that automatically adjusts the LCD screen’s backlight based on available ambient light.
- Device shall have a menu button located on the back for the setup of items such as IP address and sound volume at minimum
- Device shall include a multi-function button located on the back of the enclosure that allows for the reset of the device or its communication properties at minimum.
- Device shall include a secure tether kit.
- Device shall support the following protocols: DHCP, DNS, HTTP, HTTPS, ICMP, SFTP, SSH, TCP/IP, UDP/IP.
- Device shall have the following memory available, at minimum:
- SDRAM
- 1 GB
- Flash
- 8 GB
- SDRAM
- Device shall have the ability to be controlled by an HTML5 and JavaScript enabled web browser, or an iOS or Android based device as a secondary point of control.
- Device shall be white in color.
- Device shall support the addition of an Extron LinkLicense® for TLP Control Processor that allows for:
- IPCP Pro xi Series control processor capabilities
- Enables Ethernet control of AV devices directly from the touchpanel
- Works with an optional TLCA 1 TouchLink Control Port Expansion Adapter to add traditional control ports
- Mounting requirements
- Device shall have the ability to be mounted directly in a wall, lectern, or other flat surface and shall be able to be secured to a 1-gang US junction box using the included mounting plate.
- Software requirements
- User interface shall be created using Extron’s GUI Designer software.
- The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Global Scripter respectively.
- Shall be configured or programmed by an Extron authorized user.
- The device’s configuration and settings shall be managed using Extron’s Toolbelt software.
- Security requirements
- Device shall support SFTP and SSH for secure communication between the control processor and TouchLink Pro touchpanel.
- Device shall support SFTP and SSH for secure communication between the control processor and the configuration or programming software.
- Device shall provide the option to modify administrator and user credentials.
- Device shall support security updates to maintain network health.
- Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity.
- Device shall support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services.
- Shall meet regulatory compliances
- CE
- c-UL
- UL
- C-Tick
- FCC Class B
- ICES
- VCCI
- RoHS
- WEEE
- Product Warranty
- Shall provide at least 3 years parts and labor.
- Shall provide 1-year touchscreen and overlay components.
- Approved device shall be the Extron TLP Pro 300M, part number 60-1667-03; no alternates or equals
- Wall mountable 3.5" touchscreen user interface for AV and control systems
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
