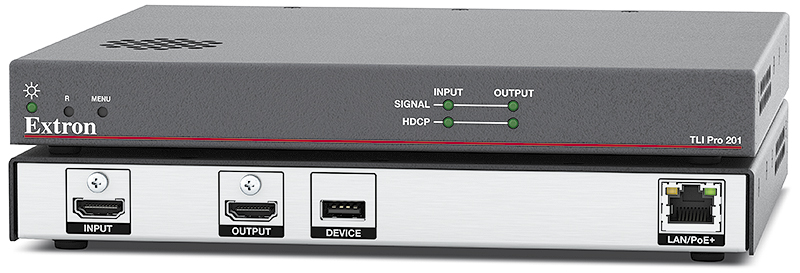

TLI Pro 201
- Provide an Ethernet enabled interface for interfacing 4K third party touchscreens in conjunction with all Extron IP Link Pro control processors and HC 400 Series Meeting Space Collaboration Systems
- Ethernet-enabled interface
- Device shall support displays from 640x480 to 4096x2160, as well as HDTV 1080p/60 and 4K/30 at 4:4:4.
- Device shall support both Extron IP Link Pro control processors and HC 400 Series Meeting Space Collaboration Systems.
- Device shall have a female HDMI port located on the back of the enclosure labeled as an input that supports HDCP 2.2-compliant video sources.
- Device shall have a second female HDMI port located on the back of the enclosure labeled as an output that supports HDCP compliant scaled video to be displayed on a third-party touchscreen.
- Device shall have single USB 3.0 type A connector located on the back of the enclosure that supports both touch data from either a third-party touchscreen or connection to a HID compliant device.
- Device shall have a female RJ-45 jack located on the back of the enclosure that supports 10/100/1000Base-T, half/full duplex with auto-detect for connection to a LAN or WAN and includes link and activity LED indicators located on the left and right of the jack for troubleshooting network issues as well as supports PoE+ - Power over Ethernet, 802.3at.
- Device shall support the following protocols: ICMP (ping), IEEE 802.1X, IPv4, TCP, UDP, DHCP, DNS, HTTP, HTTPS, SFTP, SMTP, SNMP, SSH.
- Device shall include a multi-function button located on the front of enclosure that allows for the reset of the device or its communication properties at minimum.
- Device shall have multiple LED indicators located on the front of the enclosure for power status, input and output signal and HDCP status.
- Device shall have a menu button located on the front of the enclosure that provides access to an onscreen menu for setup of items such as IP address at minimum.
- Device shall have at least 16GB nonvolatile user memory.
- Device shall have the ability to be controlled by an HTML5 and JavaScript or Silverlight enabled web browser, or an iOS or Android based device as a secondary point of control.
- Mounting requirements
- Shall have a 1” (2.5 cm) high, half rack width metal enclosure.
- Shall be rack mountable with optional rack shelf.
- Shall be furniture or wall mountable with optional mounting kits.
- Software requirements
- User interface shall be created using Extron’s GUI Designer software.
- The device may only be configured or programmed using Extron’s Global Configurator Plus or Professional, or Global Scripter respectively.
- Shall be configured or programmed by an Extron authorized user.
- The device’s configuration and settings shall be managed using Extron’s Toolbelt software.
- Security requirements
- Device shall support SFTP and SSH for secure communication between the control processor and TouchLink Pro interface.
- Device shall support SFTP and SSH for secure communication between the TouchLink Pro interface and the configuration or programming software.
- Device shall provide the option to modify administrator and user credentials.
- Device shall support security updates to maintain network health
- Device shall require that a Secure Socket Layer (SSL) Certificate is installed to maintain system confidentiality and data integrity.
- Device shall support the installation of an owner furnished certificate with the following properties:
- Certificates shall include x.509 support
- Certificates shall include public / private key exchange
- Certificates shall support PEM encoding
- Extron shall furnish documentation that describes all supported network ports and services.
- Shall meet regulatory compliances
- CE
- UL
- c-UL
- C-Tick
- FCC Class A
- ICES
- VCCI
- Product Warranty
- Shall provide at least 3 years parts and labor.
- Approved device shall be the Extron TLI Pro 201, part number 60-1669-01; no alternates or equals
