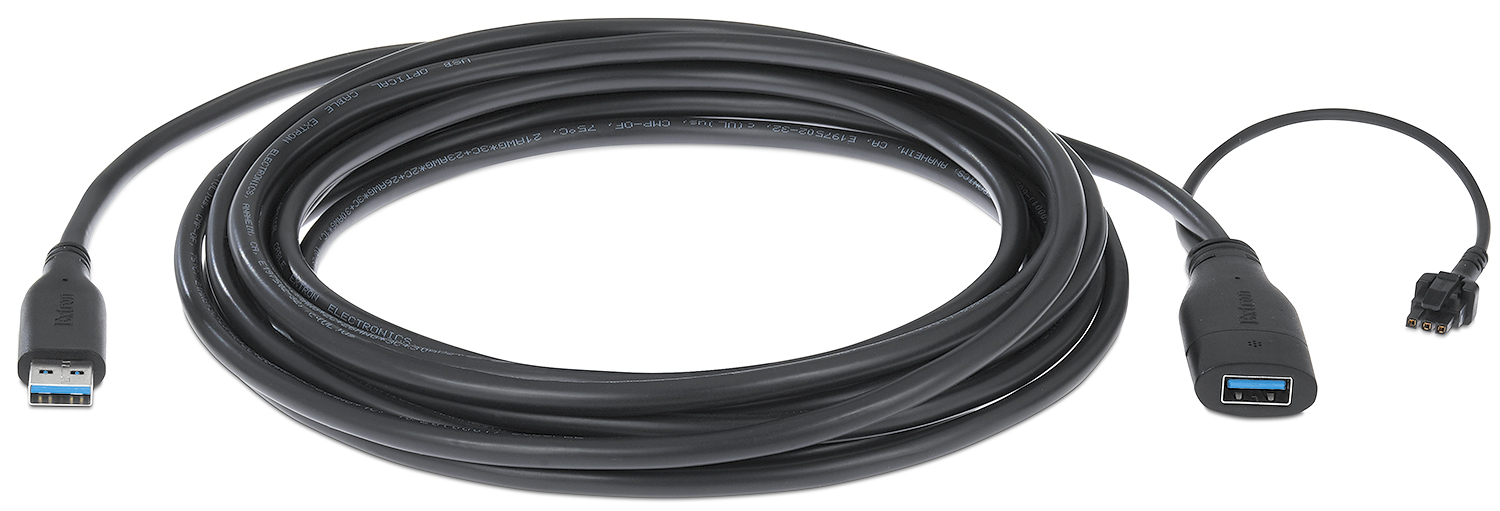

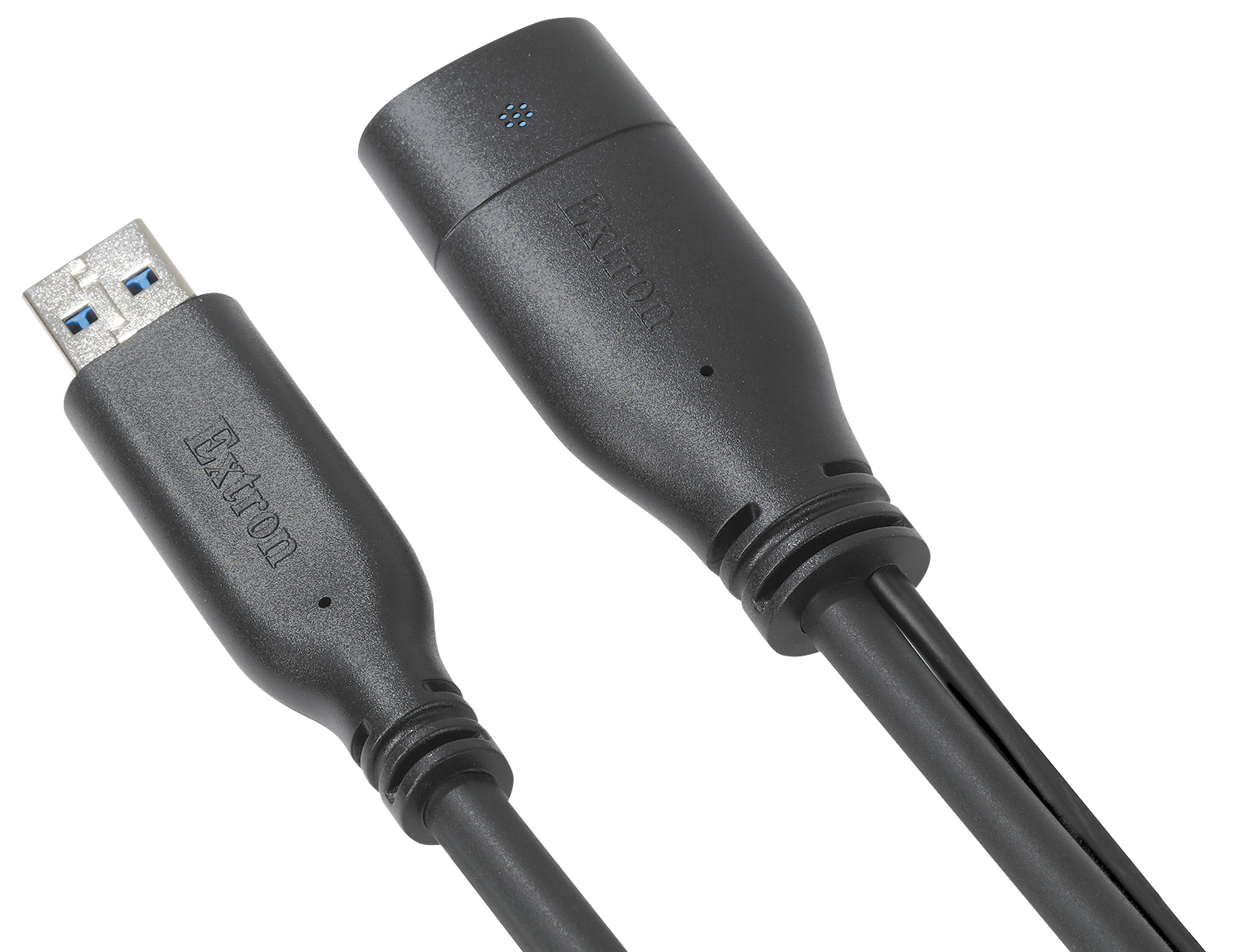

USBA Pro Plenum 系列
建筑工程规范
选择一个产品编号：
复制文本
已复制！
发生错误。请稍后重试。
USBA Pro P/15 - USB-A 5 Gbps Optical Extension Cable - 15' (4.5 m) Plenum
- Provide extension of USB signals and power over a USB-A male to female hybrid copper-optical cable assembly
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Shall support USB data rates up to 5 Gbps (USB 3)
- Shall deliver up to 5V, 900 mA of power to the USB peripheral device when a power inserter is used
- Shall be backwards compatible with USB 2/1 devices
- Shall meet the following cable construction requirements:
- Multi-Mode fibers and 24 AWG tinned copper wires
- USB-A male plug for host and USB-A female connector for peripheral device connectivity
- USB-A male and USB-A female connectors with gold-plated contacts
- Plenum rated cable jacket
- Bend radius of 0.79" (20 mm)
- Cable outer diameter of 0.24” (6 mm)
- Max tensile strength of 100 N (10.2 kg, 22.5 lbs)
- Max. compression load resistance of 200 N (20.4 kg, 45 lbs)
- Max pull strength of 111 N (11.3 kg, 25 lbs)
- Cable shall be 15 feet (4.5 meters) in length
- Cable shall provide protection from outside electrical interference
- Cables shall comply with CE, UL-CMP standards
- Active cable circuitry shall derive power from the connected USB host device
- Cable shall consume no more than 450 mA of power
- Blue LED on the female USB‑A connector shall provide visual status notification of host power presence
- Female USB‑A connector shall come equipped with an attached pigtail cable for connection to an external power supply
- Cable shall have a minimum storage temperature of -20 °C and a maximum of 70 °C
- Cable shall have a minimum operating temperature of 0 °C and a maximum of 50 °C
- Cable shall come with a Limited Lifetime Performance warranty
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Approved cable shall be Extron USBA Pro P/15, part number 26-728-15; no alternates or equals
USBA Pro P/15 - USB-A 5 Gbps Optical Extension Cable - 15' (4.5 m) Plenum
- Provide extension of USB signals and power over a USB-A male to female hybrid copper-optical cable assembly
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Shall support USB data rates up to 5 Gbps (USB 3)
- Shall deliver up to 5V, 900 mA of power to the USB peripheral device when a power inserter is used
- Shall be backwards compatible with USB 2/1 devices
- Shall meet the following cable construction requirements:
- Multi-Mode fibers and 24 AWG tinned copper wires
- USB-A male plug for host and USB-A female connector for peripheral device connectivity
- USB-A male and USB-A female connectors with gold-plated contacts
- Plenum rated cable jacket
- Bend radius of 0.79" (20 mm)
- Cable outer diameter of 0.24” (6 mm)
- Max tensile strength of 100 N (10.2 kg, 22.5 lbs)
- Max. compression load resistance of 200 N (20.4 kg, 45 lbs)
- Max pull strength of 111 N (11.3 kg, 25 lbs)
- Cable shall be 15 feet (4.5 meters) in length
- Cable shall provide protection from outside electrical interference
- Cables shall comply with CE, UL-CMP standards
- Active cable circuitry shall derive power from the connected USB host device
- Cable shall consume no more than 450 mA of power
- Blue LED on the female USB‑A connector shall provide visual status notification of host power presence
- Female USB‑A connector shall come equipped with an attached pigtail cable for connection to an external power supply
- Cable shall have a minimum storage temperature of -20 °C and a maximum of 70 °C
- Cable shall have a minimum operating temperature of 0 °C and a maximum of 50 °C
- Cable shall come with a Limited Lifetime Performance warranty
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Approved cable shall be Extron USBA Pro P/15, part number 26-728-15; no alternates or equals
USBA Pro P/25 - USB-A 5 Gbps Optical Extension Cable - 25' (7.6 m) Plenum
- Provide extension of USB signals and power over a USB-A male to female hybrid copper-optical cable assembly.
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Shall support USB data rates up to 5 Gbps (USB 3)
- Shall deliver up to 5V, 900 mA of power to the USB peripheral device when a power inserter is used
- Shall be backwards compatible with USB 2/1 devices
- Shall meet the following cable construction requirements:
- Multi-Mode fibers and 24 AWG tinned copper wires
- USB-A male plug for host and USB-A female connector for peripheral device connectivity
- USB-A male and USB-A female connectors with gold-plated contacts
- Plenum rated cable jacket
- Bend radius of 0.79" (20 mm)
- Cable outer diameter of 0.24” (6 mm)
- Max tensile strength of 100 N (10.2 kg, 22.5 lbs)
- Max. compression load resistance of 200 N (20.4 kg, 45 lbs)
- Max pull strength of 111 N (11.3 kg, 25 lbs)
- Cable shall be 25 feet (7.6 meters) in length
- Cable shall provide protection from outside electrical interference
- Cables shall comply with CE, UL-CMP standards
- Active cable circuitry shall derive power from the connected USB host device
- Cable shall consume no more than 450 mA of power
- Blue LED on the female USB‑A connector shall provide visual status notification of host power presence
- Female USB‑A connector shall come equipped with an attached pigtail cable for connection to an external power supply
- Cable shall have a minimum storage temperature of -20 °C and a maximum of 70 °C
- Cable shall have a minimum operating temperature of 0 °C and a maximum of 50 °C
- Cable shall come with a Limited Lifetime Performance warranty
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Approved cable shall be Extron USBA Pro P/25, part number 26-728-25; no alternates or equals
USBA Pro P/25 - USB-A 5 Gbps Optical Extension Cable - 25' (7.6 m) Plenum
- Provide extension of USB signals and power over a USB-A male to female hybrid copper-optical cable assembly.
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Shall support USB data rates up to 5 Gbps (USB 3)
- Shall deliver up to 5V, 900 mA of power to the USB peripheral device when a power inserter is used
- Shall be backwards compatible with USB 2/1 devices
- Shall meet the following cable construction requirements:
- Multi-Mode fibers and 24 AWG tinned copper wires
- USB-A male plug for host and USB-A female connector for peripheral device connectivity
- USB-A male and USB-A female connectors with gold-plated contacts
- Plenum rated cable jacket
- Bend radius of 0.79" (20 mm)
- Cable outer diameter of 0.24” (6 mm)
- Max tensile strength of 100 N (10.2 kg, 22.5 lbs)
- Max. compression load resistance of 200 N (20.4 kg, 45 lbs)
- Max pull strength of 111 N (11.3 kg, 25 lbs)
- Cable shall be 25 feet (7.6 meters) in length
- Cable shall provide protection from outside electrical interference
- Cables shall comply with CE, UL-CMP standards
- Active cable circuitry shall derive power from the connected USB host device
- Cable shall consume no more than 450 mA of power
- Blue LED on the female USB‑A connector shall provide visual status notification of host power presence
- Female USB‑A connector shall come equipped with an attached pigtail cable for connection to an external power supply
- Cable shall have a minimum storage temperature of -20 °C and a maximum of 70 °C
- Cable shall have a minimum operating temperature of 0 °C and a maximum of 50 °C
- Cable shall come with a Limited Lifetime Performance warranty
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Approved cable shall be Extron USBA Pro P/25, part number 26-728-25; no alternates or equals
USBA Pro P/35 - USB-A 5 Gbps Optical Extension Cable - 35' (10.6 m) Plenum
- Provide extension of USB signals and power over a USB-A male to female hybrid copper-optical cable assembly.
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Shall support USB data rates up to 5 Gbps (USB 3)
- Shall deliver up to 5V, 900 mA of power to the USB peripheral device when a power inserter is used
- Shall backwards compatible with USB 2/1 devices
- Shall meet the following cable construction requirements:
- Multi-Mode fibers and 24 AWG tinned copper wires
- USB-A male plug for host and USB-A female connector for peripheral device connectivity
- USB-A male and USB-A female connectors with gold-plated contacts
- Plenum rated cable jacket
- Bend radius of 0.79" (20 mm)
- Cable outer diameter of 0.24” (6 mm)
- Max tensile strength of 100 N (10.2 kg, 22.5 lbs)
- Max. compression load resistance of 200 N (20.4 kg, 45 lbs)
- Max pull strength of 111 N (11.3 kg, 25 lbs)
- Cable shall be 35 feet (10.6 meters) in length
- Cable shall provide protection from outside electrical interference
- Cables shall comply with CE, UL-CMP standards
- Active cable circuitry shall derive power from the connected USB host device
- Cable shall consume no more than 450 mA of power
- Blue LED on the female USB‑A connector shall provide visual status notification of host power presence
- Female USB‑A connector shall come equipped with an attached pigtail cable for connection to an external power supply
- Cable shall have a minimum storage temperature of -20 °C and a maximum of 70 °C
- Cable shall have a minimum operating temperature of 0 °C and a maximum of 50 °C
- Cable shall come with a Limited Lifetime Performance warranty
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Approved cable shall be Extron USBA Pro P/35, part number 26-728-35; no alternates or equals
USBA Pro P/35 - USB-A 5 Gbps Optical Extension Cable - 35' (10.6 m) Plenum
- Provide extension of USB signals and power over a USB-A male to female hybrid copper-optical cable assembly.
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Shall support USB data rates up to 5 Gbps (USB 3)
- Shall deliver up to 5V, 900 mA of power to the USB peripheral device when a power inserter is used
- Shall backwards compatible with USB 2/1 devices
- Shall meet the following cable construction requirements:
- Multi-Mode fibers and 24 AWG tinned copper wires
- USB-A male plug for host and USB-A female connector for peripheral device connectivity
- USB-A male and USB-A female connectors with gold-plated contacts
- Plenum rated cable jacket
- Bend radius of 0.79" (20 mm)
- Cable outer diameter of 0.24” (6 mm)
- Max tensile strength of 100 N (10.2 kg, 22.5 lbs)
- Max. compression load resistance of 200 N (20.4 kg, 45 lbs)
- Max pull strength of 111 N (11.3 kg, 25 lbs)
- Cable shall be 35 feet (10.6 meters) in length
- Cable shall provide protection from outside electrical interference
- Cables shall comply with CE, UL-CMP standards
- Active cable circuitry shall derive power from the connected USB host device
- Cable shall consume no more than 450 mA of power
- Blue LED on the female USB‑A connector shall provide visual status notification of host power presence
- Female USB‑A connector shall come equipped with an attached pigtail cable for connection to an external power supply
- Cable shall have a minimum storage temperature of -20 °C and a maximum of 70 °C
- Cable shall have a minimum operating temperature of 0 °C and a maximum of 50 °C
- Cable shall come with a Limited Lifetime Performance warranty
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Approved cable shall be Extron USBA Pro P/35, part number 26-728-35; no alternates or equals
USBA Pro P/50 - USB-A 5 Gbps Optical Extension Cable - 50' (15.2 m) Plenum
- Provide extension of USB signals and power over a USB-A male to female hybrid copper-optical cable assembly.
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Shall support USB data rates up to 5 Gbps (USB 3)
- Shall deliver up to 5V, 900 mA of power to the USB peripheral device when a power inserter is used
- Shall be backwards compatible with USB 2/1 devices
- Shall meet the following cable construction requirements:
- Multi-Mode fibers and 24 AWG tinned copper wires
- USB-A male plug for host and USB-A female connector for peripheral device connectivity
- USB-A male and USB-A female connectors with gold-plated contacts
- Plenum rated cable jacket
- Bend radius of 0.79" (20 mm)
- Cable outer diameter of 0.24” (6 mm)
- Max tensile strength of 100 N (10.2 kg, 22.5 lbs)
- Max. compression load resistance of 200 N (20.4 kg, 45 lbs)
- Max pull strength of 111 N (11.3 kg, 25 lbs)
- Cable shall be 50 feet (15.2 meters) in length
- Cable shall provide protection from outside electrical interference
- Cables shall comply with CE, UL-CMP standards
- Active cable circuitry shall derive power from the connected USB host device
- Cable shall consume no more than 450 mA of power
- Blue LED on the female USB‑A connector shall provide visual status notification of host power presence
- Female USB‑A connector shall come equipped with an attached pigtail cable for connection to an external power supply
- Cable shall have a minimum storage temperature of -20 °C and a maximum of 70 °C
- Cable shall have a minimum operating temperature of 0 °C and a maximum of 50 °C
- Cable shall come with a Limited Lifetime Performance warranty
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Approved cable shall be Extron USBA Pro P/50, part number 26-728-50; no alternates or equals
USBA Pro P/50 - USB-A 5 Gbps Optical Extension Cable - 50' (15.2 m) Plenum
- Provide extension of USB signals and power over a USB-A male to female hybrid copper-optical cable assembly.
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Shall support USB data rates up to 5 Gbps (USB 3)
- Shall deliver up to 5V, 900 mA of power to the USB peripheral device when a power inserter is used
- Shall be backwards compatible with USB 2/1 devices
- Shall meet the following cable construction requirements:
- Multi-Mode fibers and 24 AWG tinned copper wires
- USB-A male plug for host and USB-A female connector for peripheral device connectivity
- USB-A male and USB-A female connectors with gold-plated contacts
- Plenum rated cable jacket
- Bend radius of 0.79" (20 mm)
- Cable outer diameter of 0.24” (6 mm)
- Max tensile strength of 100 N (10.2 kg, 22.5 lbs)
- Max. compression load resistance of 200 N (20.4 kg, 45 lbs)
- Max pull strength of 111 N (11.3 kg, 25 lbs)
- Cable shall be 50 feet (15.2 meters) in length
- Cable shall provide protection from outside electrical interference
- Cables shall comply with CE, UL-CMP standards
- Active cable circuitry shall derive power from the connected USB host device
- Cable shall consume no more than 450 mA of power
- Blue LED on the female USB‑A connector shall provide visual status notification of host power presence
- Female USB‑A connector shall come equipped with an attached pigtail cable for connection to an external power supply
- Cable shall have a minimum storage temperature of -20 °C and a maximum of 70 °C
- Cable shall have a minimum operating temperature of 0 °C and a maximum of 50 °C
- Cable shall come with a Limited Lifetime Performance warranty
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Approved cable shall be Extron USBA Pro P/50, part number 26-728-50; no alternates or equals
USBA Pro P/65 - USB-A 5 Gbps Optical Extension Cable - 65' (19.8 m) Plenum
- Provide extension of USB signals and power over a USB-A male to female hybrid copper-optical cable assembly.
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Shall support USB data rates up to 5 Gbps (USB 3)
- Shall deliver up to 5V, 900 mA of power to the USB peripheral device when a power inserter is used
- Shall be backwards compatible with USB 2/1 devices
- Shall meet the following cable construction requirements:
- Multi-Mode fibers and 24 AWG tinned copper wires
- USB-A male plug for host and USB-A female connector for peripheral device connectivity
- USB-A male and USB-A female connectors with gold-plated contacts
- Plenum rated cable jacket
- Bend radius of 0.79" (20 mm)
- Cable outer diameter of 0.24” (6 mm)
- Max tensile strength of 100 N (10.2 kg, 22.5 lbs)
- Max. compression load resistance of 200 N (20.4 kg, 45 lbs)
- Max pull strength of 111 N (11.3 kg, 25 lbs)
- Cable shall be 65 feet (19.8 meters) in length
- Cable shall provide protection from outside electrical interference
- Cables shall comply with CE, UL-CMP standards
- Active cable circuitry shall derive power from the connected USB host device
- Cable shall consume no more than 450 mA of power
- Blue LED on the female USB‑A connector shall provide visual status notification of host power presence
- Female USB‑A connector shall come equipped with an attached pigtail cable for connection to an external power supply
- Cable shall have a minimum storage temperature of -20 °C and a maximum of 70 °C
- Cable shall have a minimum operating temperature of 0 °C and a maximum of 50 °C
- Cable shall come with a Limited Lifetime Performance warranty
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Approved cable shall be Extron USBA Pro P/65, part number 26-728-65; no alternates or equals
USBA Pro P/65 - USB-A 5 Gbps Optical Extension Cable - 65' (19.8 m) Plenum
- Provide extension of USB signals and power over a USB-A male to female hybrid copper-optical cable assembly.
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Shall support USB data rates up to 5 Gbps (USB 3)
- Shall deliver up to 5V, 900 mA of power to the USB peripheral device when a power inserter is used
- Shall be backwards compatible with USB 2/1 devices
- Shall meet the following cable construction requirements:
- Multi-Mode fibers and 24 AWG tinned copper wires
- USB-A male plug for host and USB-A female connector for peripheral device connectivity
- USB-A male and USB-A female connectors with gold-plated contacts
- Plenum rated cable jacket
- Bend radius of 0.79" (20 mm)
- Cable outer diameter of 0.24” (6 mm)
- Max tensile strength of 100 N (10.2 kg, 22.5 lbs)
- Max. compression load resistance of 200 N (20.4 kg, 45 lbs)
- Max pull strength of 111 N (11.3 kg, 25 lbs)
- Cable shall be 65 feet (19.8 meters) in length
- Cable shall provide protection from outside electrical interference
- Cables shall comply with CE, UL-CMP standards
- Active cable circuitry shall derive power from the connected USB host device
- Cable shall consume no more than 450 mA of power
- Blue LED on the female USB‑A connector shall provide visual status notification of host power presence
- Female USB‑A connector shall come equipped with an attached pigtail cable for connection to an external power supply
- Cable shall have a minimum storage temperature of -20 °C and a maximum of 70 °C
- Cable shall have a minimum operating temperature of 0 °C and a maximum of 50 °C
- Cable shall come with a Limited Lifetime Performance warranty
- Cable shall comply to the USB 3 standard established by the USB Implementers Forum, Inc.
- Approved cable shall be Extron USBA Pro P/65, part number 26-728-65; no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
