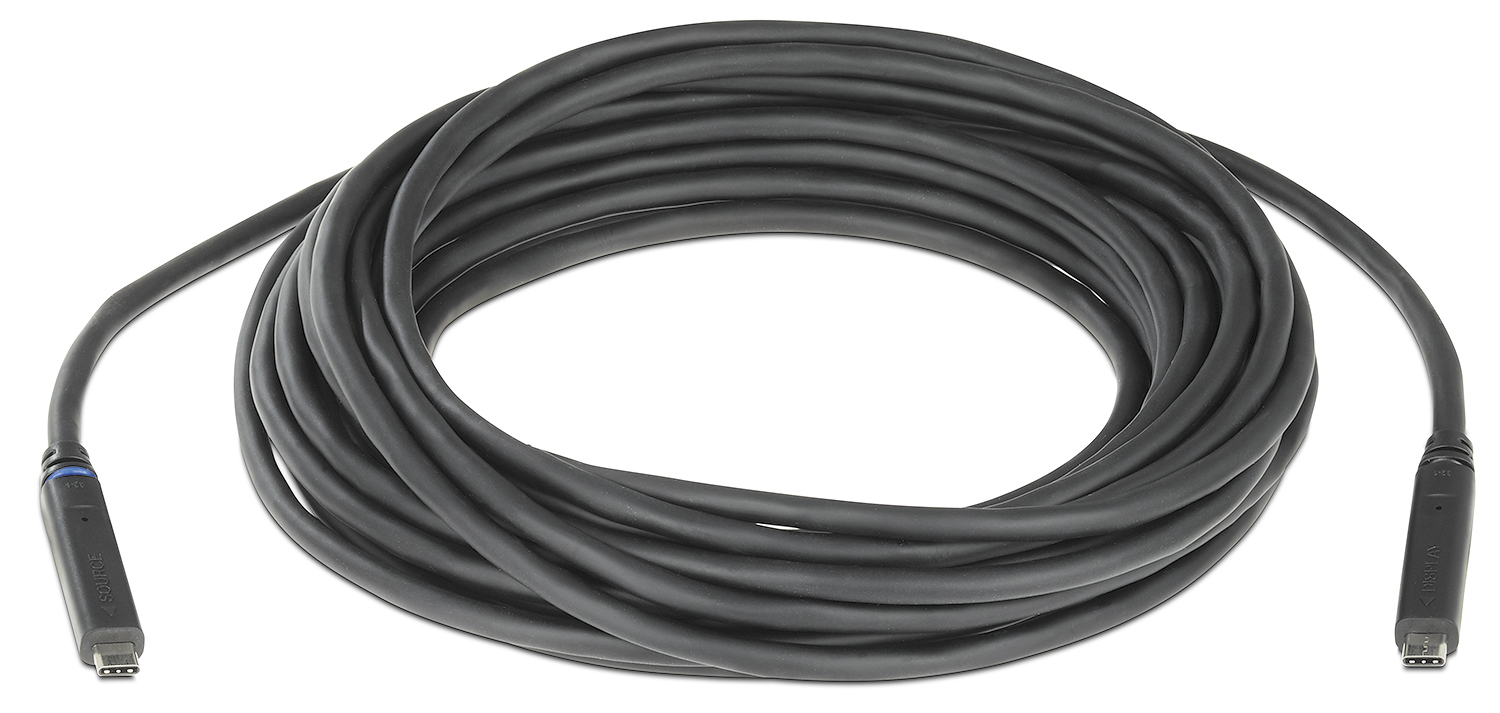

USBC Pro/15
- Provide interconnection for the transmission of USB data, DisplayPort AV, and power signals simultaneously over a USB-C hybrid copper-optical cable assembly
- Transmission requirements
- Shall comply with the USB standard established by the USB Implementers Forum, Inc.
- Shall support USB data rates up to 5 Gbps (USB 3)
- Shall support DisplayPort video and audio signals
- Provide two dedicated lanes for DisplayPort signals over optical fibers
- Support resolutions up to 4096x2160 @ 30 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Support data rates up to 16.2 Gbps
- Shall deliver up to 60 watts of power
- Shall support bidirectional USB power flow
- Shall be backwards compatible with USB 2/1 devices
- Construction requirements:
- Active cable circuitry shall derive power from either the connected host or the peripheral device
- Shall be 15 feet (4.5 meters) in length
- Shall include multimode fibers
- Shall include 24 AWG tinned copper wires
- Shall provide USB-C male connectors with gold-plated contacts
- Shall provide a PVC cable jacket
- Shall allow a bend radius of 0.79" (20 mm)
- Shall have a cable outer diameter of 0.26” (6.5 mm)
- Shall support a tensile strength of 100 N (10.2 kg, 22.5 lbs)
- Shall provide a compression load resistance of 200 N (20.4 kg, 45 lbs)
- Shall support a pull strength of 111 N (11.3 kg, 25 lbs)
- Shall provide protection from outside electrical interference
- General requirements
- Shall have a minimum storage temperature of -20 °C and a maximum of 70 °C
- Shall have a minimum operating temperature of 0 °C and a maximum of 50 °C
- Shall comply with industry standards
- RoHS
- WEEE
- CE
- UL-CMX
- Transmission requirements
- Approved cable shall be Extron USBC Pro/15, part number 26-741-15; no alternates or equals
USBC Pro/15
- Provide interconnection for the transmission of USB data, DisplayPort AV, and power signals simultaneously over a USB-C hybrid copper-optical cable assembly
- Transmission requirements
- Shall comply with the USB standard established by the USB Implementers Forum, Inc.
- Shall support USB data rates up to 5 Gbps (USB 3)
- Shall support DisplayPort video and audio signals
- Provide two dedicated lanes for DisplayPort signals over optical fibers
- Support resolutions up to 4096x2160 @ 30 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Support data rates up to 16.2 Gbps
- Shall deliver up to 60 watts of power
- Shall support bidirectional USB power flow
- Shall be backwards compatible with USB 2/1 devices
- Construction requirements:
- Active cable circuitry shall derive power from either the connected host or the peripheral device
- Shall be 15 feet (4.5 meters) in length
- Shall include multimode fibers
- Shall include 24 AWG tinned copper wires
- Shall provide USB-C male connectors with gold-plated contacts
- Shall provide a PVC cable jacket
- Shall allow a bend radius of 0.79" (20 mm)
- Shall have a cable outer diameter of 0.26” (6.5 mm)
- Shall support a tensile strength of 100 N (10.2 kg, 22.5 lbs)
- Shall provide a compression load resistance of 200 N (20.4 kg, 45 lbs)
- Shall support a pull strength of 111 N (11.3 kg, 25 lbs)
- Shall provide protection from outside electrical interference
- General requirements
- Shall have a minimum storage temperature of -20 °C and a maximum of 70 °C
- Shall have a minimum operating temperature of 0 °C and a maximum of 50 °C
- Shall comply with industry standards
- RoHS
- WEEE
- CE
- UL-CMX
- Transmission requirements
- Approved cable shall be Extron USBC Pro/15, part number 26-741-15; no alternates or equals
USBC Pro/25
- Provide interconnection for the transmission of USB data, DisplayPort AV, and power signals simultaneously over a USB-C hybrid copper-optical cable assembly
- Transmission requirements
- Shall comply with the USB standard established by the USB Implementers Forum, Inc.
- Shall support USB data rates up to 5 Gbps (USB 3)
- Shall support DisplayPort video and audio signals
- Provide two dedicated lanes for DisplayPort signals over optical fibers
- Support resolutions up to 4096x2160 @ 30 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Support data rates up to 16.2 Gbps
- Shall deliver up to 60 watts of power
- Shall support bidirectional USB power flow
- Shall be backwards compatible with USB 2/1 devices
- Construction requirements:
- Active cable circuitry shall derive power from either the connected host or the peripheral device
- Shall be 25 feet (7.6 meters) in length
- Shall include multimode fibers
- Shall include 24 AWG tinned copper wires
- Shall provide USB-C male connectors with gold-plated contacts
- Shall provide a PVC cable jacket
- Shall allow a bend radius of 0.79" (20 mm)
- Shall have a cable outer diameter of 0.26” (6.5 mm)
- Shall support a tensile strength of 100 N (10.2 kg, 22.5 lbs)
- Shall provide a compression load resistance of 200 N (20.4 kg, 45 lbs)
- Shall support a pull strength of 111 N (11.3 kg, 25 lbs)
- Shall provide protection from outside electrical interference
- General requirements
- Shall have a minimum storage temperature of -20 °C and a maximum of 70 °C
- Shalll have a minimum operating temperature of 0 °C and a maximum of 50 °C
- Shall comply with industry standards
- RoHS
- WEEE
- CE
- UL-CMX
- Transmission requirements
- Approved cable shall be Extron USBC Pro/25, part number 26-741-25; no alternates or equals
USBC Pro/25
- Provide interconnection for the transmission of USB data, DisplayPort AV, and power signals simultaneously over a USB-C hybrid copper-optical cable assembly
- Transmission requirements
- Shall comply with the USB standard established by the USB Implementers Forum, Inc.
- Shall support USB data rates up to 5 Gbps (USB 3)
- Shall support DisplayPort video and audio signals
- Provide two dedicated lanes for DisplayPort signals over optical fibers
- Support resolutions up to 4096x2160 @ 30 Hz with 4:4:4 chroma sampling and 8-bit color depth
- Support data rates up to 16.2 Gbps
- Shall deliver up to 60 watts of power
- Shall support bidirectional USB power flow
- Shall be backwards compatible with USB 2/1 devices
- Construction requirements:
- Active cable circuitry shall derive power from either the connected host or the peripheral device
- Shall be 25 feet (7.6 meters) in length
- Shall include multimode fibers
- Shall include 24 AWG tinned copper wires
- Shall provide USB-C male connectors with gold-plated contacts
- Shall provide a PVC cable jacket
- Shall allow a bend radius of 0.79" (20 mm)
- Shall have a cable outer diameter of 0.26” (6.5 mm)
- Shall support a tensile strength of 100 N (10.2 kg, 22.5 lbs)
- Shall provide a compression load resistance of 200 N (20.4 kg, 45 lbs)
- Shall support a pull strength of 111 N (11.3 kg, 25 lbs)
- Shall provide protection from outside electrical interference
- General requirements
- Shall have a minimum storage temperature of -20 °C and a maximum of 70 °C
- Shalll have a minimum operating temperature of 0 °C and a maximum of 50 °C
- Shall comply with industry standards
- RoHS
- WEEE
- CE
- UL-CMX
- Transmission requirements
- Approved cable shall be Extron USBC Pro/25, part number 26-741-25; no alternates or equals
