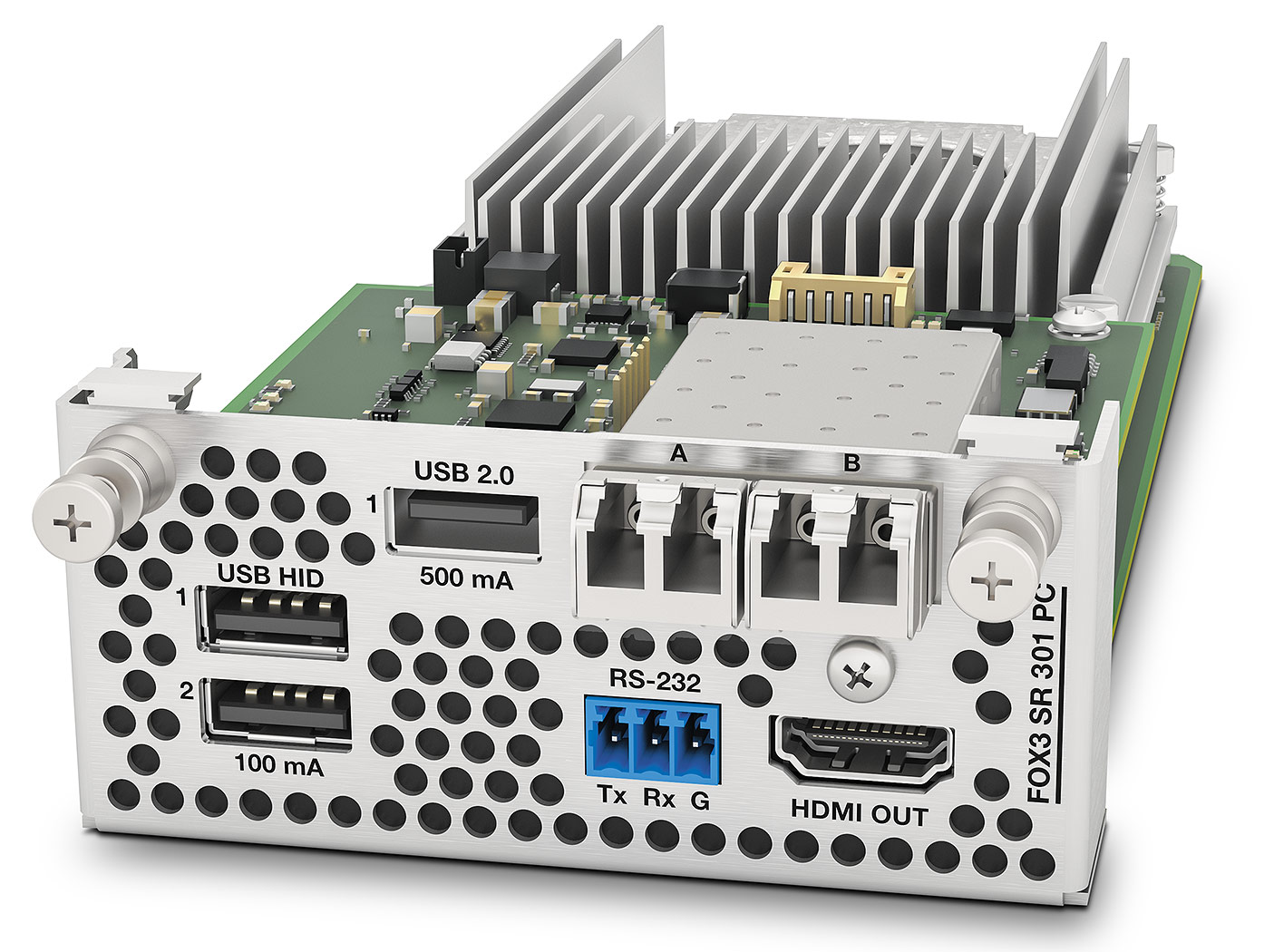

FOX3 SR 301 PC

用于带嵌入音频的 HDMI、USB 和 RS-232 信号的 PowerCage 光纤图像解析度转换接收器

主要特性

接收来自 FOX3 系列发送器的光纤信号，并提供带嵌入音频的解析度转换 HDMI 视频、USB 和 RS-232 控制信号
高性能图像解析度转换器支持高达 4096x2160 @ 60 Hz、带 4:4:4 色度取样的可选输出分辨率
通过单根光纤传输分辨率高达 4096x2160 @ 60 Hz、带 4:4:4 色度取样的数学无损 4K 视频信号
通过两根光纤传输分辨率高达 4096x2160 @ 60 Hz、带 4:4:4 色度取样的无压缩 4K 视频信号
支持 HDMI 2.0 参数标准，包括高达 18 Gbps 的数据速率和高达 12 位的色深
符合 HDCP 2.3 标准
所有特性

图片库

8K Data Rate Calculator

LinkLicense 申领

概述
视频
描述
技术参数
示意图
面板图
下载

概述

Extron FOX3 SR 301 PC 光纤解析度转换接收器是一款设计用于 PowerCage 411 机箱的紧凑型单插槽模块，可通过光纤长距离传输符合 HDCP 标准的带嵌入音频的 HDMI 视频、USB HID 和 RS-232 控制信号。其设计着力于出色的高分辨率图像性能，并采用 Extron 全数字化技术，可通过两根光纤完美地传输像素级无压缩的分辨率高达 4K/60 @ 4:4:4 的图像，或通过单根光纤传输数学无损的 4K/60 @ 4:4:4 信号。FOX3 SR 301 PC 专为视音频系统而设计，还包括许多集成商友好的特性，如 Key Minder® 和实时的系统监控。

视频

描述

技术参数

示意图

面板图

下载
