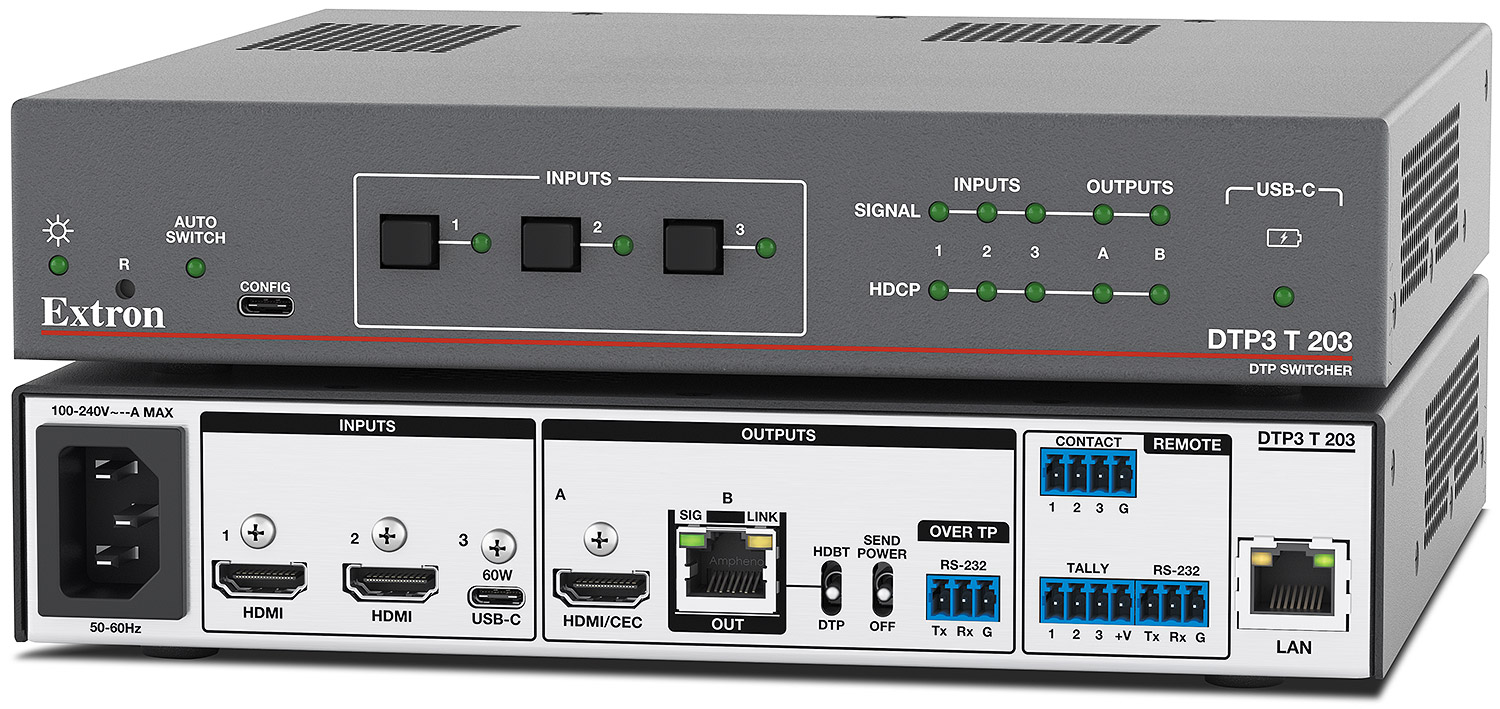

DTP3 T 203

DTP3 T 203

1. Provide a twisted pair switcher that shall support one USB-C® input and two HDMI inputs, and shall provide long distance signal distribution of video, audio, and control over a shielded CAT 6A cable
   1. Rack-mountable switcher for the extension of USB-C, HDMI, audio, and control
   2. Video input requirements
      1. Shall provide one (1) USB-C input for digital video signals
         1. Shall support USB-C sources with DisplayPort Alt Mode
      2. Shall provide two (2) HDMI inputs for digital video signals
         1. Shall support HDMI 2.0b specifications including data rates up to 18 Gbps, HDR, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC pass-through
      3. Shall support digital video resolutions up to 4K/60 @ 4:4:4 color sampling
   3. Audio input requirements
      1. Shall support embedded digital audio on USB-C input
      2. Shall support embedded digital audio on HDMI inputs
      3. Shall support multiple embedded audio formats
      4. Shall support embedded HD lossless audio formats
   4. Video output requirements
      1. Shall provide one (1) RJ-45 for connection to an Extron DTP3-enabled product
      2. Shall be configurable for sending digital video, audio, and bidirectional RS-232 signals to an HDBaseT™-enabled display
      3. Shall provide one (1) mirrored HDMI output
   5. Switching requirements
      1. Shall provide configurable automatic switching modes between input sources
         1. Last connected: always switch to the last active connected input
         2. Configurable priority: switching priority may be assigned arbitrarily for any combination of the four inputs
   6. Transmission requirements
      1. Shall provide signal transmission distance capability of 330 feet (100 meters) for all supported video resolutions using a shielded CAT 6A cable
   7. EDID requirements
      1. Shall provide automatic EDID management between connected devices
         1. Provide a set of pre-stored EDID files
         2. Support capture of EDID from any connected display
         3. Support user uploading of custom-generated EDID files
         4. Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
   8. HDCP requirements
      1. Shall be HDCP 2.3 compliant
      2. Shall provide the option to disable HDCP processing at any HDMI input connection when passing unencrypted content
      3. Shall provide human-readable visual confirmation of HDCP compliance when encrypted content is routed to a non-compliant display
      4. Shall provide real-time verification of HDCP status for each digital video input
         1. Accessible through front panel LEDs
         2. Electronically accessible over Ethernet, RS-232 or USB connection
   9. Control/Remote – RS-232 pass-through over shielded CAT 6A requirements
      1. Shall provide connection for AV device control
         1. One (1) 3-pole captive screw: RS-232 pass-through over DTP
         2. RS-232 serial communication insertion from Ethernet port
   10. Control/Remote – switcher control requirements
       1. Shall provide connections for remote switcher control
          1. One (1) 3-pole captive screw: RS-232
          2. USB-C port on front panel
          3. One (1) 4-pole captive screw: contact closure in
          4. One (1) 4-pole captive screw: tally out
          5. One (1) RJ-45: 10/100 Ethernet port
       2. Shall provide alternatives for configuration and operation

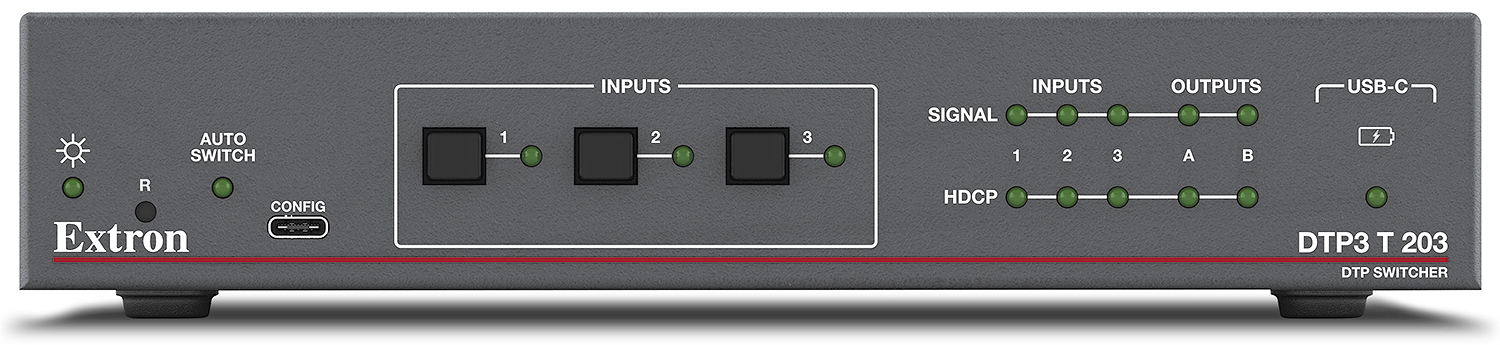

          1. Front panel controls
          2. Product configuration software connected via Ethernet and USB
          3. Serial commands sent over Ethernet, RS-232 and USB connection
          4. Contact closure ports for use as input selection
          5. Tally output that provide +5 VDC to light an LED. indicating the currently selected input
       3. Shall support disabling of front panel controls to prevent inadvertent or unauthorized changes to configuration settings
   11. Power requirements
       1. Shall provide DIP switch on rear panel for selection to provide power to a connected DTP3 receiver
       2. Shall support USB-C device charging up to 60 watts
   12. General requirements
       1. Shall include a USB-C configuration port on the front panel for data access and firmware updates
       2. Shall provide directly readable real-time verification of signal flow and operation

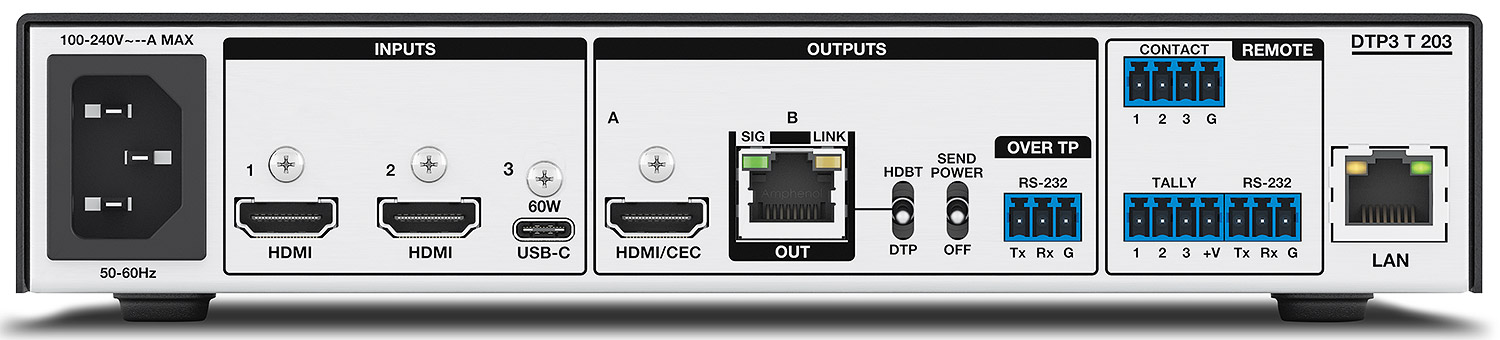

          1. RJ-45 signal and link status LEDs on rear panel
          2. LAN signal and link status LEDs on rear panel
          3. Power status on front panel
          4. Auto-switching selection status LED on front panel
          5. Signal presence and HDCP status LEDs for active input/s on front panel
       3. Shall be compatible with CAT 6A shielded twisted pair cable, and Extron XTP DTP 22 shielded twisted pair cable
       4. Shall support the use of HDMI to DVI-D cables or adapters for DVI-D signals
       5. Shall have a 1U high, half rack width metal enclosure
       6. Shall be equipped with an external universal AC power supply capable of supporting 100-240 VAC, 50/60 Hz power
       7. Shall meet regulatory compliances
          1. CE, c-UL, UL
          2. CE, C-tick, FCC Class A, ICES, VCCI
          3. Appropriate requirements of RoHS and WEEE
       8. Shall provide at least three (3) years parts and labor warranty
   13. Approved device shall be the Extron DTP3 T 203 (60-1885-52); no alternates or equals
