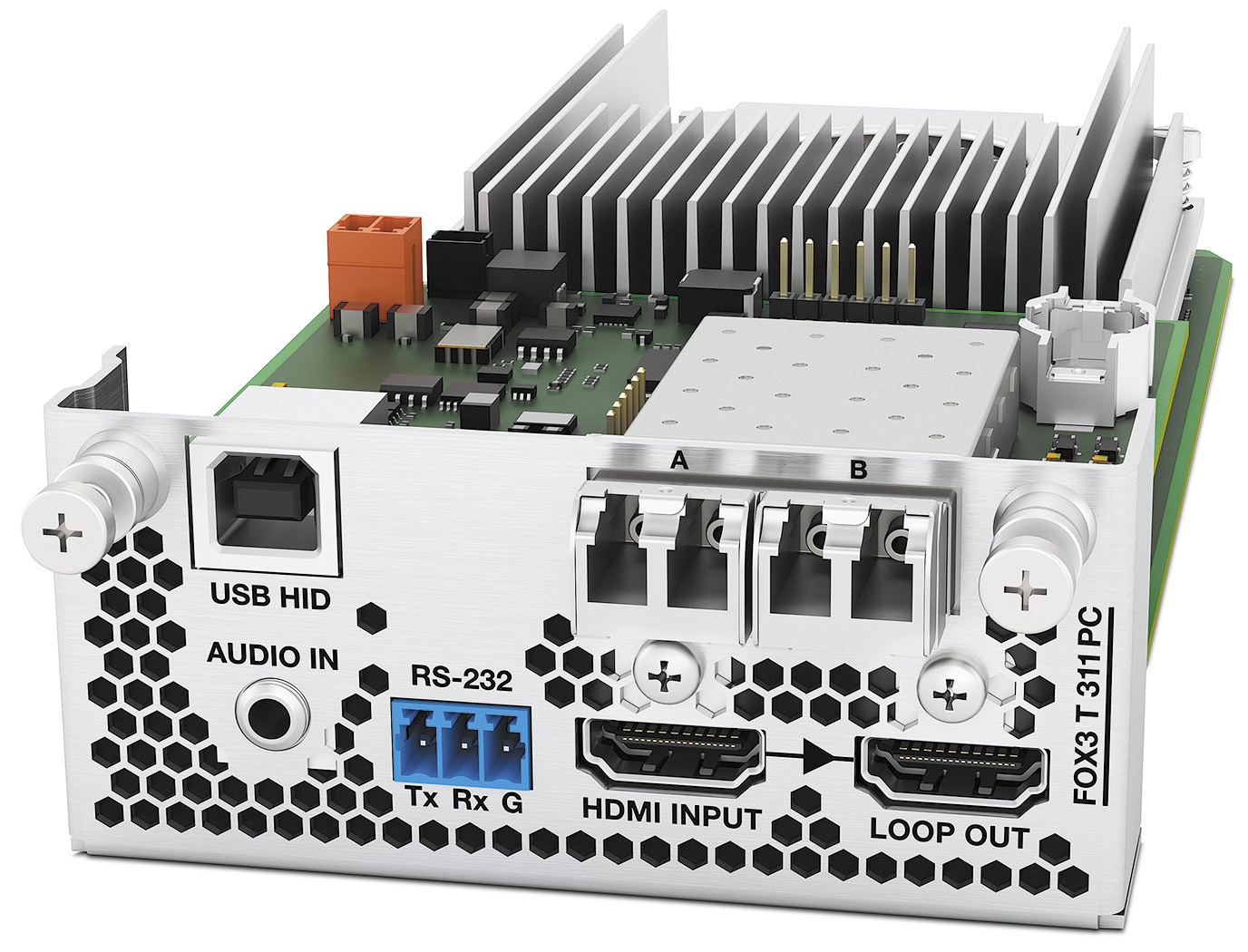

70-1223-11 – FOX3 T 311 PC MM – Lossless 4K/60 Transmitter MM
- Shall provide a modular fiber optic transmitter that support the distribution of HDMI video, stereo audio, USB HID, and RS-232 control

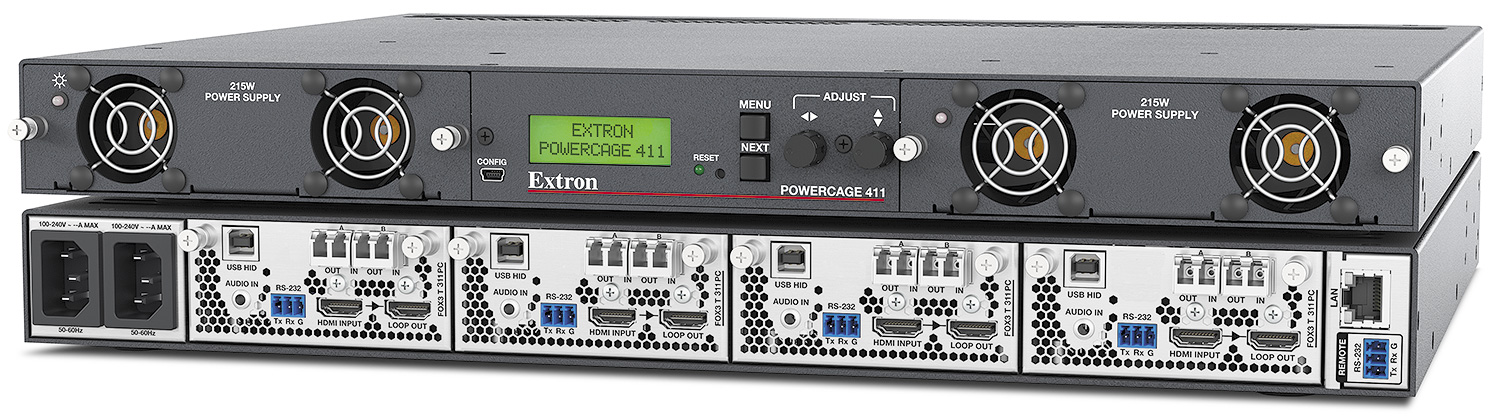

- Single-slot module designed for the Extron PowerCage 411 enclosure
- Long distance signal extension of digital video with embedded stereo audio, control signals over multimode fiber optic cabling
- Video input requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide one (1) female HDMI Type A connector with buffered loop-through
- Shall support the following HDMI 2.0 specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 18 Gbps – 6 Gbps per lane
- Shall support 12-bit color bit depth for resolutions up to 4K/60
- Embedded audio input requirements
- Shall provide one (1) female HDMI Type A connector – shared with video input
- Shall support PCM stereo audio formats
- Analog Audio input requirements
- Shall provide one (1) 3.5 mm stereo mini jack for unbalanced analog stereo
- Shall support embedding of analog stereo audio onto HDMI signals
- EDID communication requirements
- Shall include Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- USB HID input requirements
- Shall provide one (1) USB Type B connector for host devices
- Shall support host connection for USB HID
- Shall support device class filtering to limit device types to USB HID
- Shall provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Shall support data transfer rates up to 480 Mbps
- AV device control requirements
- Shall provide one (1) bidirectional RS-232 connector for control pass-through
- Shall support three modes of RS-232 insertion or pass-through for controlling local or remote devices
- RS-232 pass-through from the local RS-232 port on the module onto the fiber for communicating with a remote device or control system
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure to the local RS-232 port on the module for communicating with a local device
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure onto the fiber for communicating a remote device
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals over multimode fiber optic cabling
- Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
- Shall provide a fiber optic signal transmission distance capability of 500 m (1640 feet) over OM4 laser optimized multimode fiber optic cabling
- Shall support an optical loss budget of at least 9.7 dB between transmitter and receiver
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support user-selectable HDCP authorization to allow the transmitter to appear HDCP compliant or non‑HDCP compliant to the connected source
- Setup, control, and configuration requirements
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Setup, configuration, and firmware updates via the mini USB port on the enclosure front panel
- Setup, configuration, and control via the bidirectional RS-232 port on the enclosure rear panel
- Setup, configuration, control, and monitoring via an Ethernet connection to the RJ-45 port on the enclosure rear panel
- Setup and configuration without a computer using the front-panel controls and LCD on the enclosure
- Shall support Extron Product Configuration Software – PCS for setup and configuration
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Power requirements
- Shall be supplied power by a PowerCage 411 enclosure
- General requirements
- Shall provide internal color bars test pattern for calibration and setup
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least (3) three years parts and labor warranty
- Shall be compatible with Extron FOX3 Series fiber optic receivers
- Shall be compatible with Extron FOX3 Series matrix switchers to create an HDCP-compliant signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 T 311 MM (70-1223-11); no alternates or equals
70-1223-11 – FOX3 T 311 PC MM – Lossless 4K/60 Transmitter MM
- Shall provide a modular fiber optic transmitter that support the distribution of HDMI video, stereo audio, USB HID, and RS-232 control
- Single-slot module designed for the Extron PowerCage 411 enclosure
- Long distance signal extension of digital video with embedded stereo audio, control signals over multimode fiber optic cabling
- Video input requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide one (1) female HDMI Type A connector with buffered loop-through
- Shall support the following HDMI 2.0 specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 18 Gbps – 6 Gbps per lane
- Shall support 12-bit color bit depth for resolutions up to 4K/60
- Embedded audio input requirements
- Shall provide one (1) female HDMI Type A connector – shared with video input
- Shall support PCM stereo audio formats
- Analog Audio input requirements
- Shall provide one (1) 3.5 mm stereo mini jack for unbalanced analog stereo
- Shall support embedding of analog stereo audio onto HDMI signals
- EDID communication requirements
- Shall include Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- USB HID input requirements
- Shall provide one (1) USB Type B connector for host devices
- Shall support host connection for USB HID
- Shall support device class filtering to limit device types to USB HID
- Shall provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Shall support data transfer rates up to 480 Mbps
- AV device control requirements
- Shall provide one (1) bidirectional RS-232 connector for control pass-through
- Shall support three modes of RS-232 insertion or pass-through for controlling local or remote devices
- RS-232 pass-through from the local RS-232 port on the module onto the fiber for communicating with a remote device or control system
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure to the local RS-232 port on the module for communicating with a local device
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure onto the fiber for communicating a remote device
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals over multimode fiber optic cabling
- Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
- Shall provide a fiber optic signal transmission distance capability of 500 m (1640 feet) over OM4 laser optimized multimode fiber optic cabling
- Shall support an optical loss budget of at least 9.7 dB between transmitter and receiver
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support user-selectable HDCP authorization to allow the transmitter to appear HDCP compliant or non‑HDCP compliant to the connected source
- Setup, control, and configuration requirements
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Setup, configuration, and firmware updates via the mini USB port on the enclosure front panel
- Setup, configuration, and control via the bidirectional RS-232 port on the enclosure rear panel
- Setup, configuration, control, and monitoring via an Ethernet connection to the RJ-45 port on the enclosure rear panel
- Setup and configuration without a computer using the front-panel controls and LCD on the enclosure
- Shall support Extron Product Configuration Software – PCS for setup and configuration
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Power requirements
- Shall be supplied power by a PowerCage 411 enclosure
- General requirements
- Shall provide internal color bars test pattern for calibration and setup
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least (3) three years parts and labor warranty
- Shall be compatible with Extron FOX3 Series fiber optic receivers
- Shall be compatible with Extron FOX3 Series matrix switchers to create an HDCP-compliant signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 T 311 MM (70-1223-11); no alternates or equals
70-1223-12 – FOX3 T 311 PC SM – Lossless 4K/60 Transmitter SM
- Shall provide a modular fiber optic transmitter that support the distribution of HDMI video, stereo audio, USB HID, and RS-232 control
- Single-slot module designed for the Extron PowerCage 411 enclosure
- Long distance signal extension of digital video with embedded stereo audio, control signals over singlemode fiber optic cabling
- Video input requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide one (1) female HDMI Type A connector with buffered loop-through
- Shall support the following HDMI 2.0 specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 18 Gbps – 6 Gbps per lane
- Shall support 12-bit color bit depth for resolutions up to 4K/60
- Embedded audio input requirements
- Shall provide one (1) female HDMI Type A connector – shared with video input
- Shall support PCM stereo audio formats
- Analog Audio input requirements
- Shall provide one (1) 3.5 mm stereo mini jack for unbalanced analog stereo
- Shall support embedding of analog stereo audio onto HDMI signals
- EDID communication requirements
- Shall include Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- USB HID input requirements
- Shall provide one (1) USB Type B connector for host devices
- Shall support host connection for USB HID
- Shall support device class filtering to limit device types to USB HID
- Shall provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Shall support data transfer rates up to 480 Mbps
- AV device control requirements
- Shall provide one (1) bidirectional RS-232 connector for control pass-through
- Shall support three modes of RS-232 insertion or pass-through for controlling local or remote devices
- RS-232 pass-through from the local RS-232 port on the module onto the fiber for communicating with a remote device or control system
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure to the local RS-232 port on the module for communicating with a local device
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure onto the fiber for communicating a remote device
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals over singlemode fiber optic cabling
- Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
- Shall provide a fiber optic signal transmission distance capability of 20 km (12.4 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 7.4 dB between transmitter and receiver
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support user-selectable HDCP authorization to allow the transmitter to appear HDCP compliant or non‑HDCP compliant to the connected source
- Setup, control, and configuration requirements
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Setup, configuration, and firmware updates via the mini USB port on the enclosure front panel
- Setup, configuration, and control via the bidirectional RS-232 port on the enclosure rear panel
- Setup, configuration, control, and monitoring via an Ethernet connection to the RJ-45 port on the enclosure rear panel
- Setup and configuration without a computer using the front-panel controls and LCD on the enclosure
- Shall support Extron Product Configuration Software – PCS for setup and configuration
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Power requirements
- Shall be supplied power by a PowerCage 411 enclosure
- General requirements
- Shall provide internal color bars test pattern for calibration and setup
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least (3) three years parts and labor warranty
- Shall be compatible with Extron FOX3 Series fiber optic receivers
- Shall be compatible with Extron FOX3 Series matrix switchers to create an HDCP-compliant signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 T 311 SM (70-1223-12); no alternates or equals
70-1223-12 – FOX3 T 311 PC SM – Lossless 4K/60 Transmitter SM
- Shall provide a modular fiber optic transmitter that support the distribution of HDMI video, stereo audio, USB HID, and RS-232 control
- Single-slot module designed for the Extron PowerCage 411 enclosure
- Long distance signal extension of digital video with embedded stereo audio, control signals over singlemode fiber optic cabling
- Video input requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide one (1) female HDMI Type A connector with buffered loop-through
- Shall support the following HDMI 2.0 specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 18 Gbps – 6 Gbps per lane
- Shall support 12-bit color bit depth for resolutions up to 4K/60
- Embedded audio input requirements
- Shall provide one (1) female HDMI Type A connector – shared with video input
- Shall support PCM stereo audio formats
- Analog Audio input requirements
- Shall provide one (1) 3.5 mm stereo mini jack for unbalanced analog stereo
- Shall support embedding of analog stereo audio onto HDMI signals
- EDID communication requirements
- Shall include Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- USB HID input requirements
- Shall provide one (1) USB Type B connector for host devices
- Shall support host connection for USB HID
- Shall support device class filtering to limit device types to USB HID
- Shall provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Shall support data transfer rates up to 480 Mbps
- AV device control requirements
- Shall provide one (1) bidirectional RS-232 connector for control pass-through
- Shall support three modes of RS-232 insertion or pass-through for controlling local or remote devices
- RS-232 pass-through from the local RS-232 port on the module onto the fiber for communicating with a remote device or control system
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure to the local RS-232 port on the module for communicating with a local device
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure onto the fiber for communicating a remote device
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals over singlemode fiber optic cabling
- Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
- Shall provide a fiber optic signal transmission distance capability of 20 km (12.4 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 7.4 dB between transmitter and receiver
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support user-selectable HDCP authorization to allow the transmitter to appear HDCP compliant or non‑HDCP compliant to the connected source
- Setup, control, and configuration requirements
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Setup, configuration, and firmware updates via the mini USB port on the enclosure front panel
- Setup, configuration, and control via the bidirectional RS-232 port on the enclosure rear panel
- Setup, configuration, control, and monitoring via an Ethernet connection to the RJ-45 port on the enclosure rear panel
- Setup and configuration without a computer using the front-panel controls and LCD on the enclosure
- Shall support Extron Product Configuration Software – PCS for setup and configuration
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Power requirements
- Shall be supplied power by a PowerCage 411 enclosure
- General requirements
- Shall provide internal color bars test pattern for calibration and setup
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least (3) three years parts and labor warranty
- Shall be compatible with Extron FOX3 Series fiber optic receivers
- Shall be compatible with Extron FOX3 Series matrix switchers to create an HDCP-compliant signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 T 311 SM (70-1223-12); no alternates or equals
70-1223-13 – FOX3 T 311 PC MM – Uncompressed 4K/60 Transmitter MM
- Shall provide a modular fiber optic transmitter that support the distribution of HDMI video, stereo audio, USB HID, and RS-232 control
- Single-slot module designed for the Extron PowerCage 411 enclosure
- Long distance signal extension of digital video with embedded stereo audio, control signals over multimode fiber optic cabling
- Video input requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide one (1) female HDMI Type A connector with buffered loop-through
- Shall support the following HDMI 2.0 specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 18 Gbps – 6 Gbps per lane
- Shall support 12-bit color bit depth for resolutions up to 4K/60
- Embedded audio input requirements
- Shall provide one (1) female HDMI Type A connector – shared with video input
- Shall support PCM stereo audio formats
- Analog Audio input requirements
- Shall provide one (1) 3.5 mm stereo mini jack for unbalanced analog stereo
- Shall support embedding of analog stereo audio onto HDMI signals
- EDID communication requirements
- Shall include Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- USB HID input requirements
- Shall provide one (1) USB Type B connector for host devices
- Shall support host connection for USB HID
- Shall support device class filtering to limit device types to USB HID
- Shall provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Shall support data transfer rates up to 480 Mbps
- AV device control requirements
- Shall provide one (1) bidirectional RS-232 connector for control pass-through
- Shall support three modes of RS-232 insertion or pass-through for controlling local or remote devices
- RS-232 pass-through from the local RS-232 port on the module onto the fiber for communicating with a remote device or control system
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure to the local RS-232 port on the module for communicating with a local device
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure onto the fiber for communicating a remote device
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide three (3) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals over multimode fiber optic cabling
- Shall support transmission of uncompressed computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over two fibers
- Shall provide a fiber optic signal transmission distance capability of 500 m (1640 feet) over OM4 laser optimized multimode fiber optic cabling
- Shall support an optical loss budget of at least 9.7 dB between transmitter and receiver
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support user-selectable HDCP authorization to allow the transmitter to appear HDCP compliant or non‑HDCP compliant to the connected source
- Setup, control, and configuration requirements
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Setup, configuration, and firmware updates via the mini USB port on the enclosure front panel
- Setup, configuration, and control via the bidirectional RS-232 port on the enclosure rear panel
- Setup, configuration, control, and monitoring via an Ethernet connection to the RJ-45 port on the enclosure rear panel
- Setup and configuration without a computer using the front-panel controls and LCD on the enclosure
- Shall support Extron Product Configuration Software – PCS for setup and configuration
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Power requirements
- Shall be supplied power by a PowerCage 411 enclosure
- General requirements
- Shall provide internal color bars test pattern for calibration and setup
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least (3) three years parts and labor warranty
- Shall be compatible with Extron FOX3 Series fiber optic receivers
- Shall be compatible with Extron FOX3 Series matrix switchers to create an HDCP-compliant signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 T 311 MM (70-1223-13); no alternates or equals
70-1223-13 – FOX3 T 311 PC MM – Uncompressed 4K/60 Transmitter MM
- Shall provide a modular fiber optic transmitter that support the distribution of HDMI video, stereo audio, USB HID, and RS-232 control
- Single-slot module designed for the Extron PowerCage 411 enclosure
- Long distance signal extension of digital video with embedded stereo audio, control signals over multimode fiber optic cabling
- Video input requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide one (1) female HDMI Type A connector with buffered loop-through
- Shall support the following HDMI 2.0 specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 18 Gbps – 6 Gbps per lane
- Shall support 12-bit color bit depth for resolutions up to 4K/60
- Embedded audio input requirements
- Shall provide one (1) female HDMI Type A connector – shared with video input
- Shall support PCM stereo audio formats
- Analog Audio input requirements
- Shall provide one (1) 3.5 mm stereo mini jack for unbalanced analog stereo
- Shall support embedding of analog stereo audio onto HDMI signals
- EDID communication requirements
- Shall include Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- USB HID input requirements
- Shall provide one (1) USB Type B connector for host devices
- Shall support host connection for USB HID
- Shall support device class filtering to limit device types to USB HID
- Shall provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Shall support data transfer rates up to 480 Mbps
- AV device control requirements
- Shall provide one (1) bidirectional RS-232 connector for control pass-through
- Shall support three modes of RS-232 insertion or pass-through for controlling local or remote devices
- RS-232 pass-through from the local RS-232 port on the module onto the fiber for communicating with a remote device or control system
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure to the local RS-232 port on the module for communicating with a local device
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure onto the fiber for communicating a remote device
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide three (3) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals over multimode fiber optic cabling
- Shall support transmission of uncompressed computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over two fibers
- Shall provide a fiber optic signal transmission distance capability of 500 m (1640 feet) over OM4 laser optimized multimode fiber optic cabling
- Shall support an optical loss budget of at least 9.7 dB between transmitter and receiver
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support user-selectable HDCP authorization to allow the transmitter to appear HDCP compliant or non‑HDCP compliant to the connected source
- Setup, control, and configuration requirements
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Setup, configuration, and firmware updates via the mini USB port on the enclosure front panel
- Setup, configuration, and control via the bidirectional RS-232 port on the enclosure rear panel
- Setup, configuration, control, and monitoring via an Ethernet connection to the RJ-45 port on the enclosure rear panel
- Setup and configuration without a computer using the front-panel controls and LCD on the enclosure
- Shall support Extron Product Configuration Software – PCS for setup and configuration
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Power requirements
- Shall be supplied power by a PowerCage 411 enclosure
- General requirements
- Shall provide internal color bars test pattern for calibration and setup
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least (3) three years parts and labor warranty
- Shall be compatible with Extron FOX3 Series fiber optic receivers
- Shall be compatible with Extron FOX3 Series matrix switchers to create an HDCP-compliant signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 T 311 MM (70-1223-13); no alternates or equals
70-1223-14 – FOX3 T 311 PC SM – Uncompressed 4K/60 Transmitter SM
- Shall provide a modular fiber optic transmitter that support the distribution of HDMI video, stereo audio, USB HID, and RS-232 control
- Single-slot module designed for the Extron PowerCage 411 enclosure
- Long distance signal extension of digital video with embedded stereo audio, control signals over singlemode fiber optic cabling
- Video input requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide one (1) female HDMI Type A connector with buffered loop-through
- Shall support the following HDMI 2.0 specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 18 Gbps – 6 Gbps per lane
- Shall support 12-bit color bit depth for resolutions up to 4K/60
- Embedded audio input requirements
- Shall provide one (1) female HDMI Type A connector – shared with video input
- Shall support PCM stereo audio formats
- Analog Audio input requirements
- Shall provide one (1) 3.5 mm stereo mini jack for unbalanced analog stereo
- Shall support embedding of analog stereo audio onto HDMI signals
- EDID communication requirements
- Shall include Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- USB HID input requirements
- Shall provide one (1) USB Type B connector for host devices
- Shall support host connection for USB HID
- Shall support device class filtering to limit device types to USB HID
- Shall provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Shall support data transfer rates up to 480 Mbps
- AV device control requirements
- Shall provide one (1) bidirectional RS-232 connector for control pass-through
- Shall support three modes of RS-232 insertion or pass-through for controlling local or remote devices
- RS-232 pass-through from the local RS-232 port on the module onto the fiber for communicating with a remote device or control system
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure to the local RS-232 port on the module for communicating with a local device
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure onto the fiber for communicating a remote device
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide three (3) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals over singlemode fiber optic cabling
- Shall support transmission of uncompressed computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over two fibers
- Shall provide a fiber optic signal transmission distance capability of 20 km (12.4 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 7.4 dB between transmitter and receiver
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support user-selectable HDCP authorization to allow the transmitter to appear HDCP compliant or non‑HDCP compliant to the connected source
- Setup, control, and configuration requirements
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Setup, configuration, and firmware updates via the mini USB port on the enclosure front panel
- Setup, configuration, and control via the bidirectional RS-232 port on the enclosure rear panel
- Setup, configuration, control, and monitoring via an Ethernet connection to the RJ-45 port on the enclosure rear panel
- Setup and configuration without a computer using the front-panel controls and LCD on the enclosure
- Shall support Extron Product Configuration Software – PCS for setup and configuration
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Power requirements
- Shall be supplied power by a PowerCage 411 enclosure
- General requirements
- Shall provide internal color bars test pattern for calibration and setup
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least (3) three years parts and labor warranty
- Shall be compatible with Extron FOX3 Series fiber optic receivers
- Shall be compatible with Extron FOX3 Series matrix switchers to create an HDCP-compliant signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 T 311 MM (70-1223-13); no alternates or equals
70-1223-14 – FOX3 T 311 PC SM – Uncompressed 4K/60 Transmitter SM
- Shall provide a modular fiber optic transmitter that support the distribution of HDMI video, stereo audio, USB HID, and RS-232 control
- Single-slot module designed for the Extron PowerCage 411 enclosure
- Long distance signal extension of digital video with embedded stereo audio, control signals over singlemode fiber optic cabling
- Video input requirements
- Shall provide one (1) female HDMI Type A connector for digital video signals with embedded audio
- Shall provide one (1) female HDMI Type A connector with buffered loop-through
- Shall support the following HDMI 2.0 specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 18 Gbps – 6 Gbps per lane
- Shall support 12-bit color bit depth for resolutions up to 4K/60
- Embedded audio input requirements
- Shall provide one (1) female HDMI Type A connector – shared with video input
- Shall support PCM stereo audio formats
- Analog Audio input requirements
- Shall provide one (1) 3.5 mm stereo mini jack for unbalanced analog stereo
- Shall support embedding of analog stereo audio onto HDMI signals
- EDID communication requirements
- Shall include Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- USB HID input requirements
- Shall provide one (1) USB Type B connector for host devices
- Shall support host connection for USB HID
- Shall support device class filtering to limit device types to USB HID
- Shall provide peripheral emulation for a virtual connection of a keyboard and mouse to the host computer
- Shall support data transfer rates up to 480 Mbps
- AV device control requirements
- Shall provide one (1) bidirectional RS-232 connector for control pass-through
- Shall support three modes of RS-232 insertion or pass-through for controlling local or remote devices
- RS-232 pass-through from the local RS-232 port on the module onto the fiber for communicating with a remote device or control system
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure to the local RS-232 port on the module for communicating with a local device
- RS-232 insertion from the Ethernet port on the PowerCage 411 enclosure onto the fiber for communicating a remote device
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide three (3) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals over singlemode fiber optic cabling
- Shall support transmission of uncompressed computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over two fibers
- Shall provide a fiber optic signal transmission distance capability of 20 km (12.4 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 7.4 dB between transmitter and receiver
- HDCP requirements
- Shall be HDCP 2.3 compliant
- Shall include Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support user-selectable HDCP authorization to allow the transmitter to appear HDCP compliant or non‑HDCP compliant to the connected source
- Setup, control, and configuration requirements
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Setup, configuration, and firmware updates via the mini USB port on the enclosure front panel
- Setup, configuration, and control via the bidirectional RS-232 port on the enclosure rear panel
- Setup, configuration, control, and monitoring via an Ethernet connection to the RJ-45 port on the enclosure rear panel
- Setup and configuration without a computer using the front-panel controls and LCD on the enclosure
- Shall support Extron Product Configuration Software – PCS for setup and configuration
- Shall support module setup, configuration, and control via the PowerCage 411 enclosure
- Power requirements
- Shall be supplied power by a PowerCage 411 enclosure
- General requirements
- Shall provide internal color bars test pattern for calibration and setup
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least (3) three years parts and labor warranty
- Shall be compatible with Extron FOX3 Series fiber optic receivers
- Shall be compatible with Extron FOX3 Series matrix switchers to create an HDCP-compliant signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 T 311 MM (70-1223-13); no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
