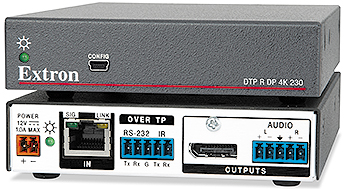

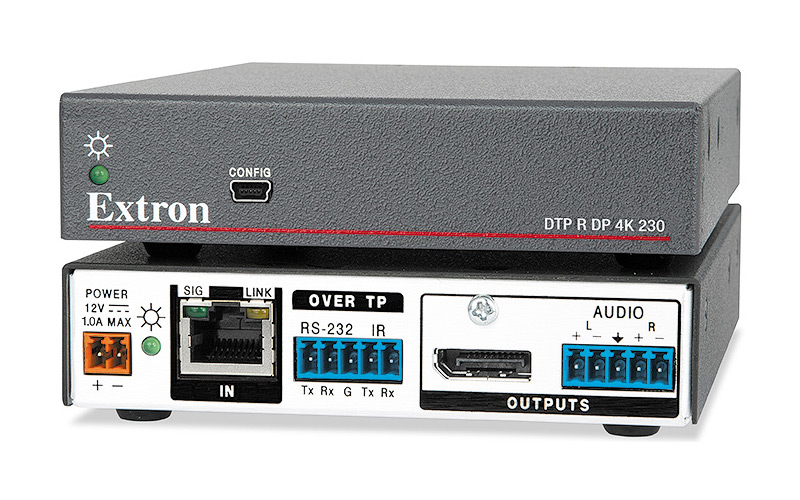

DTP R DP 4K 230

DTP R DP 4K 230

1. Provide a DisplayPort twisted pair receiver that shall support the distribution of video, audio, and control over a shielded CATx cable
   1. Rack-mountable receiver for DisplayPort, audio, and control
   2. Video output requirements
      1. Provide one (1) video output for digital video signals
         1. Shall support DisplayPort SST - Single Stream Transport data rates up to 10.8 Gbps
   3. Audio output requirements
      1. Support embedded digital audio on DisplayPort output
      2. Provide a dedicated analog audio output connection
         1. One (1) stereo analog audio
   4. Control output requirements
      1. Provide communication connections for AV device control
         1. One bidirectional RS-232 pass-through
         2. One bidirectional IR pass-through
   5. Interconnection requirements
      1. Support interconnection between receiver and transmitter or DTP®-enabled products
         1. One RJ-45 twisted pair connection
   6. Transmission requirements
      1. Provide signal transmission distance capability of 230 feet (70 m) at 1920x1200, including 1080p @ 60 Hz and 2K using a shielded CATx cable
      2. Support signal transmission distance capability of 4K @ 30 Hz, UHD, and 2560x1600 up to 130 feet (40 m) using a shielded CATx cable
      3. Support video, audio, and control over a single shielded CATx cable
      4. Support embedded HD lossless audio formats
      5. Actively buffer DDC channels
   7. Resolution requirements
      1. Support computer and video resolutions up to 4K, including 2560x1600 and 1080p/60 Deep Color
      2. Support RGB and YCbCr digital video formats
   8. Audio requirements
      1. The unit shall support analog stereo audio pass-through signals
      2. The unit shall support multiple embedded audio formats
      3. The unit shall support embedded HD lossless audio formats
   9. EDID Requirements
      1. Provide automatic EDID management between connected devices
         1. Provide a set of pre-stored EDID files
         2. Support capture of EDID from any connected display
         3. Support user uploading of custom-generated EDID files
         4. Support assignment of any pre-stored, captured, or custom uploaded EDID file to any input connection
   10. HDCP requirements
       1. The unit shall be HDCP compliant
   11. Communication requirements
       1. The unit shall support bidirectional RS-232 communication pass-through up to 115200 baud
       2. The unit shall support bidirectional IR pass-through
       3. The unit shall support EDID and HDCP transmission
   12. Power requirements
       1. The unit shall support remote power capability
       2. The unit shall support being locally powered
   13. General requirements
       1. The unit shall be HDCP compliant
       2. The unit shall be compatible with CATx shielded twisted pair cable, and Extron XTP DTP 24 shielded twisted pair cable
       3. The unit shall support DisplayPort SST - Single Stream Transport data rates up to 10.8 Gbps
       4. The unit shall support being locally or remotely powered
       5. The unit shall support embedded HD lossless audio formats
       6. The unit shall have a low profile enclosure and versatile mounting capability
       7. Shall provide visual indication for signal presence and power
       8. Shall meet regulatory compliances
          1. CE, c-UL, UL
          2. CE, C-tick, FCC Class A, ICES, VCCI
       9. Shall provide at least 3 years parts and labor warranty
       10. Shall be compatible with other DTP-enabled products
   14. Approved device shall be the Extron DTP R DP 4K 230 (60-1076-23); no alternates or equals
