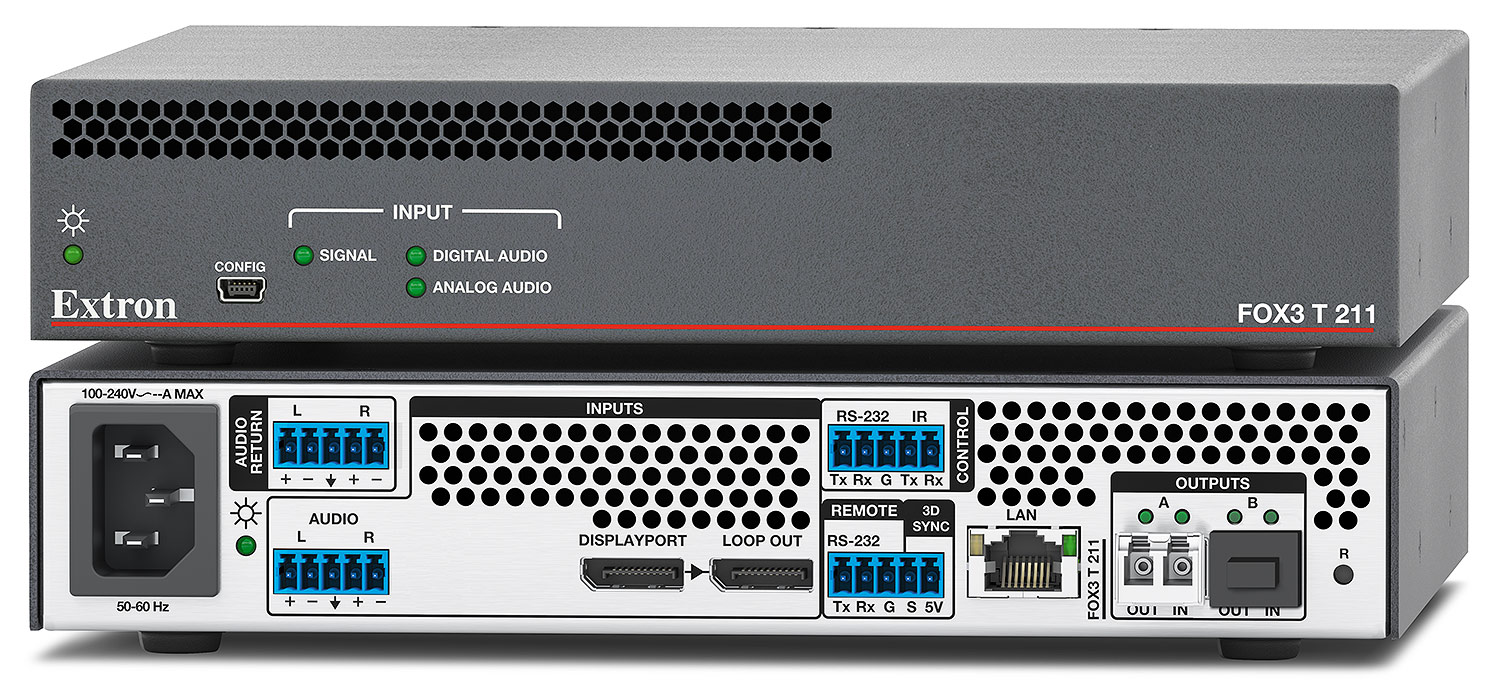

FOX3 T 211
建筑工程规范
选择一个产品编号：
复制文本
已复制！
发生错误。请稍后重试。
60-2090-11 - FOX3 T 211 MM - Lossless 4K/60 Transmitter - Multimode
- Shall provide a fiber optic transmitter that supports the distribution of DisplayPort video, stereo audio, RS-232 control, IR control, and 3D sync
- Long distance signal extension of digital video with embedded stereo audio, control, and 3D sync signals over multimode fiber optic cabling
- Video input requirements
- Shall provide one (1) female DisplayPort connector for digital video signals with embedded audio
- Shall provide one (1) female DisplayPort connector with buffered loop-through
- Shall support the following DisplayPort specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 21.6 Gbps – 5.4 Gbps per lane
- Shall support 12-bit color bit depth for resolutions up to 4K/60
- Shall provide one (1) two-pole captive screw connector on rear panel for a 3D sync signal
- Embedded audio input requirements
- Shall provide one (1) female DisplayPort connector – shared with video input
- Shall support PCM stereo audio
- Shall support HD lossless audio formats
- Analog Audio input requirements
- Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
- Shall provide embedding of analog stereo audio
- Shall provide gain and attenuation adjustment capability
- Audio return channel output requirements
- Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
- Shall provide an audio return channel for transmission of stereo audio from the receiver to the transmitter over fiber
- EDID communication requirements
- Shall include Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Control requirements
- Shall provide one (1) female mini USB port B on front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
- Shall provide one (1) bidirectional IR control port
- Shall support IR remote control pass-through transmission from the receiver to the transmitter for control of source equipment
- Shall support IR remote control pass-through transmission from the transmitter to the receiver for control of display equipment
- Shall provide one (1) Ethernet port on rear panel for the following functionalities:
- Support setup and configuration
- Support control signals from a control system
- Support Ethernet insertion of RS-232 signals for transmission to a FOX3 endpoint
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals over multimode fiber optic cabling
- Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
- Shall provide a fiber optic signal transmission distance capability of 500 m (1640 feet) over OM4 laser optimized multimode fiber optic cabling
- Shall support an optical loss budget of at least 8.3 dB between transmitter and receiver
- Power requirements
- Shall be equipped with an internal, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall provide internal color bars test pattern for calibration and setup
- Shall provide visual signal on LED indicators located on the front panel for DisplayPort video signal presence, digital audio input signal presence, analog audio input signal, USB HID presence, and power
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status, Ethernet link status, and power
- Shall have a 1U high, half rack width metal enclosure
- Shall be rack mountable with optional rack shelf
- Shall be furniture mountable with optional mounting kits
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least three years parts and labor warranty
- Shall be compatible with the Extron FOX3 SR 211 fiber optic scaling receiver
- Shall be compatible with Extron FOX3 Series fiber optic receivers and scaling receivers
- Shall be compatible with Extron FOX3 Series matrix switchers to create a signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 T 211 MM (60-2090-11); no alternates or equals
60-2090-11 - FOX3 T 211 MM - Lossless 4K/60 Transmitter - Multimode
- Shall provide a fiber optic transmitter that supports the distribution of DisplayPort video, stereo audio, RS-232 control, IR control, and 3D sync
- Long distance signal extension of digital video with embedded stereo audio, control, and 3D sync signals over multimode fiber optic cabling
- Video input requirements
- Shall provide one (1) female DisplayPort connector for digital video signals with embedded audio
- Shall provide one (1) female DisplayPort connector with buffered loop-through
- Shall support the following DisplayPort specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 21.6 Gbps – 5.4 Gbps per lane
- Shall support 12-bit color bit depth for resolutions up to 4K/60
- Shall provide one (1) two-pole captive screw connector on rear panel for a 3D sync signal
- Embedded audio input requirements
- Shall provide one (1) female DisplayPort connector – shared with video input
- Shall support PCM stereo audio
- Shall support HD lossless audio formats
- Analog Audio input requirements
- Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
- Shall provide embedding of analog stereo audio
- Shall provide gain and attenuation adjustment capability
- Audio return channel output requirements
- Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
- Shall provide an audio return channel for transmission of stereo audio from the receiver to the transmitter over fiber
- EDID communication requirements
- Shall include Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Control requirements
- Shall provide one (1) female mini USB port B on front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
- Shall provide one (1) bidirectional IR control port
- Shall support IR remote control pass-through transmission from the receiver to the transmitter for control of source equipment
- Shall support IR remote control pass-through transmission from the transmitter to the receiver for control of display equipment
- Shall provide one (1) Ethernet port on rear panel for the following functionalities:
- Support setup and configuration
- Support control signals from a control system
- Support Ethernet insertion of RS-232 signals for transmission to a FOX3 endpoint
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals over multimode fiber optic cabling
- Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
- Shall provide a fiber optic signal transmission distance capability of 500 m (1640 feet) over OM4 laser optimized multimode fiber optic cabling
- Shall support an optical loss budget of at least 8.3 dB between transmitter and receiver
- Power requirements
- Shall be equipped with an internal, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall provide internal color bars test pattern for calibration and setup
- Shall provide visual signal on LED indicators located on the front panel for DisplayPort video signal presence, digital audio input signal presence, analog audio input signal, USB HID presence, and power
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status, Ethernet link status, and power
- Shall have a 1U high, half rack width metal enclosure
- Shall be rack mountable with optional rack shelf
- Shall be furniture mountable with optional mounting kits
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least three years parts and labor warranty
- Shall be compatible with the Extron FOX3 SR 211 fiber optic scaling receiver
- Shall be compatible with Extron FOX3 Series fiber optic receivers and scaling receivers
- Shall be compatible with Extron FOX3 Series matrix switchers to create a signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 T 211 MM (60-2090-11); no alternates or equals
60-2090-12 - FOX3 T 211 SM - Lossless 4K/60 Transmitter - Singlemode
- Shall provide a fiber optic transmitter that supports the distribution of DisplayPort video, stereo audio, RS-232 control, IR control, and 3D sync
- Long distance signal extension of digital video with embedded stereo audio, control, and 3D sync signals over singlemode fiber optic cabling
- Video input requirements
- Shall provide one (1) female DisplayPort connector for digital video signals with embedded audio
- Shall provide one (1) female DisplayPort connector with buffered loop-through
- Shall support the following DisplayPort specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 21.6 Gbps – 5.4 Gbps per lane
- Shall support 12-bit color bit depth for resolutions up to 4K/60
- Shall provide one (1) two-pole captive screw connector on rear panel for a 3D sync signal
- Embedded audio input requirements
- Shall provide one (1) female DisplayPort connector – shared with video input
- Shall support PCM stereo audio
- Shall support HD lossless audio formats
- Analog Audio input requirements
- Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
- Shall provide embedding of analog stereo audio
- Shall provide gain and attenuation adjustment capability
- Audio return channel output requirements
- Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
- Shall provide an audio return channel for transmission of stereo audio from the receiver to the transmitter over fiber
- EDID communication requirements
- Shall include Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Control requirements
- Shall provide one (1) female mini USB port B on front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
- Shall provide one (1) bidirectional IR control port
- Shall support IR remote control pass-through transmission from the receiver to the transmitter for control of source equipment
- Shall support IR remote control pass-through transmission from the transmitter to the receiver for control of display equipment
- Shall provide one (1) Ethernet port on rear panel for the following functionalities:
- Support setup and configuration
- Support control signals from a control system
- Support Ethernet insertion of RS-232 signals for transmission to a FOX3 endpoint
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals over singlemode fiber optic cabling
- Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
- Shall provide a fiber optic signal transmission distance capability of 20 km (12.4 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 7.4 dB between transmitter and receiver
- Power requirements
- Shall be equipped with an internal, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall provide internal color bars test pattern for calibration and setup
- Shall provide visual signal on LED indicators located on the front panel for DisplayPort video signal presence, digital audio input signal presence, analog audio input signal, USB HID presence, and power
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status, Ethernet link status, and power
- Shall have a 1U high, half rack width metal enclosure
- Shall be rack mountable with optional rack shelf
- Shall be furniture mountable with optional mounting kits
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least three years parts and labor warranty
- Shall be compatible with the Extron FOX3 SR 211 fiber optic scaling receiver
- Shall be compatible with Extron FOX3 Series fiber optic receivers and scaling receivers
- Shall be compatible with Extron FOX3 Series matrix switchers to create a signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 T 211 SM (60-2090-12); no alternates or equals
60-2090-12 - FOX3 T 211 SM - Lossless 4K/60 Transmitter - Singlemode
- Shall provide a fiber optic transmitter that supports the distribution of DisplayPort video, stereo audio, RS-232 control, IR control, and 3D sync
- Long distance signal extension of digital video with embedded stereo audio, control, and 3D sync signals over singlemode fiber optic cabling
- Video input requirements
- Shall provide one (1) female DisplayPort connector for digital video signals with embedded audio
- Shall provide one (1) female DisplayPort connector with buffered loop-through
- Shall support the following DisplayPort specification features:
- Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
- Shall support data rates up to 21.6 Gbps – 5.4 Gbps per lane
- Shall support 12-bit color bit depth for resolutions up to 4K/60
- Shall provide one (1) two-pole captive screw connector on rear panel for a 3D sync signal
- Embedded audio input requirements
- Shall provide one (1) female DisplayPort connector – shared with video input
- Shall support PCM stereo audio
- Shall support HD lossless audio formats
- Analog Audio input requirements
- Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
- Shall provide embedding of analog stereo audio
- Shall provide gain and attenuation adjustment capability
- Audio return channel output requirements
- Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
- Shall provide an audio return channel for transmission of stereo audio from the receiver to the transmitter over fiber
- EDID communication requirements
- Shall include Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Control requirements
- Shall provide one (1) female mini USB port B on front panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
- Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
- Shall provide one (1) bidirectional IR control port
- Shall support IR remote control pass-through transmission from the receiver to the transmitter for control of source equipment
- Shall support IR remote control pass-through transmission from the transmitter to the receiver for control of display equipment
- Shall provide one (1) Ethernet port on rear panel for the following functionalities:
- Support setup and configuration
- Support control signals from a control system
- Support Ethernet insertion of RS-232 signals for transmission to a FOX3 endpoint
- Interconnection requirements
- Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
- Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
- Transmission requirements
- Shall support extension of video, audio, and control signals over singlemode fiber optic cabling
- Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
- Shall provide a fiber optic signal transmission distance capability of 20 km (12.4 miles) over singlemode fiber optic cabling
- Shall support an optical loss budget of at least 7.4 dB between transmitter and receiver
- Power requirements
- Shall be equipped with an internal, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
- General requirements
- Shall provide internal color bars test pattern for calibration and setup
- Shall provide visual signal on LED indicators located on the front panel for DisplayPort video signal presence, digital audio input signal presence, analog audio input signal, USB HID presence, and power
- Shall provide visual signal on LED indicators located on rear panel for fiber optic link status, Ethernet link status, and power
- Shall have a 1U high, half rack width metal enclosure
- Shall be rack mountable with optional rack shelf
- Shall be furniture mountable with optional mounting kits
- Shall meet regulatory compliance
- CE, c-UL, UL
- CE, C-tick, FCC Class A, ICES, VCCI
- Appropriate requirements of RoHS, WEEE
- Shall provide at least three years parts and labor warranty
- Shall be compatible with the Extron FOX3 SR 211 fiber optic scaling receiver
- Shall be compatible with Extron FOX3 Series fiber optic receivers and scaling receivers
- Shall be compatible with Extron FOX3 Series matrix switchers to create a signal distribution system up to 2000x2000 and larger
- Approved device shall be the Extron FOX3 T 211 SM (60-2090-12); no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
