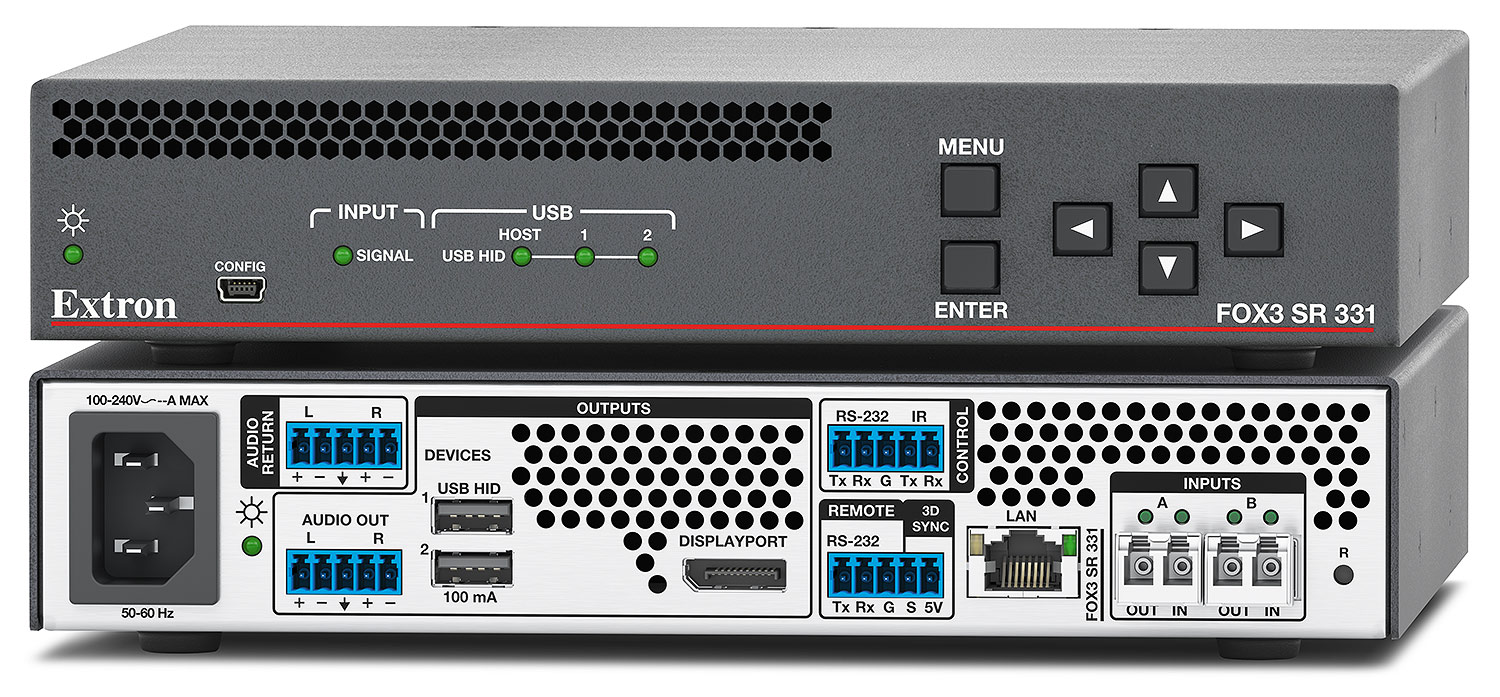

FOX3 SR 331

用于 DisplayPort、USB HID、音频、控制和 3D 同步信号的光纤图像解析度转换接收器

主要特性

即将推出支持 FOX3 Matrix 系统中的 KVM 系统配置和控制
即将推出屏幕显示功能可在工作站显示屏上提供信号源信息
接收来自 FOX3 系列发送器的光纤信号，并提供解析度转换的 DisplayPort 视频、USB HID、立体声音频、RS-232 控制、红外控制和 3D 同步信号
高性能图像解析度转换器支持高达 4096x2160 @ 60 Hz、带 4:4:4 色度取样的可选输出分辨率
通过单根光纤传输分辨率高达 4096x2160 @ 60 Hz、带 4:4:4 色度取样的数学无损 4K 视频信号
通过两根光纤传输分辨率高达 4096x2160 @ 60 Hz、带 4:4:4 色度取样的无压缩 4K 视频信号
所有特性

图片库

交互式概述

功能比较

顾问说明

8K Data Rate Calculator

LinkLicense 申领

概述
视频
描述
技术参数
示意图
面板图
下载

概述

Extron FOX3 SR 331 光纤图像解析度转换接收器通过光纤长距离传输 DisplayPort 视频、USB HID、立体声音频、控制、红外和 3D 同步信号。Extron FOX3 系统专为卓越的高分辨率图像性能而设计，可通过两根光纤以像素对像素的方式完美地传输分辨率高达 4K/60 @ 4:4:4 的无压缩图像内容，或通过单根光纤传输数学无损的 4K/60 @ 4:4:4 图像内容。USB HID 端口上的设备类别筛选功能可将设备类型限定为仅支持 HID。专为视音频和 KVM 系统而设计的 FOX3 SR 331 还具备诸多集成商友好特性，如 EDID Minder® 、音频解嵌、以太网监视和控制以及实时的系统监控。

视频

描述

技术参数

示意图

面板图

下载

近期查看的产品

FOX3 SR 331

DTP3 CrossPoint 42 系列

FOX3 SR 331

建筑工程规范

选择一个产品编号：

Select a Part Number:

复制文本已复制！发生错误。请稍后重试。

60-1778-21 - FOX3 SR 331 MM - Lossless 4K/60 Scaling Receiver - Multimode

Shall provide a fiber optic scaling receiver that supports the distribution of DisplayPort video, stereo audio, USB HID, RS-232 control, IR control, and 3D sync
1. Long distance signal extension of digital video with embedded stereo audio, USB HID, control, and 3D sync signals over multimode fiber optic cabling
2. Video output requirements
  1. Shall provide one (1) female DisplayPort connector for digital video signals with embedded audio
  2. Shall support the following DisplayPort specification features:
    1. Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
    2. Shall support data rates up to 21.6 Gbps – 5.4 Gbps per lane
    3. Shall support 10-bit color bit depth for resolutions up to 4K/60
  3. Shall provide selectable computer and video resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling
  4. Shall provide selectable aspect ratio control
    1. FILL mode – the video image shall always fill the output screen without letterbox or pillarbox
    2. FOLLOW mode – the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
  5. Shall provide one (1) two-pole captive screw connector on rear panel for a 3D sync signal
3. Embedded audio output requirements
  1. Shall provide one (1) female DisplayPort connector – shared with video input
  2. Shall support PCM stereo audio formats
  3. Shall support HD lossless audio formats
4. Analog Audio output requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide the de-embedding of analog stereo audio
  3. Shall provide capability to mute analog audio
5. Audio return channel input requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide an audio return channel for transmission of stereo audio from the receiver to the transmitter over fiber
6. USB HID output requirements
  1. Shall provide two (2) USB Type A connectors on the rear panel for peripheral devices
    1. Provide 5 Volts, 100 mA on each port to power a peripheral device
    2. Provide the capability to power a peripheral device that is connected to a USB HID port
  2. Shall support USB HID devices or smart card readers
  3. Shall support data transfer rates up to 480 Mbps
7. Control requirements
  1. Shall provide one (1) female mini USB port B on front panel for setup and configuration
  2. Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
  3. Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
  4. Shall provide one (1) bidirectional IR control port
  5. Shall support IR remote control pass-through transmission from the receiver to the transmitter for control of source equipment
  6. Shall support IR remote control pass-through transmission from the transmitter to the receiver for control of display equipment
  7. Shall provide one (1) Ethernet port on rear panel for the following functionalities:
    1. Support setup and configuration
    2. Support control signals from a control system
    3. Support Ethernet insertion of RS-232 signals for transmission to a FOX3 endpoint
8. Interconnection requirements
  1. Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
  2. Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
9. Transmission requirements
  1. Shall support extension of video, audio, USB HID, and control signals over multimode fiber optic cabling
  2. Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
  3. Shall provide a fiber optic signal transmission distance capability of 500 m (1640 feet) over OM4 laser optimized multimode fiber optic cabling
  4. Shall support an optical loss budget of at least 8.3 dB between transmitter and receiver
10. Power requirements
  1. Shall be equipped with an internal, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
11. General requirements
  1. Shall provide visual signal on LED indicators located on the front panel for DisplayPort video signal presence, USB HID presence, and power
  2. Shall provide visual signal on LED indicators located on rear panel for fiber optic link status, Ethernet link status, and power
  3. Shall have a 1U high, half rack width metal enclosure
  4. Shall be rack mountable with optional rack shelf
  5. Shall be furniture mountable with optional mounting kits
  6. Shall meet regulatory compliance
    1. CE, c-UL, UL
    2. CE, C-tick, FCC Class A, ICES, VCCI
    3. Appropriate requirements of RoHS, WEEE
  7. Shall provide at least three years parts and labor warranty
  8. Shall be compatible with the Extron FOX3 T 331 fiber optic transmitter
  9. Shall be compatible with Extron FOX3 Series fiber optic transmitters
  10. Shall be compatible with Extron FOX3 Series matrix switchers to create a DisplayPort signal distribution system up to 2000x2000 and larger
12. Approved device shall be the Extron FOX3 SR 331 MM (60-1778-21); no alternates or equals

60-1778-21 - FOX3 SR 331 MM - Lossless 4K/60 Scaling Receiver - Multimode

Shall provide a fiber optic scaling receiver that supports the distribution of DisplayPort video, stereo audio, USB HID, RS-232 control, IR control, and 3D sync
1. Long distance signal extension of digital video with embedded stereo audio, USB HID, control, and 3D sync signals over multimode fiber optic cabling
2. Video output requirements
  1. Shall provide one (1) female DisplayPort connector for digital video signals with embedded audio
  2. Shall support the following DisplayPort specification features:
    1. Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
    2. Shall support data rates up to 21.6 Gbps – 5.4 Gbps per lane
    3. Shall support 10-bit color bit depth for resolutions up to 4K/60
  3. Shall provide selectable computer and video resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling
  4. Shall provide selectable aspect ratio control
    1. FILL mode – the video image shall always fill the output screen without letterbox or pillarbox
    2. FOLLOW mode – the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
  5. Shall provide one (1) two-pole captive screw connector on rear panel for a 3D sync signal
3. Embedded audio output requirements
  1. Shall provide one (1) female DisplayPort connector – shared with video input
  2. Shall support PCM stereo audio formats
  3. Shall support HD lossless audio formats
4. Analog Audio output requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide the de-embedding of analog stereo audio
  3. Shall provide capability to mute analog audio
5. Audio return channel input requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide an audio return channel for transmission of stereo audio from the receiver to the transmitter over fiber
6. USB HID output requirements
  1. Shall provide two (2) USB Type A connectors on the rear panel for peripheral devices
    1. Provide 5 Volts, 100 mA on each port to power a peripheral device
    2. Provide the capability to power a peripheral device that is connected to a USB HID port
  2. Shall support USB HID devices or smart card readers
  3. Shall support data transfer rates up to 480 Mbps
7. Control requirements
  1. Shall provide one (1) female mini USB port B on front panel for setup and configuration
  2. Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
  3. Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
  4. Shall provide one (1) bidirectional IR control port
  5. Shall support IR remote control pass-through transmission from the receiver to the transmitter for control of source equipment
  6. Shall support IR remote control pass-through transmission from the transmitter to the receiver for control of display equipment
  7. Shall provide one (1) Ethernet port on rear panel for the following functionalities:
    1. Support setup and configuration
    2. Support control signals from a control system
    3. Support Ethernet insertion of RS-232 signals for transmission to a FOX3 endpoint
8. Interconnection requirements
  1. Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
  2. Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
9. Transmission requirements
  1. Shall support extension of video, audio, USB HID, and control signals over multimode fiber optic cabling
  2. Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
  3. Shall provide a fiber optic signal transmission distance capability of 500 m (1640 feet) over OM4 laser optimized multimode fiber optic cabling
  4. Shall support an optical loss budget of at least 8.3 dB between transmitter and receiver
10. Power requirements
  1. Shall be equipped with an internal, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
11. General requirements
  1. Shall provide visual signal on LED indicators located on the front panel for DisplayPort video signal presence, USB HID presence, and power
  2. Shall provide visual signal on LED indicators located on rear panel for fiber optic link status, Ethernet link status, and power
  3. Shall have a 1U high, half rack width metal enclosure
  4. Shall be rack mountable with optional rack shelf
  5. Shall be furniture mountable with optional mounting kits
  6. Shall meet regulatory compliance
    1. CE, c-UL, UL
    2. CE, C-tick, FCC Class A, ICES, VCCI
    3. Appropriate requirements of RoHS, WEEE
  7. Shall provide at least three years parts and labor warranty
  8. Shall be compatible with the Extron FOX3 T 331 fiber optic transmitter
  9. Shall be compatible with Extron FOX3 Series fiber optic transmitters
  10. Shall be compatible with Extron FOX3 Series matrix switchers to create a DisplayPort signal distribution system up to 2000x2000 and larger
12. Approved device shall be the Extron FOX3 SR 331 MM (60-1778-21); no alternates or equals

60-1778-22 - FOX3 SR 331 SM - Lossless 4K/60 Scaling Receiver - Singlemode

Shall provide a fiber optic scaling receiver that supports the distribution of DisplayPort video, stereo audio, USB HID, RS-232 control, IR control, and 3D sync
1. Long distance signal extension of digital video with embedded stereo audio, USB HID, control, and 3D sync signals over singlemode fiber optic cabling
2. Video output requirements
  1. Shall provide one (1) female DisplayPort connector for digital video signals with embedded audio
  2. Shall support the following DisplayPort specification features:
    1. Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
    2. Shall support data rates up to 21.6 Gbps – 5.4 Gbps per lane
    3. Shall support 10-bit color bit depth for resolutions up to 4K/60
  3. Shall provide selectable computer and video resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling
  4. Shall provide selectable aspect ratio control
    1. FILL mode – the video image shall always fill the output screen without letterbox or pillarbox
    2. FOLLOW mode – the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
  5. Shall provide one (1) two-pole captive screw connector on rear panel for a 3D sync signal
3. Embedded audio output requirements
  1. Shall provide one (1) female DisplayPort connector – shared with video input
  2. Shall support PCM stereo audio formats
  3. Shall support HD lossless audio formats
4. Analog Audio output requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide the de-embedding of analog stereo audio
  3. Shall provide capability to mute analog audio
5. Audio return channel input requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide an audio return channel for transmission of stereo audio from the receiver to the transmitter over fiber
6. USB HID output requirements
  1. Shall provide two (2) USB Type A connectors on the rear panel for peripheral devices
    1. Provide 5 Volts, 100 mA on each port to power a peripheral device
    2. Provide the capability to power a peripheral device that is connected to a USB HID port
  2. Shall support USB HID devices or smart card readers
  3. Shall support data transfer rates up to 480 Mbps
7. Control requirements
  1. Shall provide one (1) female mini USB port B on front panel for setup and configuration
  2. Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
  3. Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
  4. Shall provide one (1) bidirectional IR control port
  5. Shall support IR remote control pass-through transmission from the receiver to the transmitter for control of source equipment
  6. Shall support IR remote control pass-through transmission from the transmitter to the receiver for control of display equipment
  7. Shall provide one (1) Ethernet port on rear panel for the following functionalities:
    1. Support setup and configuration
    2. Support control signals from a control system
    3. Support Ethernet insertion of RS-232 signals for transmission to a FOX3 endpoint
8. Interconnection requirements
  1. Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
  2. Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
9. Transmission requirements
  1. Shall support extension of video, audio, USB HID, and control signals over singlemode fiber optic cabling
  2. Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
  3. Shall provide a fiber optic signal transmission distance capability of 20 km (12.4 miles) over singlemode fiber optic cabling
  4. Shall support an optical loss budget of at least 7.4 dB between transmitter and receiver
10. Power requirements
  1. Shall be equipped with an internal, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
11. General requirements
  1. Shall provide visual signal on LED indicators located on the front panel for DisplayPort video signal presence, USB HID presence, and power
  2. Shall provide visual signal on LED indicators located on rear panel for fiber optic link status, Ethernet link status, and power
  3. Shall have a 1U high, half rack width metal enclosure
  4. Shall be rack mountable with optional rack shelf
  5. Shall be furniture mountable with optional mounting kits
  6. Shall meet regulatory compliance
    1. CE, c-UL, UL
    2. CE, C-tick, FCC Class A, ICES, VCCI
    3. Appropriate requirements of RoHS, WEEE
  7. Shall provide at least three years parts and labor warranty
  8. Shall be compatible with the Extron FOX3 T 331 fiber optic transmitter
  9. Shall be compatible with Extron FOX3 Series fiber optic transmitters
  10. Shall be compatible with Extron FOX3 Series matrix switchers to create a DisplayPort signal distribution system up to 2000x2000 and larger
12. Approved device shall be the Extron FOX3 SR 331 SM (60-1778-22); no alternates or equals

60-1778-22 - FOX3 SR 331 SM - Lossless 4K/60 Scaling Receiver - Singlemode

Shall provide a fiber optic scaling receiver that supports the distribution of DisplayPort video, stereo audio, USB HID, RS-232 control, IR control, and 3D sync
1. Long distance signal extension of digital video with embedded stereo audio, USB HID, control, and 3D sync signals over singlemode fiber optic cabling
2. Video output requirements
  1. Shall provide one (1) female DisplayPort connector for digital video signals with embedded audio
  2. Shall support the following DisplayPort specification features:
    1. Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
    2. Shall support data rates up to 21.6 Gbps – 5.4 Gbps per lane
    3. Shall support 10-bit color bit depth for resolutions up to 4K/60
  3. Shall provide selectable computer and video resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling
  4. Shall provide selectable aspect ratio control
    1. FILL mode – the video image shall always fill the output screen without letterbox or pillarbox
    2. FOLLOW mode – the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
  5. Shall provide one (1) two-pole captive screw connector on rear panel for a 3D sync signal
3. Embedded audio output requirements
  1. Shall provide one (1) female DisplayPort connector – shared with video input
  2. Shall support PCM stereo audio formats
  3. Shall support HD lossless audio formats
4. Analog Audio output requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide the de-embedding of analog stereo audio
  3. Shall provide capability to mute analog audio
5. Audio return channel input requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide an audio return channel for transmission of stereo audio from the receiver to the transmitter over fiber
6. USB HID output requirements
  1. Shall provide two (2) USB Type A connectors on the rear panel for peripheral devices
    1. Provide 5 Volts, 100 mA on each port to power a peripheral device
    2. Provide the capability to power a peripheral device that is connected to a USB HID port
  2. Shall support USB HID devices or smart card readers
  3. Shall support data transfer rates up to 480 Mbps
7. Control requirements
  1. Shall provide one (1) female mini USB port B on front panel for setup and configuration
  2. Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
  3. Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
  4. Shall provide one (1) bidirectional IR control port
  5. Shall support IR remote control pass-through transmission from the receiver to the transmitter for control of source equipment
  6. Shall support IR remote control pass-through transmission from the transmitter to the receiver for control of display equipment
  7. Shall provide one (1) Ethernet port on rear panel for the following functionalities:
    1. Support setup and configuration
    2. Support control signals from a control system
    3. Support Ethernet insertion of RS-232 signals for transmission to a FOX3 endpoint
8. Interconnection requirements
  1. Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
  2. Shall provide two (2) LC-type fiber optic connectors for interconnection between transmitter and receiver
9. Transmission requirements
  1. Shall support extension of video, audio, USB HID, and control signals over singlemode fiber optic cabling
  2. Shall support transmission of mathematically lossless computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over one fiber
  3. Shall provide a fiber optic signal transmission distance capability of 20 km (12.4 miles) over singlemode fiber optic cabling
  4. Shall support an optical loss budget of at least 7.4 dB between transmitter and receiver
10. Power requirements
  1. Shall be equipped with an internal, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
11. General requirements
  1. Shall provide visual signal on LED indicators located on the front panel for DisplayPort video signal presence, USB HID presence, and power
  2. Shall provide visual signal on LED indicators located on rear panel for fiber optic link status, Ethernet link status, and power
  3. Shall have a 1U high, half rack width metal enclosure
  4. Shall be rack mountable with optional rack shelf
  5. Shall be furniture mountable with optional mounting kits
  6. Shall meet regulatory compliance
    1. CE, c-UL, UL
    2. CE, C-tick, FCC Class A, ICES, VCCI
    3. Appropriate requirements of RoHS, WEEE
  7. Shall provide at least three years parts and labor warranty
  8. Shall be compatible with the Extron FOX3 T 331 fiber optic transmitter
  9. Shall be compatible with Extron FOX3 Series fiber optic transmitters
  10. Shall be compatible with Extron FOX3 Series matrix switchers to create a DisplayPort signal distribution system up to 2000x2000 and larger
12. Approved device shall be the Extron FOX3 SR 331 SM (60-1778-22); no alternates or equals

60-1778-23 - FOX3 SR 331 MM - Uncompressed 4K/60 Scaling Receiver - Multimode

Shall provide a fiber optic scaling receiver that supports the distribution of DisplayPort video, stereo audio, USB HID, RS-232 control, IR control, and 3D sync
1. Long distance signal extension of digital video with embedded stereo audio, USB HID, control, and 3D sync signals over multimode fiber optic cabling
2. Video output requirements
  1. Shall provide one (1) female DisplayPort connector for digital video signals with embedded audio
  2. Shall support the following DisplayPort specification features:
    1. Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
    2. Shall support data rates up to 21.6 Gbps – 5.4 Gbps per lane
    3. Shall support 10-bit color bit depth for resolutions up to 4K/60
  3. Shall provide selectable computer and video resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling
  4. Shall provide selectable aspect ratio control
    1. FILL mode – the video image shall always fill the output screen without letterbox or pillarbox
    2. FOLLOW mode – the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
  5. Shall provide one (1) two-pole captive screw connector on rear panel for a 3D sync signal
3. Embedded audio output requirements
  1. Shall provide one (1) female DisplayPort connector – shared with video input
  2. Shall support PCM stereo audio formats
  3. Shall support HD lossless audio formats
4. Analog Audio output requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide the de-embedding of analog stereo audio
  3. Shall provide capability to mute analog audio
5. Audio return channel input requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide an audio return channel for transmission of stereo audio from the receiver to the transmitter over fiber
6. USB HID output requirements
  1. Shall provide two (2) USB Type A connectors on the rear panel for peripheral devices
    1. Provide 5 Volts, 100 mA on each port to power a peripheral device
    2. Provide the capability to power a peripheral device that is connected to a USB HID port
  2. Shall support USB HID devices or smart card readers
  3. Shall support data transfer rates up to 480 Mbps
7. Control requirements
  1. Shall provide one (1) female mini USB port B on front panel for setup and configuration
  2. Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
  3. Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
  4. Shall provide one (1) bidirectional IR control port
  5. Shall support IR remote control pass-through transmission from the receiver to the transmitter for control of source equipment
  6. Shall support IR remote control pass-through transmission from the transmitter to the receiver for control of display equipment
  7. Shall provide one (1) Ethernet port on rear panel for the following functionalities:
    1. Support setup and configuration
    2. Support control signals from a control system
    3. Support Ethernet insertion of RS-232 signals for transmission to a FOX3 endpoint
8. Interconnection requirements
  1. Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
  2. Shall provide three (3) LC-type fiber optic connectors for interconnection between transmitter and receiver
9. Transmission requirements
  1. Shall support extension of video, audio, USB HID, and control signals over multimode fiber optic cabling
  2. Shall support transmission of uncompressed computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over two fibers
  3. Shall provide a fiber optic signal transmission distance capability of 500 m (1640 feet) over OM4 laser optimized multimode fiber optic cabling
  4. Shall support an optical loss budget of at least 8.3 dB between transmitter and receiver
10. Power requirements
  1. Shall be equipped with an internal, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
11. General requirements
  1. Shall provide visual signal on LED indicators located on the front panel for DisplayPort video signal presence, USB HID presence, and power
  2. Shall provide visual signal on LED indicators located on rear panel for fiber optic link status, Ethernet link status, and power
  3. Shall have a 1U high, half rack width metal enclosure
  4. Shall be rack mountable with optional rack shelf
  5. Shall be furniture mountable with optional mounting kits
  6. Shall meet regulatory compliance
    1. CE, c-UL, UL
    2. CE, C-tick, FCC Class A, ICES, VCCI
    3. Appropriate requirements of RoHS, WEEE
  7. Shall provide at least three years parts and labor warranty
  8. Shall be compatible with the Extron FOX3 T 331 fiber optic transmitter
  9. Shall be compatible with Extron FOX3 Series fiber optic transmitters
  10. Shall be compatible with Extron FOX3 Series matrix switchers to create a DisplayPort signal distribution system up to 2000x2000 and larger
12. Approved device shall be the Extron FOX3 SR 331 MM (60-1778-23); no alternates or equals

60-1778-23 - FOX3 SR 331 MM - Uncompressed 4K/60 Scaling Receiver - Multimode

Shall provide a fiber optic scaling receiver that supports the distribution of DisplayPort video, stereo audio, USB HID, RS-232 control, IR control, and 3D sync
1. Long distance signal extension of digital video with embedded stereo audio, USB HID, control, and 3D sync signals over multimode fiber optic cabling
2. Video output requirements
  1. Shall provide one (1) female DisplayPort connector for digital video signals with embedded audio
  2. Shall support the following DisplayPort specification features:
    1. Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
    2. Shall support data rates up to 21.6 Gbps – 5.4 Gbps per lane
    3. Shall support 10-bit color bit depth for resolutions up to 4K/60
  3. Shall provide selectable computer and video resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling
  4. Shall provide selectable aspect ratio control
    1. FILL mode – the video image shall always fill the output screen without letterbox or pillarbox
    2. FOLLOW mode – the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
  5. Shall provide one (1) two-pole captive screw connector on rear panel for a 3D sync signal
3. Embedded audio output requirements
  1. Shall provide one (1) female DisplayPort connector – shared with video input
  2. Shall support PCM stereo audio formats
  3. Shall support HD lossless audio formats
4. Analog Audio output requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide the de-embedding of analog stereo audio
  3. Shall provide capability to mute analog audio
5. Audio return channel input requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide an audio return channel for transmission of stereo audio from the receiver to the transmitter over fiber
6. USB HID output requirements
  1. Shall provide two (2) USB Type A connectors on the rear panel for peripheral devices
    1. Provide 5 Volts, 100 mA on each port to power a peripheral device
    2. Provide the capability to power a peripheral device that is connected to a USB HID port
  2. Shall support USB HID devices or smart card readers
  3. Shall support data transfer rates up to 480 Mbps
7. Control requirements
  1. Shall provide one (1) female mini USB port B on front panel for setup and configuration
  2. Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
  3. Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
  4. Shall provide one (1) bidirectional IR control port
  5. Shall support IR remote control pass-through transmission from the receiver to the transmitter for control of source equipment
  6. Shall support IR remote control pass-through transmission from the transmitter to the receiver for control of display equipment
  7. Shall provide one (1) Ethernet port on rear panel for the following functionalities:
    1. Support setup and configuration
    2. Support control signals from a control system
    3. Support Ethernet insertion of RS-232 signals for transmission to a FOX3 endpoint
8. Interconnection requirements
  1. Shall provide interconnection between transmitter and receiver over multimode fiber optic cabling
  2. Shall provide three (3) LC-type fiber optic connectors for interconnection between transmitter and receiver
9. Transmission requirements
  1. Shall support extension of video, audio, USB HID, and control signals over multimode fiber optic cabling
  2. Shall support transmission of uncompressed computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over two fibers
  3. Shall provide a fiber optic signal transmission distance capability of 500 m (1640 feet) over OM4 laser optimized multimode fiber optic cabling
  4. Shall support an optical loss budget of at least 8.3 dB between transmitter and receiver
10. Power requirements
  1. Shall be equipped with an internal, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
11. General requirements
  1. Shall provide visual signal on LED indicators located on the front panel for DisplayPort video signal presence, USB HID presence, and power
  2. Shall provide visual signal on LED indicators located on rear panel for fiber optic link status, Ethernet link status, and power
  3. Shall have a 1U high, half rack width metal enclosure
  4. Shall be rack mountable with optional rack shelf
  5. Shall be furniture mountable with optional mounting kits
  6. Shall meet regulatory compliance
    1. CE, c-UL, UL
    2. CE, C-tick, FCC Class A, ICES, VCCI
    3. Appropriate requirements of RoHS, WEEE
  7. Shall provide at least three years parts and labor warranty
  8. Shall be compatible with the Extron FOX3 T 331 fiber optic transmitter
  9. Shall be compatible with Extron FOX3 Series fiber optic transmitters
  10. Shall be compatible with Extron FOX3 Series matrix switchers to create a DisplayPort signal distribution system up to 2000x2000 and larger
12. Approved device shall be the Extron FOX3 SR 331 MM (60-1778-23); no alternates or equals

60-1778-24 - FOX3 SR 331 SM - Uncompressed 4K/60 Scaling Receiver - Singlemode

Shall provide a fiber optic scaling receiver that supports the distribution of DisplayPort video, stereo audio, USB HID, RS-232 control, IR control, and 3D sync
1. Long distance signal extension of digital video with embedded stereo audio, USB HID, control, and 3D sync signals over singlemode fiber optic cabling
2. Video output requirements
  1. Shall provide one (1) female DisplayPort connector for digital video signals with embedded audio
  2. Shall support the following DisplayPort specification features:
    1. Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
    2. Shall support data rates up to 21.6 Gbps – 5.4 Gbps per lane
    3. Shall support 10-bit color bit depth for resolutions up to 4K/60
  3. Shall provide selectable computer and video resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling
  4. Shall provide selectable aspect ratio control
    1. FILL mode – the video image shall always fill the output screen without letterbox or pillarbox
    2. FOLLOW mode – the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
  5. Shall provide one (1) two-pole captive screw connector on rear panel for a 3D sync signal
3. Embedded audio output requirements
  1. Shall provide one (1) female DisplayPort connector – shared with video input
  2. Shall support PCM stereo audio formats
  3. Shall support HD lossless audio formats
4. Analog Audio output requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide the de-embedding of analog stereo audio
  3. Shall provide capability to mute analog audio
5. Audio return channel input requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide an audio return channel for transmission of stereo audio from the receiver to the transmitter over fiber
6. USB HID output requirements
  1. Shall provide two (2) USB Type A connectors on the rear panel for peripheral devices
    1. Provide 5 Volts, 100 mA on each port to power a peripheral device
    2. Provide the capability to power a peripheral device that is connected to a USB HID port
  2. Shall support USB HID devices or smart card readers
  3. Shall support data transfer rates up to 480 Mbps
7. Control requirements
  1. Shall provide one (1) female mini USB port B on front panel for setup and configuration
  2. Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
  3. Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
  4. Shall provide one (1) bidirectional IR control port
  5. Shall support IR remote control pass-through transmission from the receiver to the transmitter for control of source equipment
  6. Shall support IR remote control pass-through transmission from the transmitter to the receiver for control of display equipment
  7. Shall provide one (1) Ethernet port on rear panel for the following functionalities:
    1. Support setup and configuration
    2. Support control signals from a control system
    3. Support Ethernet insertion of RS-232 signals for transmission to a FOX3 endpoint
8. Interconnection requirements
  1. Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
  2. Shall provide three (3) LC-type fiber optic connectors for interconnection between transmitter and receiver
9. Transmission requirements
  1. Shall support extension of video, audio, USB HID, and control signals over singlemode fiber optic cabling
  2. Shall support transmission of uncompressed computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over two fibers
  3. Shall provide a fiber optic signal transmission distance capability of 20 km (1640 feet) over singlemode fiber optic cabling
  4. Shall support an optical loss budget of at least 7.4 dB between transmitter and receiver
10. Power requirements
  1. Shall be equipped with an internal, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
11. General requirements
  1. Shall provide visual signal on LED indicators located on the front panel for DisplayPort video signal presence, USB HID presence, and power
  2. Shall provide visual signal on LED indicators located on rear panel for fiber optic link status, Ethernet link status, and power
  3. Shall have a 1U high, half rack width metal enclosure
  4. Shall be rack mountable with optional rack shelf
  5. Shall be furniture mountable with optional mounting kits
  6. Shall meet regulatory compliance
    1. CE, c-UL, UL
    2. CE, C-tick, FCC Class A, ICES, VCCI
    3. Appropriate requirements of RoHS, WEEE
  7. Shall provide at least three years parts and labor warranty
  8. Shall be compatible with the Extron FOX3 T 331 fiber optic transmitter
  9. Shall be compatible with Extron FOX3 Series fiber optic transmitters
  10. Shall be compatible with Extron FOX3 Series matrix switchers to create a DisplayPort signal distribution system up to 2000x2000 and larger
12. Approved device shall be the Extron FOX3 SR 331 SM (60-1778-24); no alternates or equals

60-1778-24 - FOX3 SR 331 SM - Uncompressed 4K/60 Scaling Receiver - Singlemode

Shall provide a fiber optic scaling receiver that supports the distribution of DisplayPort video, stereo audio, USB HID, RS-232 control, IR control, and 3D sync
1. Long distance signal extension of digital video with embedded stereo audio, USB HID, control, and 3D sync signals over singlemode fiber optic cabling
2. Video output requirements
  1. Shall provide one (1) female DisplayPort connector for digital video signals with embedded audio
  2. Shall support the following DisplayPort specification features:
    1. Shall support computer and video resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling
    2. Shall support data rates up to 21.6 Gbps – 5.4 Gbps per lane
    3. Shall support 10-bit color bit depth for resolutions up to 4K/60
  3. Shall provide selectable computer and video resolutions up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling
  4. Shall provide selectable aspect ratio control
    1. FILL mode – the video image shall always fill the output screen without letterbox or pillarbox
    2. FOLLOW mode – the video image on the output screen shall always preserve the aspect ratio of the input signals without distortion
  5. Shall provide one (1) two-pole captive screw connector on rear panel for a 3D sync signal
3. Embedded audio output requirements
  1. Shall provide one (1) female DisplayPort connector – shared with video input
  2. Shall support PCM stereo audio formats
  3. Shall support HD lossless audio formats
4. Analog Audio output requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide the de-embedding of analog stereo audio
  3. Shall provide capability to mute analog audio
5. Audio return channel input requirements
  1. Shall provide one (1) 3.5 mm, 5-pole captive screw connector for balanced or unbalanced analog stereo
  2. Shall provide an audio return channel for transmission of stereo audio from the receiver to the transmitter over fiber
6. USB HID output requirements
  1. Shall provide two (2) USB Type A connectors on the rear panel for peripheral devices
    1. Provide 5 Volts, 100 mA on each port to power a peripheral device
    2. Provide the capability to power a peripheral device that is connected to a USB HID port
  2. Shall support USB HID devices or smart card readers
  3. Shall support data transfer rates up to 480 Mbps
7. Control requirements
  1. Shall provide one (1) female mini USB port B on front panel for setup and configuration
  2. Shall provide one (1) bidirectional RS-232 connector on rear panel for setup and configuration
  3. Shall provide one (1) bidirectional RS-232 connector on rear panel for control pass-through
  4. Shall provide one (1) bidirectional IR control port
  5. Shall support IR remote control pass-through transmission from the receiver to the transmitter for control of source equipment
  6. Shall support IR remote control pass-through transmission from the transmitter to the receiver for control of display equipment
  7. Shall provide one (1) Ethernet port on rear panel for the following functionalities:
    1. Support setup and configuration
    2. Support control signals from a control system
    3. Support Ethernet insertion of RS-232 signals for transmission to a FOX3 endpoint
8. Interconnection requirements
  1. Shall provide interconnection between transmitter and receiver over singlemode fiber optic cabling
  2. Shall provide three (3) LC-type fiber optic connectors for interconnection between transmitter and receiver
9. Transmission requirements
  1. Shall support extension of video, audio, USB HID, and control signals over singlemode fiber optic cabling
  2. Shall support transmission of uncompressed computer and video at resolutions up to 4096x2160 @ 60 Hz with 4:4:4 chroma sampling over two fibers
  3. Shall provide a fiber optic signal transmission distance capability of 20 km (1640 feet) over singlemode fiber optic cabling
  4. Shall support an optical loss budget of at least 7.4 dB between transmitter and receiver
10. Power requirements
  1. Shall be equipped with an internal, universal AC power supply capable of supporting 100 - 240 VAC, 50/60 Hz power
11. General requirements
  1. Shall provide visual signal on LED indicators located on the front panel for DisplayPort video signal presence, USB HID presence, and power
  2. Shall provide visual signal on LED indicators located on rear panel for fiber optic link status, Ethernet link status, and power
  3. Shall have a 1U high, half rack width metal enclosure
  4. Shall be rack mountable with optional rack shelf
  5. Shall be furniture mountable with optional mounting kits
  6. Shall meet regulatory compliance
    1. CE, c-UL, UL
    2. CE, C-tick, FCC Class A, ICES, VCCI
    3. Appropriate requirements of RoHS, WEEE
  7. Shall provide at least three years parts and labor warranty
  8. Shall be compatible with the Extron FOX3 T 331 fiber optic transmitter
  9. Shall be compatible with Extron FOX3 Series fiber optic transmitters
  10. Shall be compatible with Extron FOX3 Series matrix switchers to create a DisplayPort signal distribution system up to 2000x2000 and larger
12. Approved device shall be the Extron FOX3 SR 331 SM (60-1778-24); no alternates or equals

把商品添加到购物车

Order Message Number

产品编号

注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。

数量

当前总计：

查看购物车

FOX3 SR 331 -

产品详情

Annotation Graphics Processor

To view this page ensure that Adobe Flash Player version 11.0.0 or greater is installed and enabled.

通过邮件分享该项目

FOX3 SR 331

用于 DisplayPort、USB HID、音频、控制和 3D 同步信号的光纤图像解析度转换接收器

发送至： *

请输入一个有效的邮箱地址。

消息:

( 剩余字符)

发给我一个副本

谢谢。你的邮件已发送。

发送邮件时发生错误。请稍后再试。
