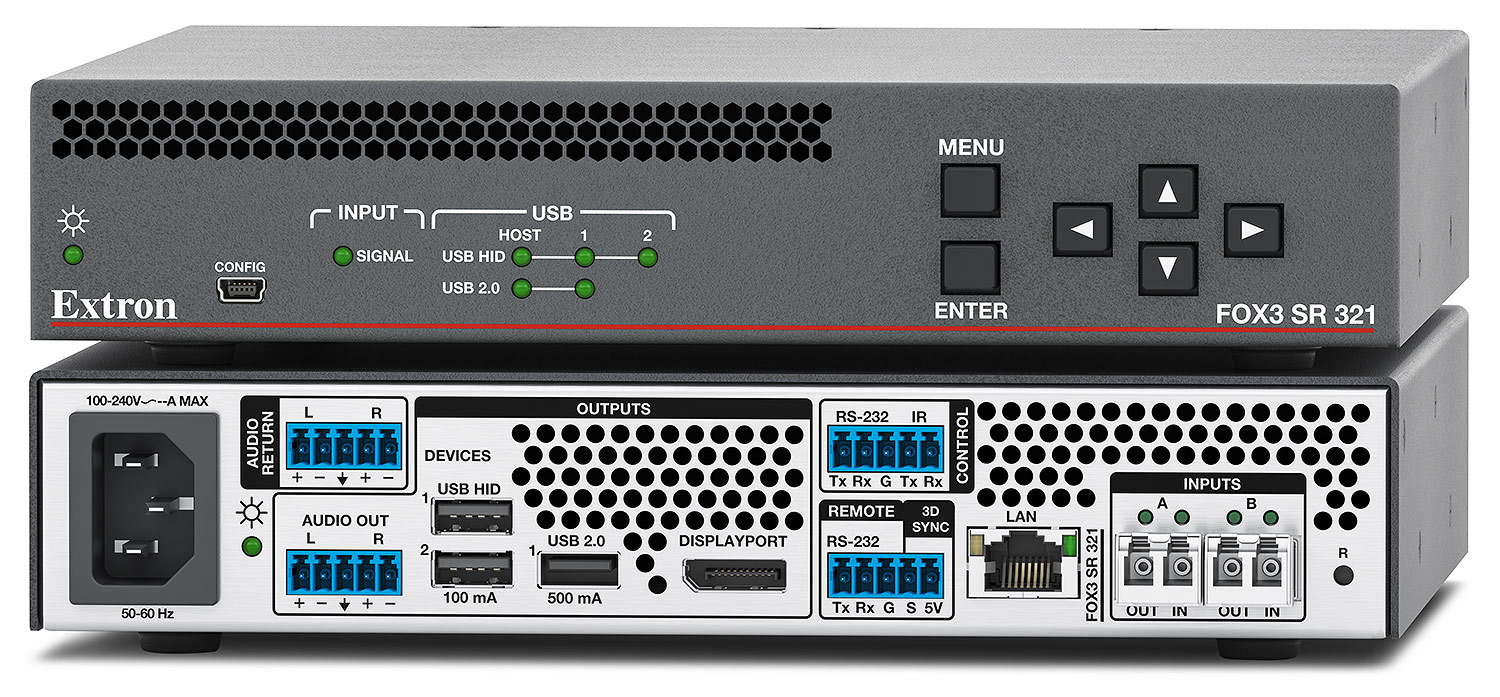

FOX3 SR 321

用于 DisplayPort、USB、音频、控制和 3D 同步信号的光纤图像解析度转换接收器

主要特性

即将推出屏幕显示功能可在工作站显示屏上提供信号源信息
接收来自 FOX3 系列发送器的光纤信号，并提供解析度转换的 DisplayPort 视频、USB、立体声音频、RS-232 控制、红外控制和 3D 同步信号
高性能的图像解析度转换器支持高达 4096x2160 @ 60 Hz、带 4:4:4 色度取样的可选输出分辨率
通过单根光纤传输分辨率高达 4096x2160 @ 60 Hz、带 4:4:4 色度取样的数学无损 4K 视频信号
通过两根光纤传输分辨率高达 4096x2160 @ 60 Hz、带 4:4:4 色度取样的无压缩 4K 视频信号
支持 DisplayPort 参数标准，包括高达 21.6 Gbps 的数据速率、高达 10 位的色深和 4:4:4 色度取样
