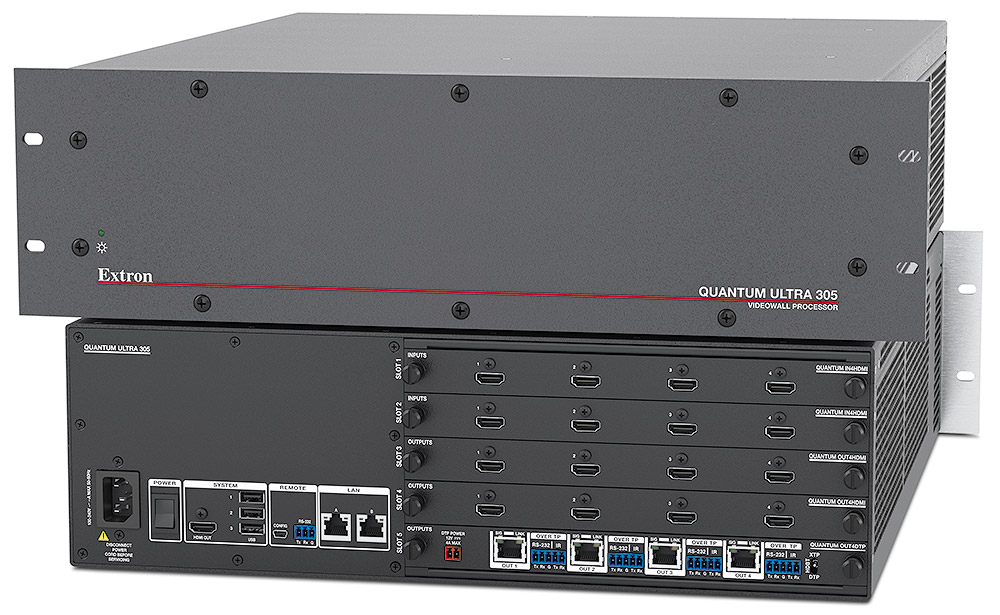

Quantum Ultra 305
- Provide a configurable videowall processor that shall support the real-time windowed display of multiple video, graphic, and still image sources on a single or tiled video display
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Consist of a 3U card frame with 5 total slots for input and output card combinations
- Support a maximum of 16 inputs in a single card frame when configured with digital high-resolution input cards and one output card
- Support a maximum of 16 outputs in a single card frame when configured with one input card

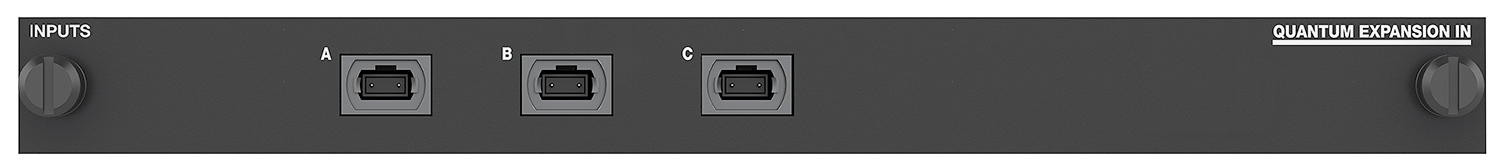

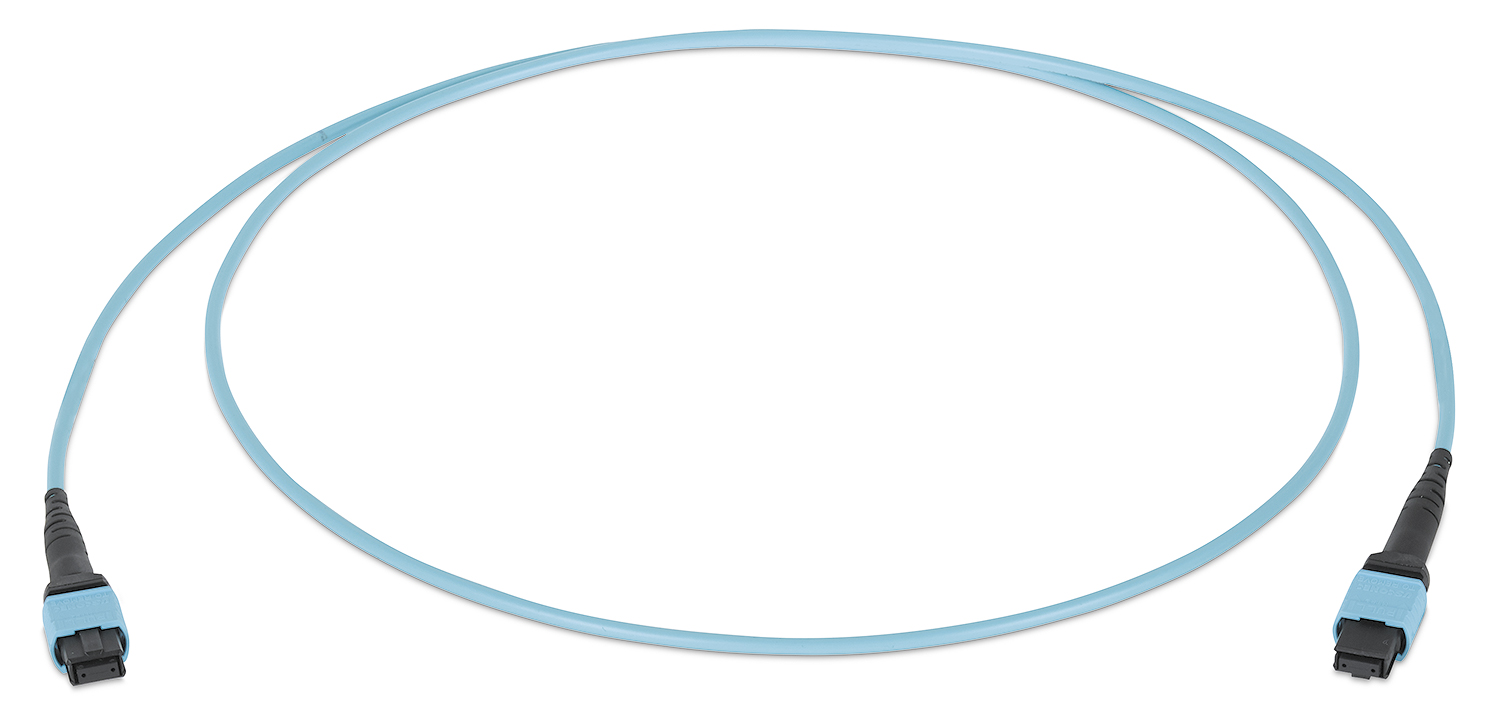

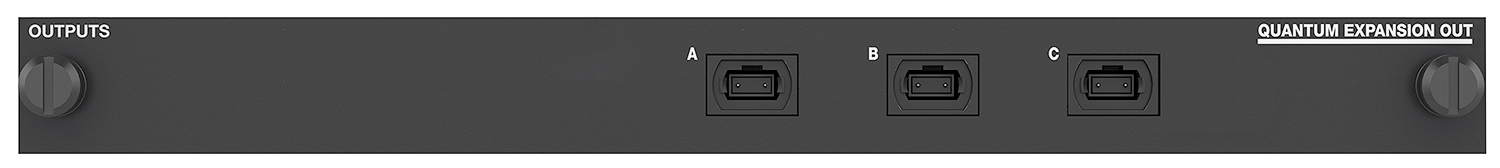

- Allow large input and output arrays by operating multiple card frames as a single addressable system from the control software
- Support multiple input signal formats via input card options
- Support multiple output signal formats via output card options
- Support field configuration of input and output cards
- Be equipped with front-panel LEDs to indicate fan and power supply status
- Provide automated notification of critical component failures
- Utilize solid-state storage for the operating system
- Utilize an embedded operating system
- Utilize a unidirectional, dedicated digital high-speed bus designed for sustained, real-time video source transport
- Be HDCP-compliant when HDMI input and output cards are used with HDCP-compliant displays
- Authenticate and maintain continuous HDCP encryption between input and output devices to ensure quick and proper display of HDCP-encrypted source signals on the videowall
- Present a window with an alert message if HDCP-encrypted content is sent to a non-HDCP compliant display
- Support 24/7 operation
- Take no longer than 90 seconds to boot and display video on all configured outputs
- Reboot to the state last shown at shutdown
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using DVI and HDMI standard
- Support factory or custom EDID tables
- Automatically maintain efficient use of video bus bandwidth by utilizing no more bandwidth than native resolution on bus for upscaled images and less bandwidth than native resolution for downscaled images
- Support horizontal and vertical bezel compensation for flat panel displays
- Support horizontal and vertical overlap capability for use in edge-blended applications up to 50% of display resolution
- Support output and source rotation in 90-degree increments for portrait or landscape display orientation
- Be capable of controlling multiple independent videowalls of varying resolutions and screen orientations from a single processor
- Impose no source window positioning restrictions, including overlay and overlap
- Allow source windows to be sized to any aspect ratio
- Provide up to 30 bit processing for input signals
- Provide display of multiple simultaneous VNC sources through multiple VNC serve/client sessions
- Provide display of picture files (BMP, PNG and JPG) sourced from the processor’s local storage medium, with support for transparency, keying, and alpha channels
- Allow the repeated display of a single source from one input channel at multiple scaled resolutions
- Allow the display of internally-generated windows containing static or dynamic text
- Allow the display of internally-generated time and date information with support for:
- multiple time zones
- Daylight savings time
- Allow for the display of timer windows with the ability to:
- Count up
- Count down
- Allow the display of user-definable text overlay messages within source windows
- Allow the display of customizable borders and titles surrounding source windows, with support for:
- Rounded corners
- Transparency
- Drop shadow
- Flashing
- Generate dynamically sized test patterns to facilitate display setup
- Videowall system shall provide the following security features:
- Encrypted data connection between control PC and videowall processor
- Digitally signed firmware upgrades
- Enabling and disabling of physical and IP ports
- Event logging to a file with user-definable maximum size
- Operating system shall be password protected with a user definable, changeable password
- Videowall processor shall be compatible with the following input and output cards
- HDMI input card shall:
- Support HDMI video signals
- Provide up to four female HDMI Type A connectors
- Accept up to four simultaneous inputs, each with pixel clocks up to 165 MHz, supporting resolutions up to 1920x1200 and 2K at 60 Hz
- Accept up to two simultaneous inputs, each with pixel clocks up to 300 MHz, supporting resolutions up to 4096x2160 at 30 Hz
- Support 4K/30 signals using one connection
- Support 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 135 kHz
- Support vertical frequencies from 24 Hz to 120 Hz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays when used with HDMI output cards.
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Provide a locking mechanism to secure HDMI cable connections
- HDMI output card which shall:
- Support HDMI video signals
- Provide up to four female HDMI Type A connectors
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Provide a locking mechanism to secure HDMI cable connections
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to to 32 times the output resolution horizontally and vertically

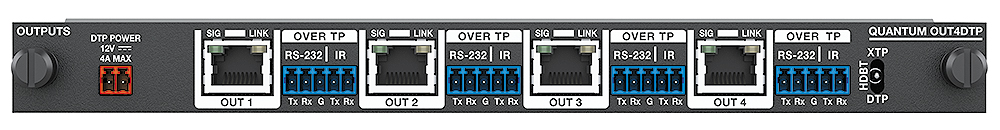

- A twisted-pair output card which shall:
- Support up to four outputs at distances up to 330 feet (100 meters) over shielded CATx cable
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 100 kHz
- Support vertical frequencies from 23.98 Hz to 75 Hz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port

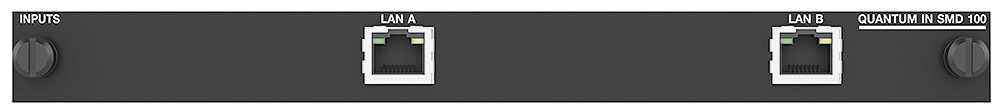

- A streaming video decoder card which shall:
- Support up to two independently-configurable network connections
- Be capable of decoding H-264/AVC, MPEG-2, and MJPEG video streams
- Support the video section of ONVIF Profile S
- Decode from four 1080p/60 to 16 standard-definition video streams
- Decode video streams with no more than 1 second of latency
- Provide 4:4:4 input sampling at up to 8 bits per color
- Perform downscaling to at least 1/100 of the native source resolution
- HDMI input card shall:
- Remote operation and system control shall:
- Be accessible from USB, RS-232, and Ethernet interfaces
- Be achieved with direct connection to the processor
- Allow control of:
- Setting window input source
- Window muting
- Window priority (layer)
- Window position and size adjust
- Window presets recall
- Recall window border style
- Set window text
- Video signal presence, by window
- Set/view IP settings (IP address, subnet, gateway)
- Reset
- Hardware failure alert
- Allow for independent preset and window control per screen group
- Control software shall be included with the videowall processor which shall:
- Operate on a PC independent of the videowall processor
- Provide network detection for videowall processor discovery
- Allow configuration of online processors
- Allow manual creation, definition and configuration of processors when offline
- Provide a graphical representation of the videowall onto which sources can be dragged and dropped to create window presets
- Allow for the creation of custom screen layouts in one or more virtual screen groups
- Allow for selection of output parameters, including:
- Resolution
- Refresh rate
- HDCP notification
- Output rotation in 90-degree increments
- Screen overlap
- Mullion compensation
- Allow output parameters to be set independently per screen group
- Allow creation of source definitions, including:
- Physical sources, via auto-detection or manual selection
- VNC Sources
- Static image sources
- Text sources
- Timer/Clock sources with:
- Timer direction control (count up/count down)
- Multiple time zones
- Daylight savings time support
- Allow for image adjustments of physical sources, including:
- Size
- Position
- Contrast
- Brightness
- Name
- Film mode
- Allow for the creation of window presets, with user control over:
- Window source
- Source size
- Window size
- Window position
- Window layer
- Window contents
- Window border
- Window title
- Window overlay
- Allow for the creation of 128 window presets per screen group
- Provide controls for system EDID management
- Allow creation of a password-protected Administrator account for system management
- Allow administrator to create password-protected User accounts
- Shall be JITC Certified
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Approved device shall be the Extron Quantum Ultra 305 (custom part number based on configuration); no alternates or equals
Quantum Ultra 305
- Provide a configurable videowall processor that shall support the real-time windowed display of multiple video, graphic, and still image sources on a single or tiled video display
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Consist of a 3U card frame with 5 total slots for input and output card combinations
- Support a maximum of 16 inputs in a single card frame when configured with digital high-resolution input cards and one output card
- Support a maximum of 16 outputs in a single card frame when configured with one input card
- Allow large input and output arrays by operating multiple card frames as a single addressable system from the control software
- Support multiple input signal formats via input card options
- Support multiple output signal formats via output card options
- Support field configuration of input and output cards
- Be equipped with front-panel LEDs to indicate fan and power supply status
- Provide automated notification of critical component failures
- Utilize solid-state storage for the operating system
- Utilize an embedded operating system
- Utilize a unidirectional, dedicated digital high-speed bus designed for sustained, real-time video source transport
- Be HDCP-compliant when HDMI input and output cards are used with HDCP-compliant displays
- Authenticate and maintain continuous HDCP encryption between input and output devices to ensure quick and proper display of HDCP-encrypted source signals on the videowall
- Present a window with an alert message if HDCP-encrypted content is sent to a non-HDCP compliant display
- Support 24/7 operation
- Take no longer than 90 seconds to boot and display video on all configured outputs
- Reboot to the state last shown at shutdown
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using DVI and HDMI standard
- Support factory or custom EDID tables
- Automatically maintain efficient use of video bus bandwidth by utilizing no more bandwidth than native resolution on bus for upscaled images and less bandwidth than native resolution for downscaled images
- Support horizontal and vertical bezel compensation for flat panel displays
- Support horizontal and vertical overlap capability for use in edge-blended applications up to 50% of display resolution
- Support output and source rotation in 90-degree increments for portrait or landscape display orientation
- Be capable of controlling multiple independent videowalls of varying resolutions and screen orientations from a single processor
- Impose no source window positioning restrictions, including overlay and overlap
- Allow source windows to be sized to any aspect ratio
- Provide up to 30 bit processing for input signals
- Provide display of multiple simultaneous VNC sources through multiple VNC serve/client sessions
- Provide display of picture files (BMP, PNG and JPG) sourced from the processor’s local storage medium, with support for transparency, keying, and alpha channels
- Allow the repeated display of a single source from one input channel at multiple scaled resolutions
- Allow the display of internally-generated windows containing static or dynamic text
- Allow the display of internally-generated time and date information with support for:
- multiple time zones
- Daylight savings time
- Allow for the display of timer windows with the ability to:
- Count up
- Count down
- Allow the display of user-definable text overlay messages within source windows
- Allow the display of customizable borders and titles surrounding source windows, with support for:
- Rounded corners
- Transparency
- Drop shadow
- Flashing
- Generate dynamically sized test patterns to facilitate display setup
- Videowall system shall provide the following security features:
- Encrypted data connection between control PC and videowall processor
- Digitally signed firmware upgrades
- Enabling and disabling of physical and IP ports
- Event logging to a file with user-definable maximum size
- Operating system shall be password protected with a user definable, changeable password
- Videowall processor shall be compatible with the following input and output cards
- HDMI input card shall:
- Support HDMI video signals
- Provide up to four female HDMI Type A connectors
- Accept up to four simultaneous inputs, each with pixel clocks up to 165 MHz, supporting resolutions up to 1920x1200 and 2K at 60 Hz
- Accept up to two simultaneous inputs, each with pixel clocks up to 300 MHz, supporting resolutions up to 4096x2160 at 30 Hz
- Support 4K/30 signals using one connection
- Support 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 135 kHz
- Support vertical frequencies from 24 Hz to 120 Hz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays when used with HDMI output cards.
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Provide a locking mechanism to secure HDMI cable connections
- HDMI output card which shall:
- Support HDMI video signals
- Provide up to four female HDMI Type A connectors
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Provide a locking mechanism to secure HDMI cable connections
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to to 32 times the output resolution horizontally and vertically
- A twisted-pair output card which shall:
- Support up to four outputs at distances up to 330 feet (100 meters) over shielded CATx cable
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 100 kHz
- Support vertical frequencies from 23.98 Hz to 75 Hz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port
- A streaming video decoder card which shall:
- Support up to two independently-configurable network connections
- Be capable of decoding H-264/AVC, MPEG-2, and MJPEG video streams
- Support the video section of ONVIF Profile S
- Decode from four 1080p/60 to 16 standard-definition video streams
- Decode video streams with no more than 1 second of latency
- Provide 4:4:4 input sampling at up to 8 bits per color
- Perform downscaling to at least 1/100 of the native source resolution
- HDMI input card shall:
- Remote operation and system control shall:
- Be accessible from USB, RS-232, and Ethernet interfaces
- Be achieved with direct connection to the processor
- Allow control of:
- Setting window input source
- Window muting
- Window priority (layer)
- Window position and size adjust
- Window presets recall
- Recall window border style
- Set window text
- Video signal presence, by window
- Set/view IP settings (IP address, subnet, gateway)
- Reset
- Hardware failure alert
- Allow for independent preset and window control per screen group
- Control software shall be included with the videowall processor which shall:
- Operate on a PC independent of the videowall processor
- Provide network detection for videowall processor discovery
- Allow configuration of online processors
- Allow manual creation, definition and configuration of processors when offline
- Provide a graphical representation of the videowall onto which sources can be dragged and dropped to create window presets
- Allow for the creation of custom screen layouts in one or more virtual screen groups
- Allow for selection of output parameters, including:
- Resolution
- Refresh rate
- HDCP notification
- Output rotation in 90-degree increments
- Screen overlap
- Mullion compensation
- Allow output parameters to be set independently per screen group
- Allow creation of source definitions, including:
- Physical sources, via auto-detection or manual selection
- VNC Sources
- Static image sources
- Text sources
- Timer/Clock sources with:
- Timer direction control (count up/count down)
- Multiple time zones
- Daylight savings time support
- Allow for image adjustments of physical sources, including:
- Size
- Position
- Contrast
- Brightness
- Name
- Film mode
- Allow for the creation of window presets, with user control over:
- Window source
- Source size
- Window size
- Window position
- Window layer
- Window contents
- Window border
- Window title
- Window overlay
- Allow for the creation of 128 window presets per screen group
- Provide controls for system EDID management
- Allow creation of a password-protected Administrator account for system management
- Allow administrator to create password-protected User accounts
- Shall be JITC Certified
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Approved device shall be the Extron Quantum Ultra 305 (custom part number based on configuration); no alternates or equals
Quantum Ultra 610
- Provide a configurable videowall processor that shall support the real-time windowed display of multiple video, graphic, and still image sources on a single or tiled video display
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Consist of a 6U card frame with 10 total slots for input and output card combinations
- Support a maximum of 36 inputs in a single card frame when configured with digital high resolution input cards and one output card
- Support a maximum of 36 outputs in a single card frame when configured with one input card
- Allow large input and output arrays by operating multiple card frames as a single addressable system from the control software
- Support multiple input signal formats via input card options
- Support multiple output signal formats via output card options
- Support field configuration of input and output cards
- Be equipped with dual redundant, hot swappable power supplies
- Be equipped with front-panel LEDs to indicate fan and power supply status
- Provide automated notification of critical component failures
- Utilize solid-state storage for the operating system
- Utilize an embedded operating system
- Utilize a unidirectional, dedicated digital high-speed bus designed for sustained, real-time video source transport
- Be HDCP-compliant when HDMI input and output cards are used with HDCP-compliant displays
- Authenticate and maintain continuous HDCP encryption between input and output devices to ensure quick and proper display of HDCP-encrypted source signals on the videowall
- Present a window with an alert message if HDCP-encrypted content is sent to a non-HDCP compliant display
- Support 24/7 operation
- Take no longer than 90 seconds to boot and display video on all configured outputs
- Reboot to the state last shown at shutdown
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using DVI and HDMI standard
- Support factory or custom EDID tables
- Automatically maintain efficient use of video bus bandwidth by utilizing no more bandwidth than native resolution on bus for upscaled images and less bandwidth than native resolution for downscaled images
- Support horizontal and vertical bezel compensation for flat panel displays
- Support horizontal and vertical overlap capability for use in edge-blended applications up to 50% of display resolution
- Support output and source rotation in 90-degree increments for portrait or landscape display orientation
- Be capable of controlling multiple independent videowalls of varying resolutions and screen orientations from a single processor
- Impose no source window positioning restrictions, including overlay and overlap
- Allow source windows to be sized to any aspect ratio
- Provide up to 30 bit processing for input signals
- Provide display of multiple simultaneous VNC sources through multiple VNC serve/client sessions
- Provide display of picture files (BMP, PNG and JPG) sourced from the processor’s local storage medium, with support for transparency, keying, and alpha channels
- Allow the repeated display of a single source from one input channel at multiple scaled resolutions
- Allow the display of internally-generated windows containing static or dynamic text
- Allow the display of internally-generated time and date information with support for:
- multiple time zones
- Daylight savings time
- Allow for the display of timer windows with the ability to:
- Count up
- Count down
- Allow the display of user-definable text overlay messages within source windows
- Allow the display of customizable borders and titles surrounding source windows, with support for:
- Rounded corners
- Transparency
- Drop shadow
- Flashing
- Generate dynamically sized test patterns to facilitate display setup
- Videowall system shall provide the following security features:
- Encrypted data connection between control PC and videowall processor
- Digitally signed firmware upgrades
- Enabling and disabling of physical and IP ports
- Event logging to a file with user-definable maximum size
- Operating system shall be password protected with a user definable, changeable password
- Videowall processor shall be compatible with the following input and output cards
- HDMI input card shall:
- Support HDMI video signals
- Provide up to four female HDMI Type A connectors
- Accept up to four simultaneous inputs, each with pixel clocks up to 165 MHz, supporting resolutions up to 1920x1200 and 2K at 60 Hz
- Accept up to two simultaneous inputs, each with pixel clocks up to 300 MHz, supporting resolutions up to 4096x2160 at 30 Hz
- Support 4K/30 signals using one connection
- Support 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 135 kHz
- Support vertical frequencies from 24 Hz to 120 Hz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays when used with HDMI output cards.
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Provide a locking mechanism to secure HDMI cable connections
- HDMI output card which shall:
- Support HDMI video signals
- Provide up to four female HDMI Type A connectors
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Provide a locking mechanism to secure HDMI cable connections
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to to 32 times the output resolution horizontally and vertically
- A twisted-pair output card which shall:
- Support up to four outputs at distances up to 330 feet (100 meters) over shielded CATx cable
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 100 kHz
- Support vertical frequencies from 23.98 Hz to 75 Hz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port
- A streaming video decoder card which shall:
- Support up to two independently-configurable network connections
- Be capable of decoding H-264/AVC, MPEG-2, and MJPEG video streams
- Support the video section of ONVIF Profile S
- Decode from four 1080p/60 to 16 standard-definition video streams
- Decode video streams with no more than 1 second of latency
- Provide 4:4:4 input sampling at up to 8 bits per color
- Perform downscaling to at least 1/100 of the native source resolution
- HDMI input card shall:
- Remote operation and system control shall:
- Be accessible from USB, RS-232, and Ethernet interfaces
- Be achieved with direct connection to the processor
- Allow control of:
- Setting window input source
- Window muting
- Window priority (layer)
- Window position and size adjust
- Window presets recall
- Recall window border style
- Set window text
- Video signal presence, by window
- Set/view IP settings (IP address, subnet, gateway)
- Reset
- Hardware failure alert
- Allow for independent preset and window control per screen group
- Control software shall be included with the videowall processor which shall:
- Operate on a PC independent of the videowall processor
- Provide network detection for videowall processor discovery
- Allow configuration of online processors
- Allow manual creation, definition and configuration of processors when offline
- Provide a graphical representation of the videowall onto which sources can be dragged and dropped to create window presets
- Allow for the creation of custom screen layouts in one or more virtual screen groups
- Allow for selection of output parameters, including:
- Resolution
- Refresh rate
- HDCP notification
- Output rotation in 90-degree increments
- Screen overlap
- Mullion compensation
- Allow output parameters to be set independently per screen group
- Allow creation of source definitions, including:
- Physical sources, via auto-detection or manual selection
- VNC Sources
- Static image sources
- Text sources
- Timer/Clock sources with:
- Timer direction control (count up/count down)
- Multiple time zones
- Daylight savings time support
- Allow for image adjustments of physical sources, including:
- Size
- Position
- Contrast
- Brightness
- Name
- Film mode
- Allow for the creation of window presets, with user control over:
- Window source
- Source size
- Window size
- Window position
- Window layer
- Window contents
- Window border
- Window title
- Window overlay
- Allow for the creation of 128 window presets per screen group
- Provide controls for system EDID management
- Allow creation of a password-protected Administrator account for system management
- Allow administrator to create password-protected User accounts
- Shall be JITC Certified
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Approved device shall be the Extron Quantum Ultra 610 (custom part number based on configuration); no alternates or equals

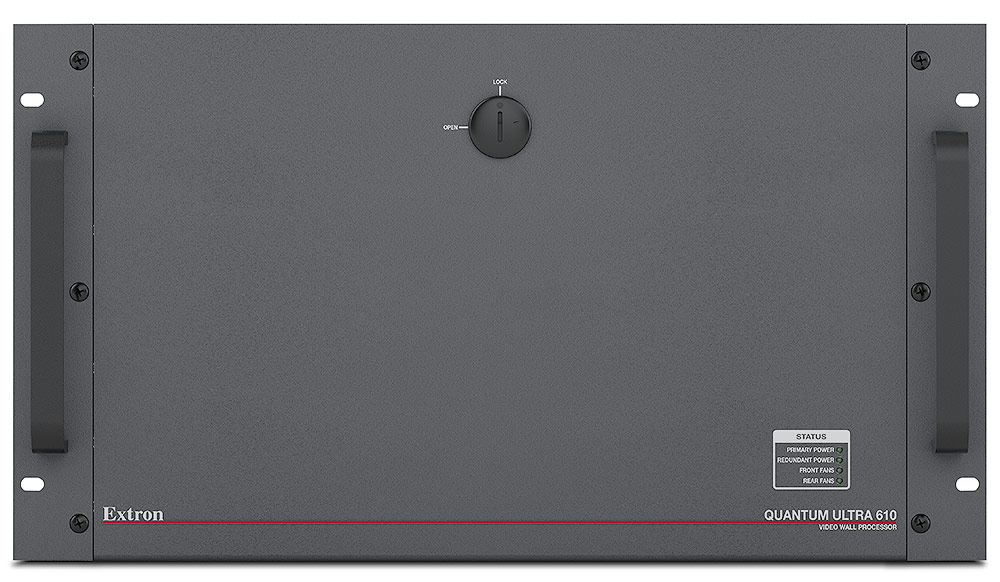

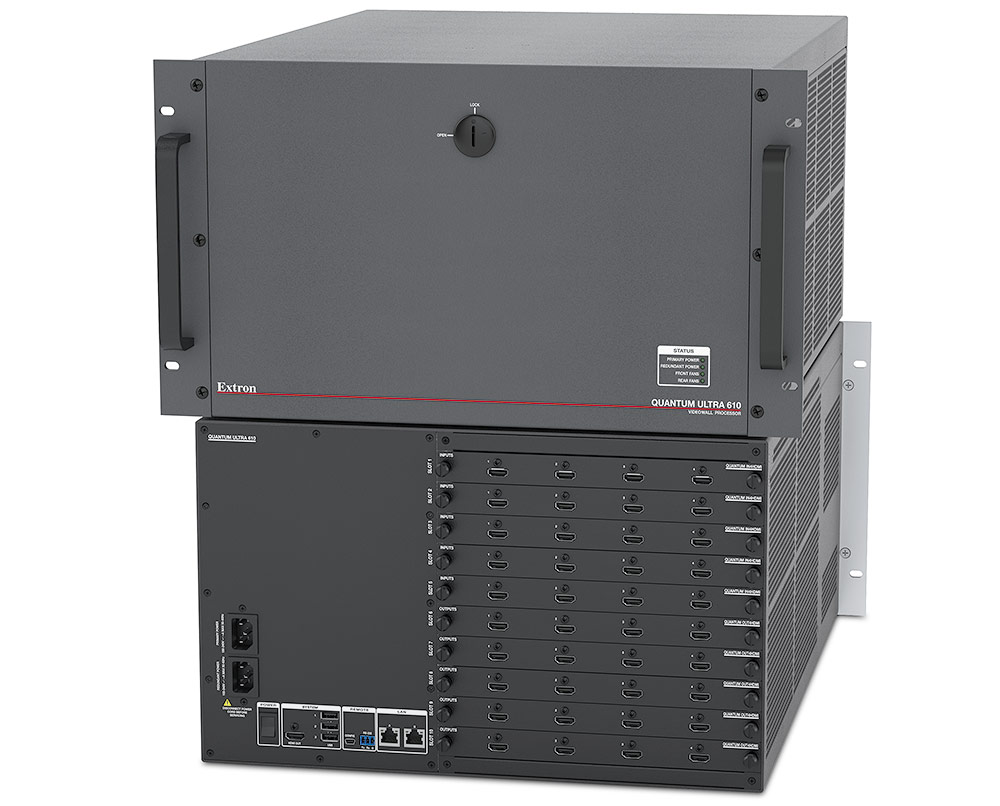

Quantum Ultra 610
- Provide a configurable videowall processor that shall support the real-time windowed display of multiple video, graphic, and still image sources on a single or tiled video display
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Consist of a 6U card frame with 10 total slots for input and output card combinations
- Support a maximum of 36 inputs in a single card frame when configured with digital high resolution input cards and one output card
- Support a maximum of 36 outputs in a single card frame when configured with one input card
- Allow large input and output arrays by operating multiple card frames as a single addressable system from the control software
- Support multiple input signal formats via input card options
- Support multiple output signal formats via output card options
- Support field configuration of input and output cards
- Be equipped with dual redundant, hot swappable power supplies
- Be equipped with front-panel LEDs to indicate fan and power supply status
- Provide automated notification of critical component failures
- Utilize solid-state storage for the operating system
- Utilize an embedded operating system
- Utilize a unidirectional, dedicated digital high-speed bus designed for sustained, real-time video source transport
- Be HDCP-compliant when HDMI input and output cards are used with HDCP-compliant displays
- Authenticate and maintain continuous HDCP encryption between input and output devices to ensure quick and proper display of HDCP-encrypted source signals on the videowall
- Present a window with an alert message if HDCP-encrypted content is sent to a non-HDCP compliant display
- Support 24/7 operation
- Take no longer than 90 seconds to boot and display video on all configured outputs
- Reboot to the state last shown at shutdown
- Support Extended Display Identification Data – EDID and Display Data Channel – DDC data using DVI and HDMI standard
- Support factory or custom EDID tables
- Automatically maintain efficient use of video bus bandwidth by utilizing no more bandwidth than native resolution on bus for upscaled images and less bandwidth than native resolution for downscaled images
- Support horizontal and vertical bezel compensation for flat panel displays
- Support horizontal and vertical overlap capability for use in edge-blended applications up to 50% of display resolution
- Support output and source rotation in 90-degree increments for portrait or landscape display orientation
- Be capable of controlling multiple independent videowalls of varying resolutions and screen orientations from a single processor
- Impose no source window positioning restrictions, including overlay and overlap
- Allow source windows to be sized to any aspect ratio
- Provide up to 30 bit processing for input signals
- Provide display of multiple simultaneous VNC sources through multiple VNC serve/client sessions
- Provide display of picture files (BMP, PNG and JPG) sourced from the processor’s local storage medium, with support for transparency, keying, and alpha channels
- Allow the repeated display of a single source from one input channel at multiple scaled resolutions
- Allow the display of internally-generated windows containing static or dynamic text
- Allow the display of internally-generated time and date information with support for:
- multiple time zones
- Daylight savings time
- Allow for the display of timer windows with the ability to:
- Count up
- Count down
- Allow the display of user-definable text overlay messages within source windows
- Allow the display of customizable borders and titles surrounding source windows, with support for:
- Rounded corners
- Transparency
- Drop shadow
- Flashing
- Generate dynamically sized test patterns to facilitate display setup
- Videowall system shall provide the following security features:
- Encrypted data connection between control PC and videowall processor
- Digitally signed firmware upgrades
- Enabling and disabling of physical and IP ports
- Event logging to a file with user-definable maximum size
- Operating system shall be password protected with a user definable, changeable password

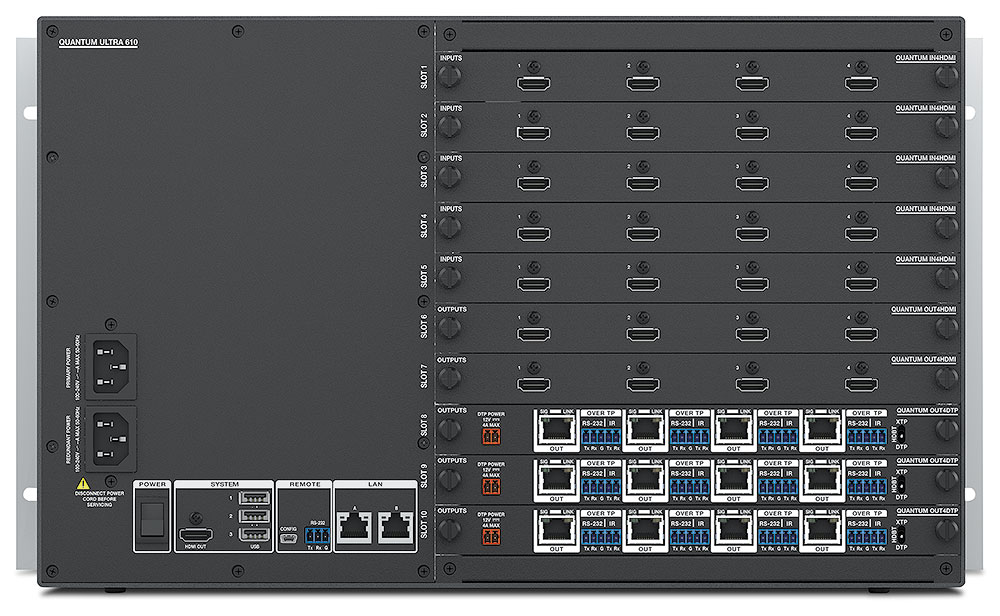

- Videowall processor shall be compatible with the following input and output cards
- HDMI input card shall:
- Support HDMI video signals
- Provide up to four female HDMI Type A connectors
- Accept up to four simultaneous inputs, each with pixel clocks up to 165 MHz, supporting resolutions up to 1920x1200 and 2K at 60 Hz
- Accept up to two simultaneous inputs, each with pixel clocks up to 300 MHz, supporting resolutions up to 4096x2160 at 30 Hz
- Support 4K/30 signals using one connection
- Support 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 135 kHz
- Support vertical frequencies from 24 Hz to 120 Hz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays when used with HDMI output cards.
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Provide a locking mechanism to secure HDMI cable connections
- HDMI output card which shall:
- Support HDMI video signals
- Provide up to four female HDMI Type A connectors
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Provide a locking mechanism to secure HDMI cable connections
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to to 32 times the output resolution horizontally and vertically
- A twisted-pair output card which shall:
- Support up to four outputs at distances up to 330 feet (100 meters) over shielded CATx cable
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 100 kHz
- Support vertical frequencies from 23.98 Hz to 75 Hz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port
- A streaming video decoder card which shall:
- Support up to two independently-configurable network connections
- Be capable of decoding H-264/AVC, MPEG-2, and MJPEG video streams
- Support the video section of ONVIF Profile S
- Decode from four 1080p/60 to 16 standard-definition video streams
- Decode video streams with no more than 1 second of latency
- Provide 4:4:4 input sampling at up to 8 bits per color
- Perform downscaling to at least 1/100 of the native source resolution
- HDMI input card shall:
- Remote operation and system control shall:
- Be accessible from USB, RS-232, and Ethernet interfaces
- Be achieved with direct connection to the processor
- Allow control of:
- Setting window input source
- Window muting
- Window priority (layer)
- Window position and size adjust
- Window presets recall
- Recall window border style
- Set window text
- Video signal presence, by window
- Set/view IP settings (IP address, subnet, gateway)
- Reset
- Hardware failure alert
- Allow for independent preset and window control per screen group
- Control software shall be included with the videowall processor which shall:
- Operate on a PC independent of the videowall processor
- Provide network detection for videowall processor discovery
- Allow configuration of online processors
- Allow manual creation, definition and configuration of processors when offline
- Provide a graphical representation of the videowall onto which sources can be dragged and dropped to create window presets
- Allow for the creation of custom screen layouts in one or more virtual screen groups
- Allow for selection of output parameters, including:
- Resolution
- Refresh rate
- HDCP notification
- Output rotation in 90-degree increments
- Screen overlap
- Mullion compensation
- Allow output parameters to be set independently per screen group
- Allow creation of source definitions, including:
- Physical sources, via auto-detection or manual selection
- VNC Sources
- Static image sources
- Text sources
- Timer/Clock sources with:
- Timer direction control (count up/count down)
- Multiple time zones
- Daylight savings time support
- Allow for image adjustments of physical sources, including:
- Size
- Position
- Contrast
- Brightness
- Name
- Film mode
- Allow for the creation of window presets, with user control over:
- Window source
- Source size
- Window size
- Window position
- Window layer
- Window contents
- Window border
- Window title
- Window overlay
- Allow for the creation of 128 window presets per screen group
- Provide controls for system EDID management
- Allow creation of a password-protected Administrator account for system management
- Allow administrator to create password-protected User accounts
- Shall be JITC Certified
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Approved device shall be the Extron Quantum Ultra 610 (custom part number based on configuration); no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
