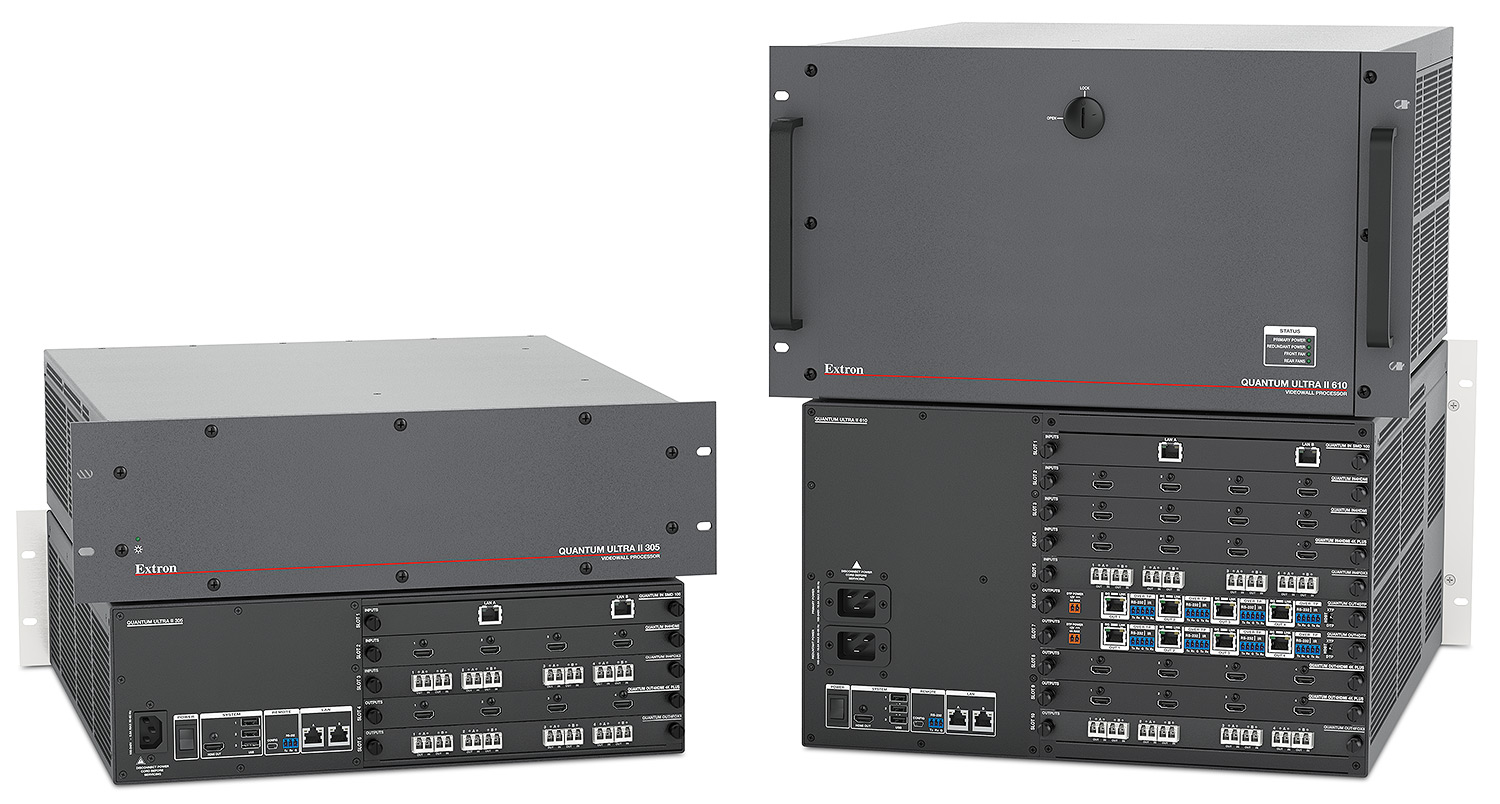

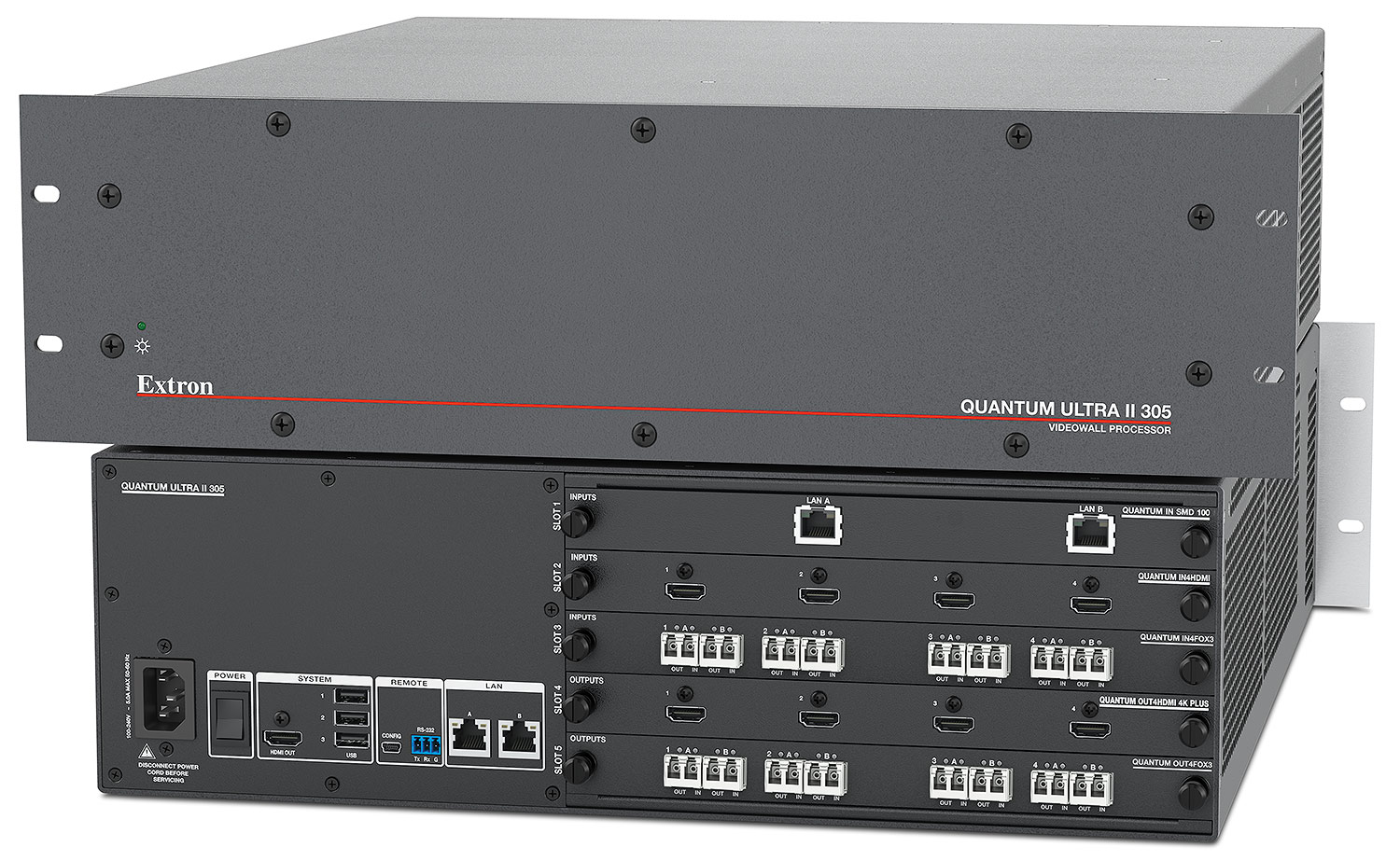

Quantum Ultra II 305
- Provide a configurable videowall processor that shall support the real-time windowed display of multiple video, graphic, and still image sources on a single or tiled video display
- Rack mountable videowall processor for source windowing on single or tiled displays shall:

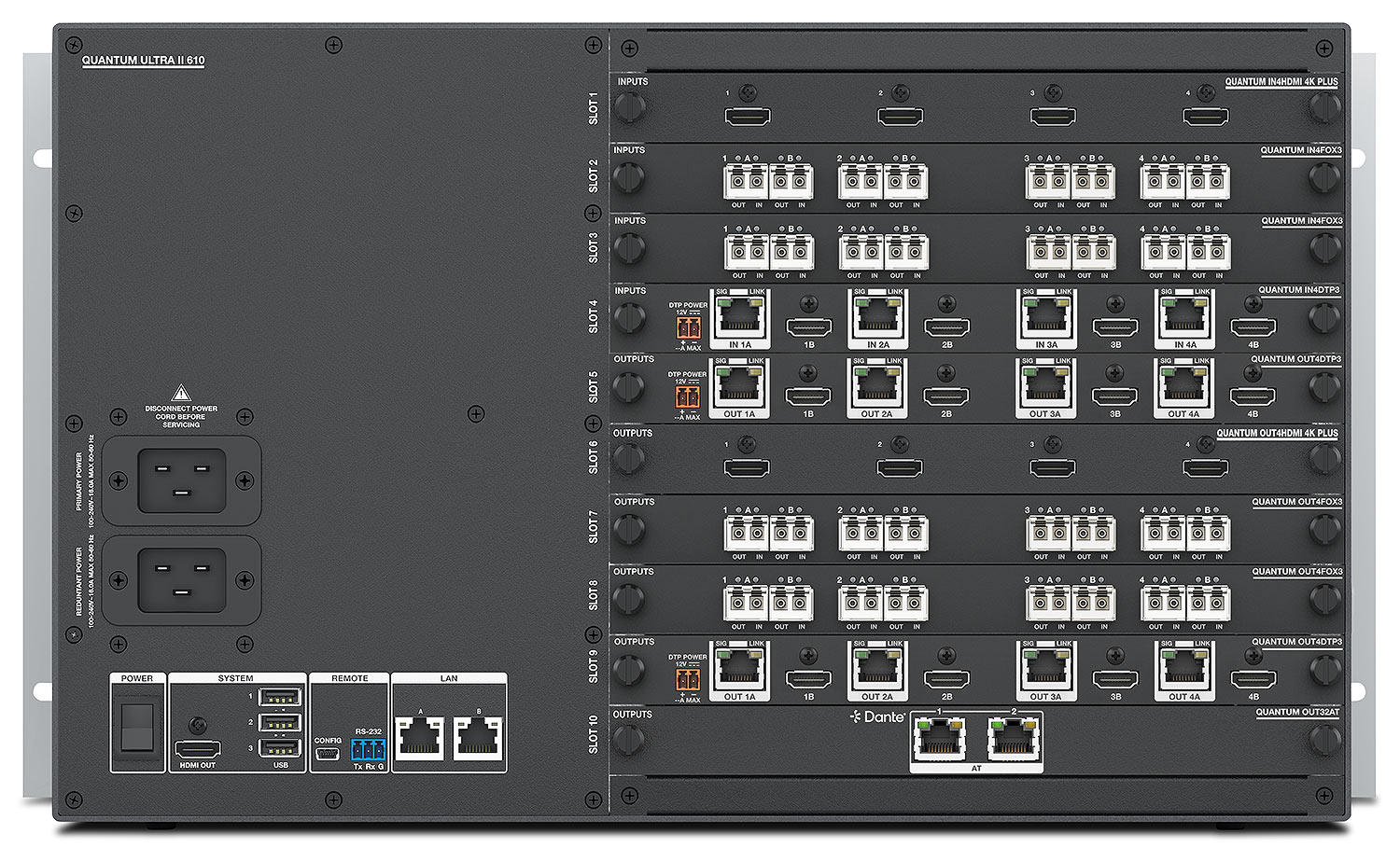

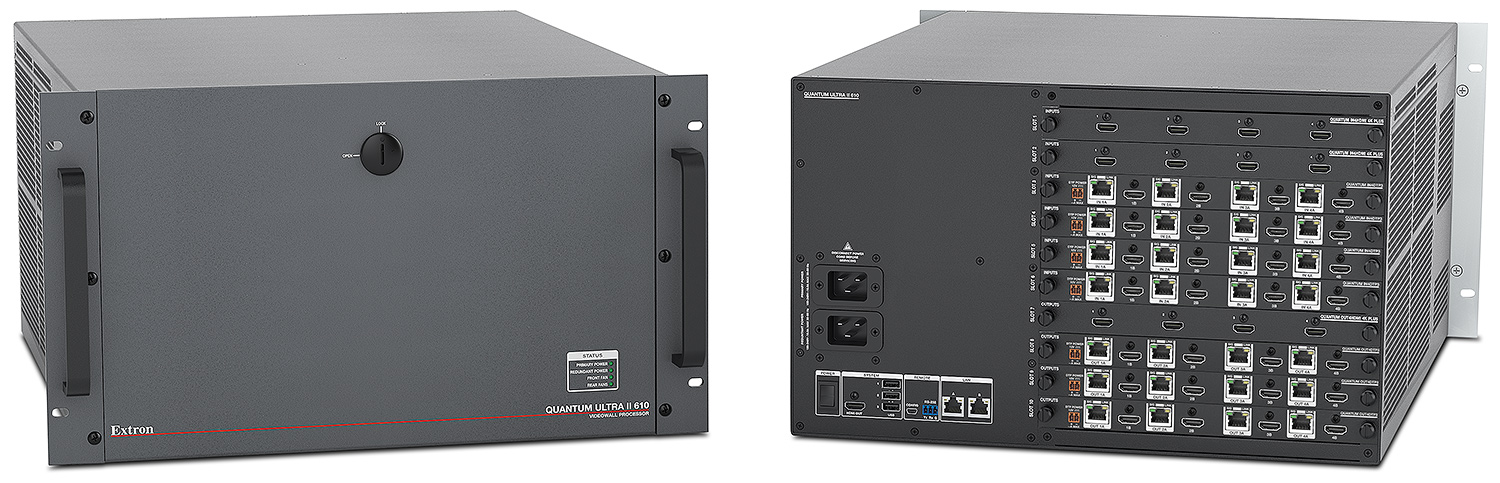

- Shall consist of a 3U card frame with 5 total slots for input and output card combinations
- Shall support a maximum of 16 inputs in a single card frame when configured with digital high-resolution input cards and one output card
- Shall support a maximum of 16 outputs in a single card frame when configured with one input card
- Shall utilize a dedicated video bus capable of a throughput of up to 500 Gbps
- Shall allow large input and output arrays by operating multiple card frames as a single addressable system from the control software
- Shall support multiple input signal formats via input card options
- Shall support multiple output signal formats via output card options
- Shall support field configuration of input and output cards
- Shall be equipped with front-panel LEDs to indicate fan and power supply status
- Shall provide automated notification of critical component failures
- Shall utilize solid-state storage for the operating system
- Shall utilize an embedded operating system
- Shall utilize a unidirectional, dedicated digital high-speed bus designed for sustained, real-time video source transport
- Shall be HDCP-compliant when used with HDCP-compliant displays
- Shall authenticate and maintain continuous HDCP encryption between input and output devices to ensure quick and proper display of HDCP-encrypted source signals on the videowall
- Shall present a window with an alert message if HDCP-encrypted content is sent to a non-HDCP compliant display
- Shall support 24/7 operation
- Shall take no longer than 90 seconds to boot and display video on all configured outputs
- Shall reboot to the state last shown at shutdown
- Shall support Extended Display Identification Data – EDID and Display Data Channel – DDC data using DVI and HDMI standard
- Shall support factory or custom EDID tables
- Shall automatically maintain efficient use of video bus bandwidth by utilizing no more bandwidth than native resolution on bus for upscaled images and less bandwidth than native resolution for downscaled images
- Shall support horizontal and vertical bezel compensation for flat panel displays
- Shall support horizontal and vertical overlap capability for use in edge-blended applications up to 50% of display resolution
- Shall support output and source rotation in 90-degree increments for portrait or landscape display orientation
- Shall be capable of controlling multiple independent videowalls of varying resolutions and screen orientations from a single processor
- Shall impose no source window positioning restrictions, including overlay and overlap
- Shall allow source windows to be sized to any aspect ratio
- Shall provide up to 30-bit processing for input signals
- Shall provide display of multiple simultaneous VNC sources through multiple VNC serve/client sessions
- Shall provide display of picture files (BMP, PNG and JPG) sourced from the processor’s local storage medium, with support for transparency, keying, and alpha channels
- Shall allow the repeated display of a single source from one input channel at multiple scaled resolutions
- Shall allow the display of internally generated windows containing static or dynamic text
- Shall allow the display of internally generated time and date information with support for:
- multiple time zones
- Daylight savings time
- Shall allow the display of user-definable text overlay messages within source windows
- Shall allow the display of customizable borders and titles surrounding source windows, with support for:
- Rounded corners
- Transparency
- Drop shadow
- Flashing
- Shall generate dynamically sized test patterns to facilitate display setup
- Videowall system shall provide the following security features:
- Shall provide an encrypted data connection between control PC and videowall processor
- Shall allow digitally signed firmware upgrades
- Shall provide enabling and disabling of physical and IP ports
- Shall support event logging to a file with user-definable maximum size
- Operating system shall be password protected with a user definable, changeable password
- Videowall processor shall be compatible with the following input and output cards

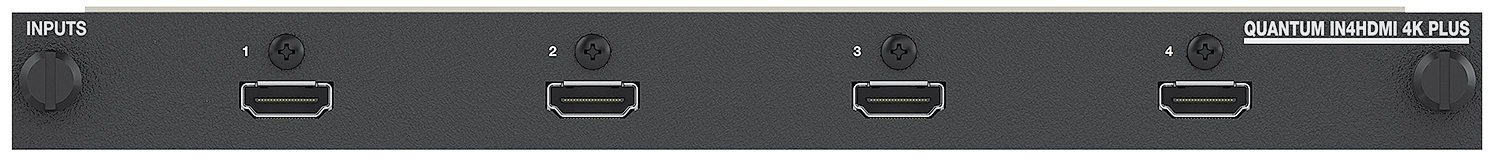

- 4K/60 HDMI input card which shall:
- Support HDMI video and embedded audio signals
- Provide up to four female HDMI connectors
- Accept up to four simultaneous inputs, each with pixel clocks up to 600 MHz, supporting resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz
- Support 4K/60 signal per each connection
- Support horizontal frequencies from 15 kHz to 100 kHz
- Support vertical frequencies from 24 Hz to 240 Hz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Support pass-through audio formats of LPCM up to 7.2/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays when used with HDMI output cards.
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Provide a locking mechanism to secure HDMI cable connections

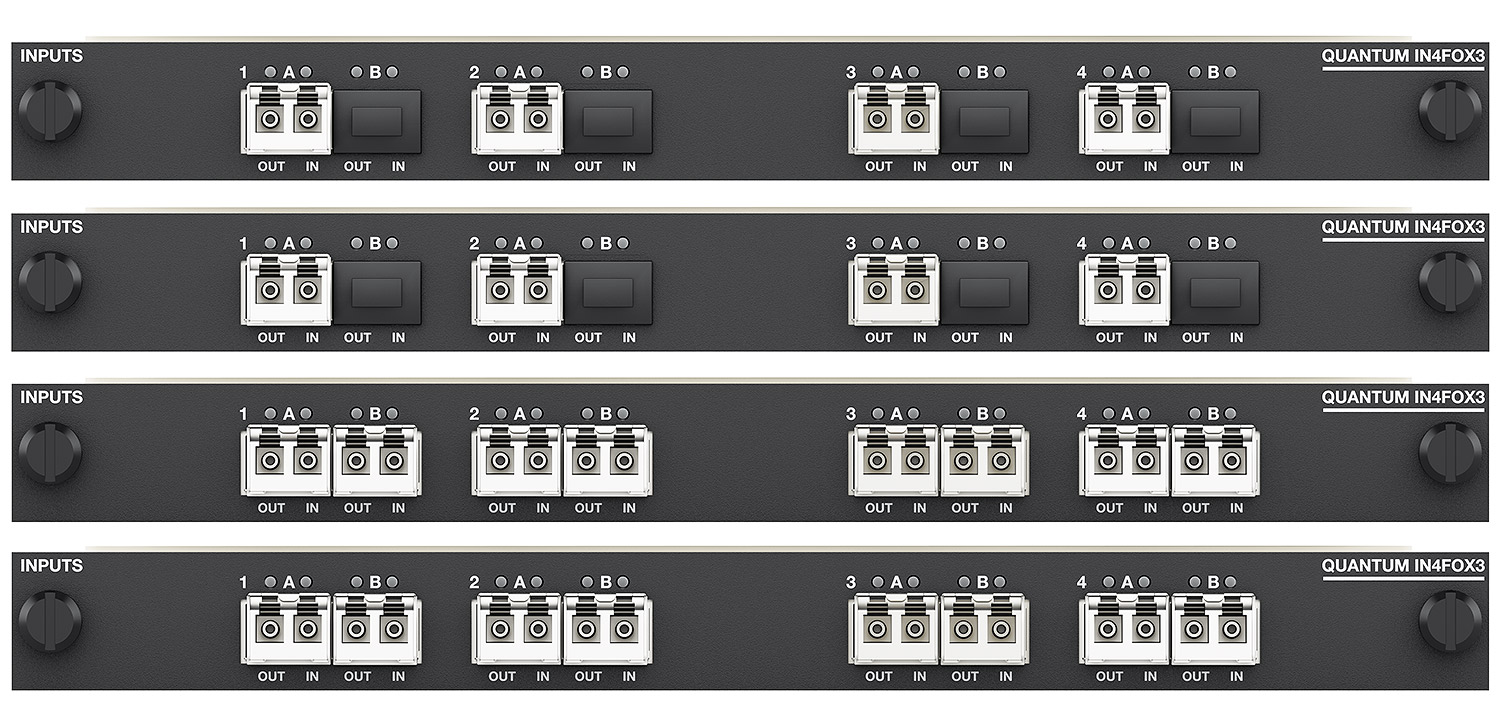

- 4K/60 fiber input cards which shall:
- Support video and embedded audio signals
- Support four video channels per card
- Support two SFP modules per channel
- Accept compressed signals up to 4096x2160 @ 60 Hz per channel on a single SFP
- Accept uncompressed signals up to 4096x2160 @ 30 Hz per channel on a single SFP or up to 4096x2160 @ 60 Hz per channel on two SFPs
- Support vertical frequencies from 24 Hz to 120 Hz
- Support horizontal frequencies from 24 kHz to 120 kHz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Support pass-through audio formats of LPCM 2-channel up to 48 Khz
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Support multimode and singlemode fiber formats
- Support Ethernet to RS-232 insertion for transmitting control commands via fiber to attached peripherals
- 4K/60 Twisted-pair input card which shall:
- Support up to four inputs from at distances up to 330 feet (100 meters) over shielded CATx cable
- Support up to four simultaneous inputs, each with pixel clocks up to 600 MHz, at resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Accept 4K/60 signals on one connection
- Support vertical frequencies from 24 Hz to 120 Hz
- Support horizontal frequencies from 24 kHz to 120 kHz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port

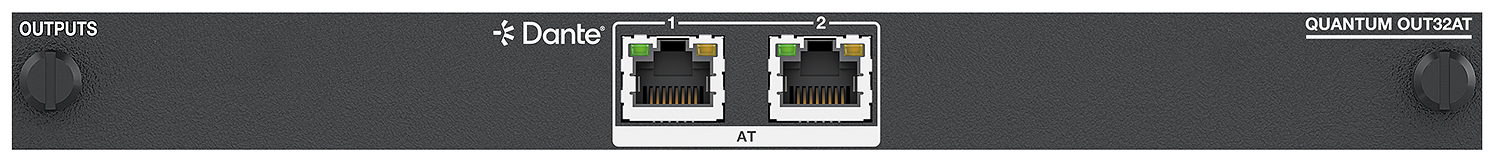

- Dante audio card which shall:
- Deliver up to 32 LPCM stereo pairs, to a Dante® network
- Deliver active audio from any canvas or discrete program audio from an input source
- Include two Dante Ethernet ports, providing redundancy in case of a network outage.
- Support one or more videowalls with a single Dante audio card
- Select audio for a Dante network using control software or remote commands
- Be compatible with Dante Controller software for setup and managing the audio network.

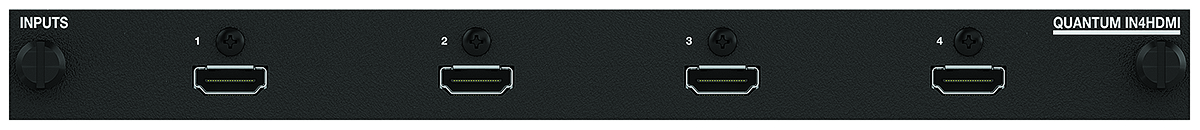

- HDMI input card which shall:
- Support HDMI video signals
- Provide up to four female HDMI connectors
- Accept up to four simultaneous inputs, each with pixel clocks up to 165 MHz, supporting resolutions up to 1920x1200 and 2K at 60 Hz
- Accept up to two simultaneous inputs, each with pixel clocks up to 300 MHz, supporting resolutions up to 4096x2160 at 30 Hz
- Support 4K/30 signals using one connection
- Support 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 135 kHz
- Support vertical frequencies from 24 Hz to 75 Hz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays when used with HDMI output cards.
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Provide a locking mechanism to secure HDMI cable connections

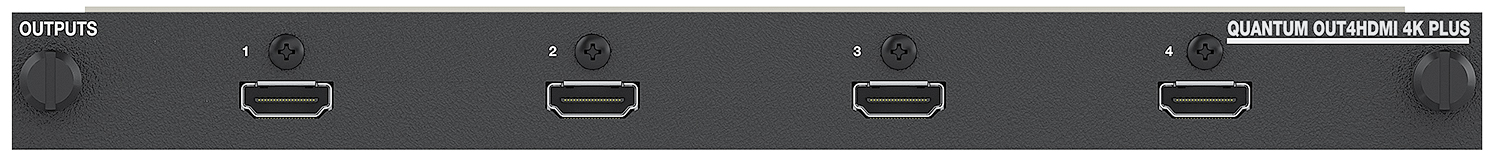

- 4K/60 HDMI output card which shall:
- Support HDMI video and embedded audio signals
- Provide up to four female HDMI connectors
- Provide up to four simultaneous outputs, each with pixel clocks up to 600 MHz, at resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz
- Deliver 4K/60 signals using one connection
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Support pass-through audio formats of LPCM up to 7.2/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel
- Provide a locking mechanism to secure HDMI cable connections
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically

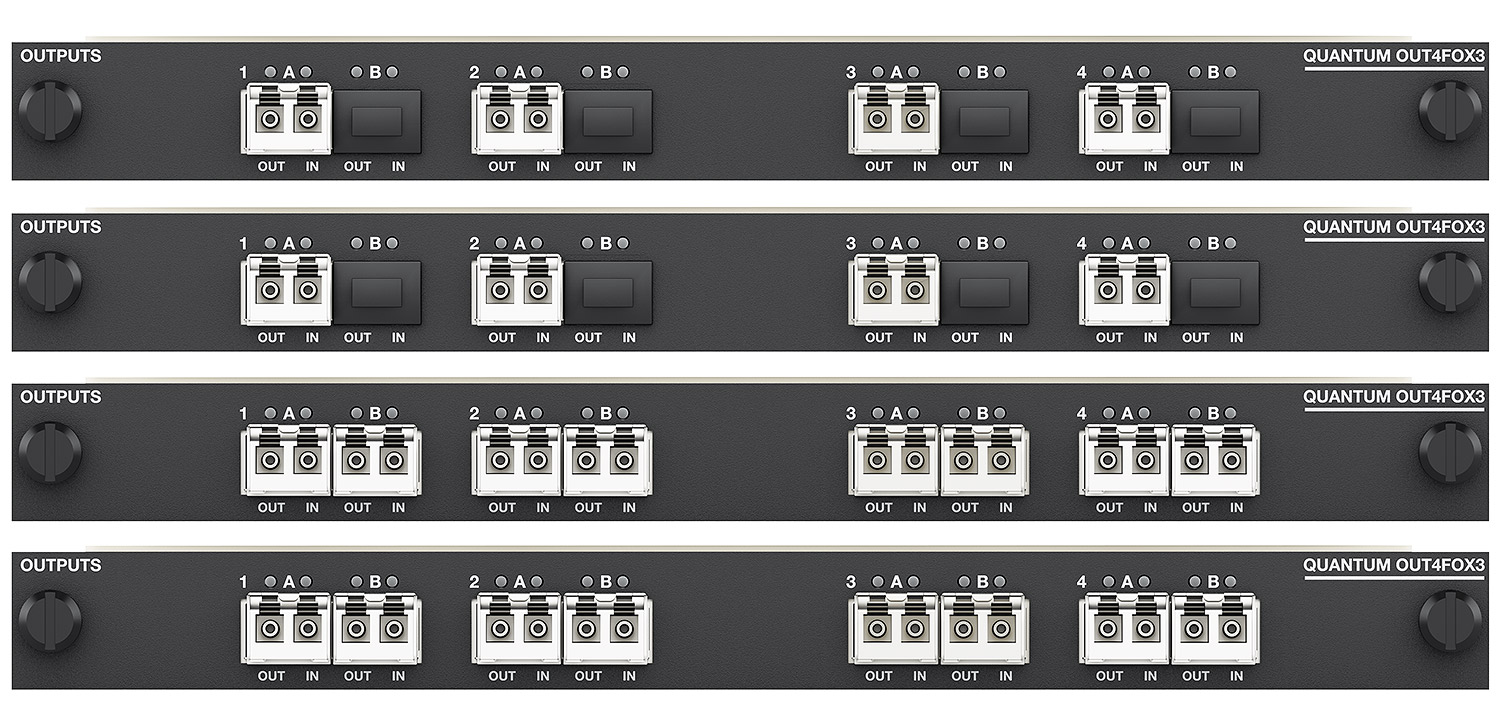

- 4K/60 fiber output card which shall:
- Support video and embedded audio signals
- Support four video channels per card
- Support two SFP modules per channel
- Deliver compressed signals up to 4096x2160 @ 60 Hz per channel on a single SFP
- Deliver uncompressed signals up to 4096x2160 @ 30 Hz per channel on a single SFP or up to 4096x2160 @ 60 Hz per channel on two SFPs
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Support pass-through audio formats of LPCM 2-channel up to 48 Khz
- Allow the display of up to 64 source windows across each four-channel output card
- Scale sources up to 32 times the output resolution horizontally and vertically

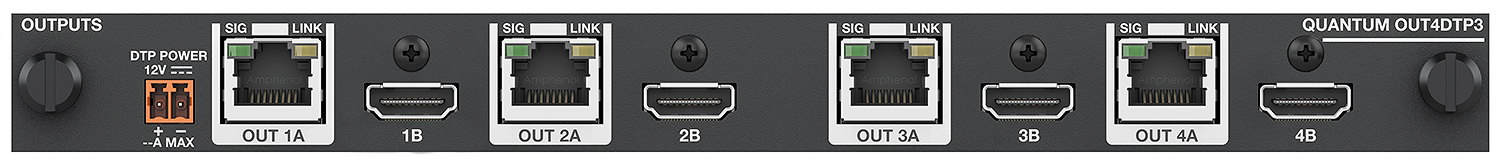

- 4K/60 Twisted-pair output card which shall:
- Support up to four outputs at distances up to 330 feet (100 meters) over shielded CATx cable
- Provide up to four simultaneous outputs, each with pixel clocks up to 600 MHz, at resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/60 signals using one connection
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port

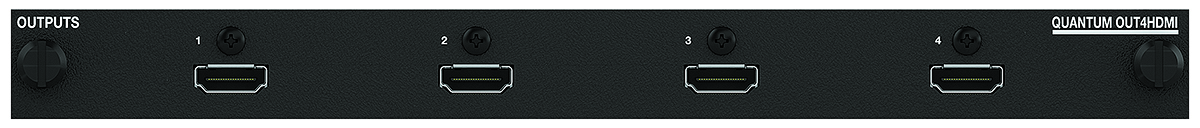

- HDMI output card which shall:
- Support HDMI video signals
- Provide up to four female HDMI connectors
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Provide a locking mechanism to secure HDMI cable connections
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically

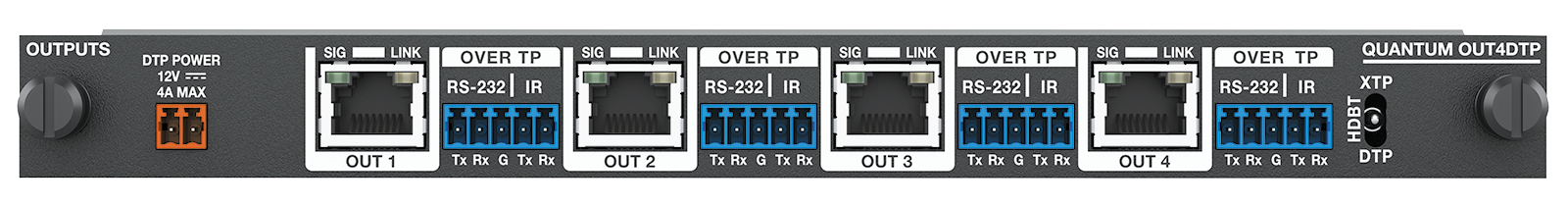

- Twisted-pair output card which shall:
- Support up to four outputs at distances up to 330 feet (100 meters) over shielded CATx cable
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 100 kHz
- Support vertical frequencies from 23.98 Hz to 75 Hz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port

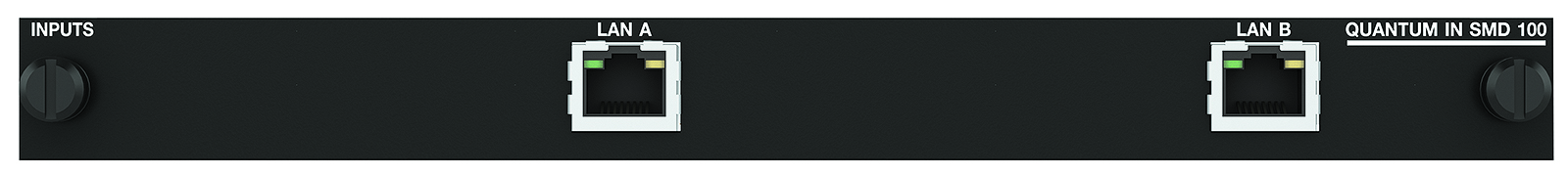

- Streaming video decoder card which shall:
- Support up to two independently configurable network connections
- Be capable of decoding H-264/AVC, MPEG-2, and MJPEG video streams
- Support the video section of ONVIF Profile S
- Decode from four 1080p/60 to 16 standard-definition video streams
- Decode video streams with no more than 1 second of latency
- Provide 4:4:4 input sampling at up to 8 bits per color
- Perform downscaling to at least 1/100 of the native source resolution
- 4K/60 HDMI input card which shall:
- Canvas audio source input assignment
- Shall be selectable from any single HDMI or fiber source audio signal
- Remote operation and system control shall:
- Shall be accessible from USB, RS-232, and Ethernet interfaces
- Shall be achieved with direct connection to the processor
- Shall allow control of:
- Setting window input source
- Window muting
- Window priority (layer)
- Window position and size adjust
- Window presets recall
- Recall window border style
- Set window text
- Video signal presence, by window
- Set/view IP settings (IP address, subnet, gateway)
- Reset
- Hardware failure alert
- Allow for independent preset and window control per screen group
- Control software shall be included with the videowall processor which shall:
- Shall operate on a PC independent of the videowall processor
- Shall provide network detection for videowall processor discovery
- Shall allow configuration of online processors
- Shall allow manual creation, definition and configuration of processors when offline
- Shall provide a graphical representation of the videowall onto which sources can be dragged and dropped to create window presets
- Shall allow for the creation of custom screen layouts in one or more virtual screen groups
- Shall allow for selection of output parameters, including:
- Resolution
- Refresh rate
- HDCP notification
- Output rotation in 90-degree increments
- Screen overlap
- Mullion compensation
- Shall allow output parameters to be set independently per screen group
- Shall allow creation of source definitions, including:
- Physical sources, via auto-detection or manual selection
- VNC Sources
- Static image sources
- Text sources
- Timer/Clock sources with:
- Timer direction control (count up/count down)
- Multiple time zones
- Daylight savings time support
- Shall allow for image adjustments of physical sources, including:
- Size
- Position
- Contrast
- Brightness
- Name
- Film mode
- Shall allow for the creation of window presets, with user control over:
- Window source
- Source size
- Window size
- Window position
- Window layer
- Window contents
- Window border
- Window title
- Window overlay
- Shall allow for the creation of 128 window presets per screen group
- Shall provide controls for system EDID management
- Shall allow creation of a password-protected Administrator account for system management
- Shall allow administrator to create password-protected User accounts
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Approved device shall be the Extron Quantum Ultra II 305 (custom part number based on configuration); no alternates or equals
Quantum Ultra II 305
- Provide a configurable videowall processor that shall support the real-time windowed display of multiple video, graphic, and still image sources on a single or tiled video display
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Shall consist of a 3U card frame with 5 total slots for input and output card combinations
- Shall support a maximum of 16 inputs in a single card frame when configured with digital high-resolution input cards and one output card
- Shall support a maximum of 16 outputs in a single card frame when configured with one input card
- Shall utilize a dedicated video bus capable of a throughput of up to 500 Gbps
- Shall allow large input and output arrays by operating multiple card frames as a single addressable system from the control software
- Shall support multiple input signal formats via input card options
- Shall support multiple output signal formats via output card options
- Shall support field configuration of input and output cards
- Shall be equipped with front-panel LEDs to indicate fan and power supply status
- Shall provide automated notification of critical component failures
- Shall utilize solid-state storage for the operating system
- Shall utilize an embedded operating system
- Shall utilize a unidirectional, dedicated digital high-speed bus designed for sustained, real-time video source transport
- Shall be HDCP-compliant when used with HDCP-compliant displays
- Shall authenticate and maintain continuous HDCP encryption between input and output devices to ensure quick and proper display of HDCP-encrypted source signals on the videowall
- Shall present a window with an alert message if HDCP-encrypted content is sent to a non-HDCP compliant display
- Shall support 24/7 operation
- Shall take no longer than 90 seconds to boot and display video on all configured outputs
- Shall reboot to the state last shown at shutdown
- Shall support Extended Display Identification Data – EDID and Display Data Channel – DDC data using DVI and HDMI standard
- Shall support factory or custom EDID tables
- Shall automatically maintain efficient use of video bus bandwidth by utilizing no more bandwidth than native resolution on bus for upscaled images and less bandwidth than native resolution for downscaled images
- Shall support horizontal and vertical bezel compensation for flat panel displays
- Shall support horizontal and vertical overlap capability for use in edge-blended applications up to 50% of display resolution
- Shall support output and source rotation in 90-degree increments for portrait or landscape display orientation
- Shall be capable of controlling multiple independent videowalls of varying resolutions and screen orientations from a single processor
- Shall impose no source window positioning restrictions, including overlay and overlap
- Shall allow source windows to be sized to any aspect ratio
- Shall provide up to 30-bit processing for input signals
- Shall provide display of multiple simultaneous VNC sources through multiple VNC serve/client sessions
- Shall provide display of picture files (BMP, PNG and JPG) sourced from the processor’s local storage medium, with support for transparency, keying, and alpha channels
- Shall allow the repeated display of a single source from one input channel at multiple scaled resolutions
- Shall allow the display of internally generated windows containing static or dynamic text
- Shall allow the display of internally generated time and date information with support for:
- multiple time zones
- Daylight savings time
- Shall allow the display of user-definable text overlay messages within source windows
- Shall allow the display of customizable borders and titles surrounding source windows, with support for:
- Rounded corners
- Transparency
- Drop shadow
- Flashing
- Shall generate dynamically sized test patterns to facilitate display setup
- Videowall system shall provide the following security features:
- Shall provide an encrypted data connection between control PC and videowall processor
- Shall allow digitally signed firmware upgrades
- Shall provide enabling and disabling of physical and IP ports
- Shall support event logging to a file with user-definable maximum size
- Operating system shall be password protected with a user definable, changeable password
- Videowall processor shall be compatible with the following input and output cards
- 4K/60 HDMI input card which shall:
- Support HDMI video and embedded audio signals
- Provide up to four female HDMI connectors
- Accept up to four simultaneous inputs, each with pixel clocks up to 600 MHz, supporting resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz
- Support 4K/60 signal per each connection
- Support horizontal frequencies from 15 kHz to 100 kHz
- Support vertical frequencies from 24 Hz to 240 Hz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Support pass-through audio formats of LPCM up to 7.2/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays when used with HDMI output cards.
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Provide a locking mechanism to secure HDMI cable connections
- 4K/60 fiber input cards which shall:
- Support video and embedded audio signals
- Support four video channels per card
- Support two SFP modules per channel
- Accept compressed signals up to 4096x2160 @ 60 Hz per channel on a single SFP
- Accept uncompressed signals up to 4096x2160 @ 30 Hz per channel on a single SFP or up to 4096x2160 @ 60 Hz per channel on two SFPs
- Support vertical frequencies from 24 Hz to 120 Hz
- Support horizontal frequencies from 24 kHz to 120 kHz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Support pass-through audio formats of LPCM 2-channel up to 48 Khz
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Support multimode and singlemode fiber formats
- Support Ethernet to RS-232 insertion for transmitting control commands via fiber to attached peripherals
- 4K/60 Twisted-pair input card which shall:
- Support up to four inputs from at distances up to 330 feet (100 meters) over shielded CATx cable
- Support up to four simultaneous inputs, each with pixel clocks up to 600 MHz, at resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Accept 4K/60 signals on one connection
- Support vertical frequencies from 24 Hz to 120 Hz
- Support horizontal frequencies from 24 kHz to 120 kHz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port
- Dante audio card which shall:
- Deliver up to 32 LPCM stereo pairs, to a Dante® network
- Deliver active audio from any canvas or discrete program audio from an input source
- Include two Dante Ethernet ports, providing redundancy in case of a network outage.
- Support one or more videowalls with a single Dante audio card
- Select audio for a Dante network using control software or remote commands
- Be compatible with Dante Controller software for setup and managing the audio network.
- HDMI input card which shall:
- Support HDMI video signals
- Provide up to four female HDMI connectors
- Accept up to four simultaneous inputs, each with pixel clocks up to 165 MHz, supporting resolutions up to 1920x1200 and 2K at 60 Hz
- Accept up to two simultaneous inputs, each with pixel clocks up to 300 MHz, supporting resolutions up to 4096x2160 at 30 Hz
- Support 4K/30 signals using one connection
- Support 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 135 kHz
- Support vertical frequencies from 24 Hz to 75 Hz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays when used with HDMI output cards.
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Provide a locking mechanism to secure HDMI cable connections
- 4K/60 HDMI output card which shall:
- Support HDMI video and embedded audio signals
- Provide up to four female HDMI connectors
- Provide up to four simultaneous outputs, each with pixel clocks up to 600 MHz, at resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz
- Deliver 4K/60 signals using one connection
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Support pass-through audio formats of LPCM up to 7.2/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel
- Provide a locking mechanism to secure HDMI cable connections
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- 4K/60 fiber output card which shall:
- Support video and embedded audio signals
- Support four video channels per card
- Support two SFP modules per channel
- Deliver compressed signals up to 4096x2160 @ 60 Hz per channel on a single SFP
- Deliver uncompressed signals up to 4096x2160 @ 30 Hz per channel on a single SFP or up to 4096x2160 @ 60 Hz per channel on two SFPs
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Support pass-through audio formats of LPCM 2-channel up to 48 Khz
- Allow the display of up to 64 source windows across each four-channel output card
- Scale sources up to 32 times the output resolution horizontally and vertically
- 4K/60 Twisted-pair output card which shall:
- Support up to four outputs at distances up to 330 feet (100 meters) over shielded CATx cable
- Provide up to four simultaneous outputs, each with pixel clocks up to 600 MHz, at resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/60 signals using one connection
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port
- HDMI output card which shall:
- Support HDMI video signals
- Provide up to four female HDMI connectors
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Provide a locking mechanism to secure HDMI cable connections
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Twisted-pair output card which shall:
- Support up to four outputs at distances up to 330 feet (100 meters) over shielded CATx cable
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 100 kHz
- Support vertical frequencies from 23.98 Hz to 75 Hz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port
- Streaming video decoder card which shall:
- Support up to two independently configurable network connections
- Be capable of decoding H-264/AVC, MPEG-2, and MJPEG video streams
- Support the video section of ONVIF Profile S
- Decode from four 1080p/60 to 16 standard-definition video streams
- Decode video streams with no more than 1 second of latency
- Provide 4:4:4 input sampling at up to 8 bits per color
- Perform downscaling to at least 1/100 of the native source resolution
- 4K/60 HDMI input card which shall:
- Canvas audio source input assignment
- Shall be selectable from any single HDMI or fiber source audio signal
- Remote operation and system control shall:
- Shall be accessible from USB, RS-232, and Ethernet interfaces
- Shall be achieved with direct connection to the processor
- Shall allow control of:
- Setting window input source
- Window muting
- Window priority (layer)
- Window position and size adjust
- Window presets recall
- Recall window border style
- Set window text
- Video signal presence, by window
- Set/view IP settings (IP address, subnet, gateway)
- Reset
- Hardware failure alert
- Allow for independent preset and window control per screen group
- Control software shall be included with the videowall processor which shall:
- Shall operate on a PC independent of the videowall processor
- Shall provide network detection for videowall processor discovery
- Shall allow configuration of online processors
- Shall allow manual creation, definition and configuration of processors when offline
- Shall provide a graphical representation of the videowall onto which sources can be dragged and dropped to create window presets
- Shall allow for the creation of custom screen layouts in one or more virtual screen groups
- Shall allow for selection of output parameters, including:
- Resolution
- Refresh rate
- HDCP notification
- Output rotation in 90-degree increments
- Screen overlap
- Mullion compensation
- Shall allow output parameters to be set independently per screen group
- Shall allow creation of source definitions, including:
- Physical sources, via auto-detection or manual selection
- VNC Sources
- Static image sources
- Text sources
- Timer/Clock sources with:
- Timer direction control (count up/count down)
- Multiple time zones
- Daylight savings time support
- Shall allow for image adjustments of physical sources, including:
- Size
- Position
- Contrast
- Brightness
- Name
- Film mode
- Shall allow for the creation of window presets, with user control over:
- Window source
- Source size
- Window size
- Window position
- Window layer
- Window contents
- Window border
- Window title
- Window overlay
- Shall allow for the creation of 128 window presets per screen group
- Shall provide controls for system EDID management
- Shall allow creation of a password-protected Administrator account for system management
- Shall allow administrator to create password-protected User accounts
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Approved device shall be the Extron Quantum Ultra II 305 (custom part number based on configuration); no alternates or equals
Quantum Ultra II 610
- Provide a configurable videowall processor that shall support the real-time windowed display of multiple video, graphic, and still image sources on a single or tiled video display
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Shall consist of a 6U card frame with 10 total slots for input and output card combinations
- Shall support a maximum of 36 inputs in a single card frame when configured with digital high-resolution input cards and one output card
- Shall support a maximum of 36 outputs in a single card frame when configured with one input card
- Shall utilize a dedicated video bus capable of a throughput of up to 500 Gbps
- Shall allow large input and output arrays by operating multiple card frames as a single addressable system from the control software
- Shall support multiple input signal formats via input card options
- Shall support multiple output signal formats via output card options
- Shall support field configuration of input and output cards
- Shall be equipped with dual redundant, hot swappable power supplies
- Be equipped with front-panel LEDs to indicate fan and power supply status
- Shall provide automated notification of critical component failures
- Shall utilize solid-state storage for the operating system
- Shall utilize an embedded operating system
- Shall utilize a unidirectional, dedicated digital high-speed bus designed for sustained, real-time video source transport
- Shall be HDCP-compliant when used with HDCP-compliant displays
- Ahall authenticate and maintain continuous HDCP encryption between input and output devices to ensure quick and proper display of HDCP-encrypted source signals on the videowall
- Shall present a window with an alert message if HDCP-encrypted content is sent to a non-HDCP compliant display
- Shall support 24/7 operation
- Shall take no longer than 90 seconds to boot and display video on all configured outputs
- Shall reboot to the state last shown at shutdown
- Shall support Extended Display Identification Data – EDID and Display Data Channel – DDC data using DVI and HDMI standard
- Shall support factory or custom EDID tables
- Shall automatically maintain efficient use of video bus bandwidth by utilizing no more bandwidth than native resolution on bus for upscaled images and less bandwidth than native resolution for downscaled images
- Shall support horizontal and vertical bezel compensation for flat panel displays
- Shall support horizontal and vertical overlap capability for use in edge-blended applications up to 50% of display resolution
- Shall support output and source rotation in 90-degree increments for portrait or landscape display orientation
- Shall be capable of controlling multiple independent videowalls of varying resolutions and screen orientations from a single processor
- Shall impose no source window positioning restrictions, including overlay and overlap
- Shall allow source windows to be sized to any aspect ratio
- Shall provide up to 30-bit processing for input signals
- Shall provide display of multiple simultaneous VNC sources through multiple VNC serve/client sessions
- Shall provide display of picture files (BMP, PNG and JPG) sourced from the processor’s local storage medium, with support for transparency, keying, and alpha channels
- Shall allow the repeated display of a single source from one input channel at multiple scaled resolutions
- Shall allow the display of internally generated windows containing static or dynamic text
- Shall allow the display of internally generated time and date information with support for:
- multiple time zones
- Daylight savings time
- Shall allow the display of user-definable text overlay messages within source windows
- Shall allow the display of customizable borders and titles surrounding source windows, with support for:
- Rounded corners
- Transparency
- Drop shadow
- Flashing
- Shall generate dynamically sized test patterns to facilitate display setup
- Videowall system shall provide the following security features:
- Shall provide an encrypted data connection between control PC and videowall processor
- Shall support digitally signed firmware upgrades
- Enabling and disabling of physical and IP ports
- Shall provide event logging to a file with user-definable maximum size
- Operating system shall be password protected with a user definable, changeable password
- Videowall processor shall be compatible with the following input and output cards
- 4K/60 HDMI input card which shall:
- Support HDMI video and embedded audio signals
- Provide up to four female HDMI connectors
- Accept up to four simultaneous inputs, each with pixel clocks up to 600 MHz, supporting resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz
- Support 4K/60 signal per each connection
- Support horizontal frequencies from 15 kHz to 100 kHz
- Support vertical frequencies from 24 Hz to 240 Hz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Support pass-through audio formats of LPCM up to 7.2/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays when used with HDMI output cards.
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Provide a locking mechanism to secure HDMI cable connections
- 4K/60 fiber input cards which shall:
- Support video and embedded audio signals
- Support four video channels per card
- Support two SFP modules per channel
- Accept compressed signals up to 4096x2160 @ 60 Hz per channel on a single SFP
- Accept uncompressed signals up to 4096x2160 @ 30 Hz per channel on a single SFP or up to 4096x2160 @ 60 Hz per channel on two SFPs
- Support vertical frequencies from 24 Hz to 120 Hz
- Support horizontal frequencies from 24 kHz to 120 kHz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Support pass-through audio formats of LPCM 2-channel up to 48 Khz
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Support multimode and singlemode fiber formats
- Support Ethernet to RS-232 insertion for transmitting control commands via fiber to attached peripherals
- 4K/60 Twisted-pair input card which shall:
- Support up to four inputs from at distances up to 330 feet (100 meters) over shielded CATx cable
- Support up to four simultaneous inputs, each with pixel clocks up to 600 MHz, at resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Accept 4K/60 signals on one connection
- Support vertical frequencies from 24 Hz to 120 Hz
- Support horizontal frequencies from 24 kHz to 120 kHz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port
- Dante audio card which shall:
- Deliver up to 32 LPCM stereo pairs, to a Dante® network
- Deliver active audio from any canvas or discrete program audio from an input source
- Include two Dante Ethernet ports, providing redundancy in case of a network outage.
- Support one or more videowalls with a single Dante audio card
- Select audio for a Dante network using control software or remote commands
- Be compatible with Dante Controller software for setup and managing the audio network.
- HDMI input card which shall:
- Support HDMI video signals
- Provide up to four female HDMI connectors
- Accept up to four simultaneous inputs, each with pixel clocks up to 165 MHz, supporting resolutions up to 1920x1200 and 2K at 60 Hz
- Accept up to two simultaneous inputs, each with pixel clocks up to 300 MHz, supporting resolutions up to 4096x2160 at 30 Hz
- Support 4K/30 signals using one connection
- Support 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 135 kHz
- Support vertical frequencies from 24 Hz to 75 Hz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays when used with HDMI output cards.
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Provide a locking mechanism to secure HDMI cable connections
- 4K/60 HDMI output card which shall:
- Support HDMI video and embedded audio signals
- Provide up to four female HDMI connectors
- Provide up to four simultaneous outputs, each with pixel clocks up to 600 MHz, at resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz
- Deliver 4K/60 signals using one connection
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Support pass-through audio formats of LPCM up to 7.2/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel
- Provide a locking mechanism to secure HDMI cable connections
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- 4K/60 fiber output card which shall:
- Support video and embedded audio signals
- Support four video channels per card
- Support two SFP modules per channel
- Deliver compressed signals up to 4096x2160 @ 60 Hz per channel on a single SFP
- Deliver uncompressed signals up to 4096x2160 @ 30 Hz per channel on a single SFP or up to 4096x2160 @ 60 Hz per channel on two SFPs
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Support pass-through audio formats of LPCM 2-channel up to 48 Khz
- Allow the display of up to 64 source windows across each four-channel output card
- Scale sources up to 32 times the output resolution horizontally and vertically
- 4K/60 Twisted-pair output card which shall:
- Support up to four outputs at distances up to 330 feet (100 meters) over shielded CATx cable
- Provide up to four simultaneous outputs, each with pixel clocks up to 600 MHz, at resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/60 signals using one connection
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port
- HDMI output card which shall:
- Support HDMI video signals
- Provide up to four female HDMI connectors
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Provide a locking mechanism to secure HDMI cable connections
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Twisted-pair output card which shall:
- Support up to four outputs at distances up to 330 feet (100 meters) over shielded CATx cable
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 100 kHz
- Support vertical frequencies from 23.98 Hz to 75 Hz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port
- Streaming video decoder card which shall:
- Support up to two independently configurable network connections
- Be capable of decoding H-264/AVC, MPEG-2, and MJPEG video streams
- Support the video section of ONVIF Profile S
- Decode from four 1080p/60 to 16 standard-definition video streams
- Decode video streams with no more than 1 second of latency
- Provide 4:4:4 input sampling at up to 8 bits per color
- Perform downscaling to at least 1/100 of the native source resolution
- 4K/60 HDMI input card which shall:
- Canvas audio source input assignment
- Shall be selectable from any single HDMI or fiber source audio signal
- Remote operation and system control
- Shall be accessible from USB, RS-232, and Ethernet interfaces
- Shall be achieved with direct connection to the processor
- Shall allow control of:
- Setting window input source
- Window muting
- Window priority (layer)
- Window position and size adjust
- Window presets recall
- Recall window border style
- Set window text
- Video signal presence, by window
- Set/view IP settings (IP address, subnet, gateway)
- Reset
- Hardware failure alert
- Allow for independent preset and window control per screen group
- Control software shall be included with the videowall processor
- Shall operate on a PC independent of the videowall processor
- Shall provide network detection for videowall processor discovery
- Shall allow configuration of online processors
- Shall allow manual creation, definition and configuration of processors when offline
- Shall provide a graphical representation of the videowall onto which sources can be dragged and dropped to create window presets
- Shall allow for the creation of custom screen layouts in one or more virtual screen groups
- Shall allow for selection of output parameters, including:
- Resolution
- Refresh rate
- HDCP notification
- Output rotation in 90-degree increments
- Screen overlap
- Mullion compensation
- Shall allow output parameters to be set independently per screen group
- Shall allow creation of source definitions, including:
- Physical sources, via auto-detection or manual selection
- VNC Sources
- Static image sources
- Text sources
- Timer/Clock sources with:
- Timer direction control (count up/count down)
- Multiple time zones
- Daylight savings time support
- Shall allow for image adjustments of physical sources, including:
- Size
- Position
- Contrast
- Brightness
- Name
- Film mode
- Shall allow for the creation of window presets, with user control over:
- Window source
- Source size
- Window size
- Window position
- Window layer
- Window contents
- Window border
- Window title
- Window overlay
- Shall allow for the creation of 128 window presets per screen group
- Shall provide controls for system EDID management
- Shall allow creation of a password-protected Administrator account for system management
- Allow administrator to create password-protected User accounts
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Approved device shall be the Extron Quantum Ultra II 610 (custom part number based on configuration); no alternates or equals
Quantum Ultra II 610
- Provide a configurable videowall processor that shall support the real-time windowed display of multiple video, graphic, and still image sources on a single or tiled video display
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Shall consist of a 6U card frame with 10 total slots for input and output card combinations
- Shall support a maximum of 36 inputs in a single card frame when configured with digital high-resolution input cards and one output card
- Shall support a maximum of 36 outputs in a single card frame when configured with one input card
- Shall utilize a dedicated video bus capable of a throughput of up to 500 Gbps
- Shall allow large input and output arrays by operating multiple card frames as a single addressable system from the control software
- Shall support multiple input signal formats via input card options
- Shall support multiple output signal formats via output card options
- Shall support field configuration of input and output cards
- Shall be equipped with dual redundant, hot swappable power supplies
- Be equipped with front-panel LEDs to indicate fan and power supply status
- Shall provide automated notification of critical component failures
- Shall utilize solid-state storage for the operating system
- Shall utilize an embedded operating system
- Shall utilize a unidirectional, dedicated digital high-speed bus designed for sustained, real-time video source transport
- Shall be HDCP-compliant when used with HDCP-compliant displays
- Ahall authenticate and maintain continuous HDCP encryption between input and output devices to ensure quick and proper display of HDCP-encrypted source signals on the videowall
- Shall present a window with an alert message if HDCP-encrypted content is sent to a non-HDCP compliant display
- Shall support 24/7 operation
- Shall take no longer than 90 seconds to boot and display video on all configured outputs
- Shall reboot to the state last shown at shutdown
- Shall support Extended Display Identification Data – EDID and Display Data Channel – DDC data using DVI and HDMI standard
- Shall support factory or custom EDID tables
- Shall automatically maintain efficient use of video bus bandwidth by utilizing no more bandwidth than native resolution on bus for upscaled images and less bandwidth than native resolution for downscaled images
- Shall support horizontal and vertical bezel compensation for flat panel displays
- Shall support horizontal and vertical overlap capability for use in edge-blended applications up to 50% of display resolution
- Shall support output and source rotation in 90-degree increments for portrait or landscape display orientation
- Shall be capable of controlling multiple independent videowalls of varying resolutions and screen orientations from a single processor
- Shall impose no source window positioning restrictions, including overlay and overlap
- Shall allow source windows to be sized to any aspect ratio
- Shall provide up to 30-bit processing for input signals
- Shall provide display of multiple simultaneous VNC sources through multiple VNC serve/client sessions
- Shall provide display of picture files (BMP, PNG and JPG) sourced from the processor’s local storage medium, with support for transparency, keying, and alpha channels
- Shall allow the repeated display of a single source from one input channel at multiple scaled resolutions
- Shall allow the display of internally generated windows containing static or dynamic text
- Shall allow the display of internally generated time and date information with support for:
- multiple time zones
- Daylight savings time
- Shall allow the display of user-definable text overlay messages within source windows
- Shall allow the display of customizable borders and titles surrounding source windows, with support for:
- Rounded corners
- Transparency
- Drop shadow
- Flashing
- Shall generate dynamically sized test patterns to facilitate display setup
- Videowall system shall provide the following security features:
- Shall provide an encrypted data connection between control PC and videowall processor
- Shall support digitally signed firmware upgrades
- Enabling and disabling of physical and IP ports
- Shall provide event logging to a file with user-definable maximum size
- Operating system shall be password protected with a user definable, changeable password
- Videowall processor shall be compatible with the following input and output cards
- 4K/60 HDMI input card which shall:
- Support HDMI video and embedded audio signals
- Provide up to four female HDMI connectors
- Accept up to four simultaneous inputs, each with pixel clocks up to 600 MHz, supporting resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz
- Support 4K/60 signal per each connection
- Support horizontal frequencies from 15 kHz to 100 kHz
- Support vertical frequencies from 24 Hz to 240 Hz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Support pass-through audio formats of LPCM up to 7.2/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays when used with HDMI output cards.
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Provide a locking mechanism to secure HDMI cable connections
- 4K/60 fiber input cards which shall:
- Support video and embedded audio signals
- Support four video channels per card
- Support two SFP modules per channel
- Accept compressed signals up to 4096x2160 @ 60 Hz per channel on a single SFP
- Accept uncompressed signals up to 4096x2160 @ 30 Hz per channel on a single SFP or up to 4096x2160 @ 60 Hz per channel on two SFPs
- Support vertical frequencies from 24 Hz to 120 Hz
- Support horizontal frequencies from 24 kHz to 120 kHz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Support pass-through audio formats of LPCM 2-channel up to 48 Khz
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Support multimode and singlemode fiber formats
- Support Ethernet to RS-232 insertion for transmitting control commands via fiber to attached peripherals
- 4K/60 Twisted-pair input card which shall:
- Support up to four inputs from at distances up to 330 feet (100 meters) over shielded CATx cable
- Support up to four simultaneous inputs, each with pixel clocks up to 600 MHz, at resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Accept 4K/60 signals on one connection
- Support vertical frequencies from 24 Hz to 120 Hz
- Support horizontal frequencies from 24 kHz to 120 kHz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port
- Dante audio card which shall:
- Deliver up to 32 LPCM stereo pairs, to a Dante® network
- Deliver active audio from any canvas or discrete program audio from an input source
- Include two Dante Ethernet ports, providing redundancy in case of a network outage.
- Support one or more videowalls with a single Dante audio card
- Select audio for a Dante network using control software or remote commands
- Be compatible with Dante Controller software for setup and managing the audio network.
- HDMI input card which shall:
- Support HDMI video signals
- Provide up to four female HDMI connectors
- Accept up to four simultaneous inputs, each with pixel clocks up to 165 MHz, supporting resolutions up to 1920x1200 and 2K at 60 Hz
- Accept up to two simultaneous inputs, each with pixel clocks up to 300 MHz, supporting resolutions up to 4096x2160 at 30 Hz
- Support 4K/30 signals using one connection
- Support 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 135 kHz
- Support vertical frequencies from 24 Hz to 75 Hz
- Provide 4:4:4 input sampling at up to 10 bits per color
- Automatically detect incoming source types
- Accept HDCP-encrypted content for presentation on HDCP-compatible displays when used with HDMI output cards.
- Allows individual inputs to appear HDCP compliant or non-HDCP compliant to the connected source
- Perform downscaling to at least 1/100 of the native source resolution
- Provide a locking mechanism to secure HDMI cable connections
- 4K/60 HDMI output card which shall:
- Support HDMI video and embedded audio signals
- Provide up to four female HDMI connectors
- Provide up to four simultaneous outputs, each with pixel clocks up to 600 MHz, at resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz
- Deliver 4K/60 signals using one connection
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Support pass-through audio formats of LPCM up to 7.2/24-bit/192 kHz, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, Dolby Atmos 7.2, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2-channel
- Provide a locking mechanism to secure HDMI cable connections
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- 4K/60 fiber output card which shall:
- Support video and embedded audio signals
- Support four video channels per card
- Support two SFP modules per channel
- Deliver compressed signals up to 4096x2160 @ 60 Hz per channel on a single SFP
- Deliver uncompressed signals up to 4096x2160 @ 30 Hz per channel on a single SFP or up to 4096x2160 @ 60 Hz per channel on two SFPs
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Support pass-through audio formats of LPCM 2-channel up to 48 Khz
- Allow the display of up to 64 source windows across each four-channel output card
- Scale sources up to 32 times the output resolution horizontally and vertically
- 4K/60 Twisted-pair output card which shall:
- Support up to four outputs at distances up to 330 feet (100 meters) over shielded CATx cable
- Provide up to four simultaneous outputs, each with pixel clocks up to 600 MHz, at resolutions up to 4096x2400 at 30 Hz and 4096x2160 at 60 Hz Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/60 signals using one connection
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port
- HDMI output card which shall:
- Support HDMI video signals
- Provide up to four female HDMI connectors
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support vertical frequencies from 23.98 Hz to 60 Hz
- Provide a locking mechanism to secure HDMI cable connections
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Twisted-pair output card which shall:
- Support up to four outputs at distances up to 330 feet (100 meters) over shielded CATx cable
- Provide up to four simultaneous outputs, each with pixel clocks up to 165 MHz, at resolutions up to 1920x1200 and 2K at 60 Hz
- Provide up to two simultaneous outputs, each with pixel clocks up to 300 MHz, at resolutions up to 4096x2160 at 30 Hz
- Deliver 4K/30 signals using one connection
- Deliver 4K/60 signal using two or four connections
- Support horizontal frequencies from 15 kHz to 100 kHz
- Support vertical frequencies from 23.98 Hz to 75 Hz
- Allow the display of up to 64 source windows across each four-channel output card
- Variably scale sources up to 32 times the output resolution horizontally and vertically
- Support remote powering of receivers
- Support bi-directional RS-232 and IR insertion for AV device control
- Support RS-232 insertion from an Ethernet port
- Streaming video decoder card which shall:
- Support up to two independently configurable network connections
- Be capable of decoding H-264/AVC, MPEG-2, and MJPEG video streams
- Support the video section of ONVIF Profile S
- Decode from four 1080p/60 to 16 standard-definition video streams
- Decode video streams with no more than 1 second of latency
- Provide 4:4:4 input sampling at up to 8 bits per color
- Perform downscaling to at least 1/100 of the native source resolution
- 4K/60 HDMI input card which shall:
- Canvas audio source input assignment
- Shall be selectable from any single HDMI or fiber source audio signal
- Remote operation and system control
- Shall be accessible from USB, RS-232, and Ethernet interfaces
- Shall be achieved with direct connection to the processor
- Shall allow control of:
- Setting window input source
- Window muting
- Window priority (layer)
- Window position and size adjust
- Window presets recall
- Recall window border style
- Set window text
- Video signal presence, by window
- Set/view IP settings (IP address, subnet, gateway)
- Reset
- Hardware failure alert
- Allow for independent preset and window control per screen group
- Control software shall be included with the videowall processor
- Shall operate on a PC independent of the videowall processor
- Shall provide network detection for videowall processor discovery
- Shall allow configuration of online processors
- Shall allow manual creation, definition and configuration of processors when offline
- Shall provide a graphical representation of the videowall onto which sources can be dragged and dropped to create window presets
- Shall allow for the creation of custom screen layouts in one or more virtual screen groups
- Shall allow for selection of output parameters, including:
- Resolution
- Refresh rate
- HDCP notification
- Output rotation in 90-degree increments
- Screen overlap
- Mullion compensation
- Shall allow output parameters to be set independently per screen group
- Shall allow creation of source definitions, including:
- Physical sources, via auto-detection or manual selection
- VNC Sources
- Static image sources
- Text sources
- Timer/Clock sources with:
- Timer direction control (count up/count down)
- Multiple time zones
- Daylight savings time support
- Shall allow for image adjustments of physical sources, including:
- Size
- Position
- Contrast
- Brightness
- Name
- Film mode
- Shall allow for the creation of window presets, with user control over:
- Window source
- Source size
- Window size
- Window position
- Window layer
- Window contents
- Window border
- Window title
- Window overlay
- Shall allow for the creation of 128 window presets per screen group
- Shall provide controls for system EDID management
- Shall allow creation of a password-protected Administrator account for system management
- Allow administrator to create password-protected User accounts
- Rack mountable videowall processor for source windowing on single or tiled displays shall:
- Approved device shall be the Extron Quantum Ultra II 610 (custom part number based on configuration); no alternates or equals
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
