XTP II CP HD 8K I/O 板
建筑工程规范
选择一个产品编号：
复制文本
已复制！
发生错误。请稍后重试。
XTP II CP 4i HD 8K
- Shall provide a four (4) input HDCP 2.3-compliant HDMI 2.1 video and stereo audio board that is compatible with XTP matrix switchers and occupies one (1) input slot
- Shall be a single slot input board that accepts video on HDMI connectors and stereo audio on captive screw connectors
- Shall provide four (4) female HDMI 2.1 Type A connectors for digital video
- Shall provide four (4) 5-pole captive screw connectors for analog audio
- Shall provide four (4) 2-pole captive screw connectors for +12·VDC, 125·mA power connections to support active HDMI cables
- Shall support computer and video resolutions up to 7680x4320 at 30 Hz with 4:4:4 color sampling at 10 bits per color
- Shall support HDMI 2.1 specification features
- Data rates up to 40.1 Gbps
- FRL - Fixed Rate Link up to 10 Gbps
- Deep Color up to 12 bits per color
- 3D content
- Embedded HD lossless audio formats
- Shall be HDCP 2.3-compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall actively buffer DDC channels
- Shall automatically manage color bit depth
- Shall provide cable equalization for each input
- Shall digitize analog audio signals as two-channel PCM digital audio
- Shall provide audio input adjustments for gain and attenuation
- Shall be hot-swappable
- Shall include Extron LockIt® HDMI cable lacing brackets
- Shall be compatible with XTP II CrossPoint and XTP CrossPoint matrix switchers
- Approved device shall be the Extron XTP II 4i HD 8K (70-1262-01); no alternates or equals
- Shall be a single slot input board that accepts video on HDMI connectors and stereo audio on captive screw connectors
XTP II CP 4i HD 8K
- Shall provide a four (4) input HDCP 2.3-compliant HDMI 2.1 video and stereo audio board that is compatible with XTP matrix switchers and occupies one (1) input slot
- Shall be a single slot input board that accepts video on HDMI connectors and stereo audio on captive screw connectors
- Shall provide four (4) female HDMI 2.1 Type A connectors for digital video
- Shall provide four (4) 5-pole captive screw connectors for analog audio
- Shall provide four (4) 2-pole captive screw connectors for +12·VDC, 125·mA power connections to support active HDMI cables
- Shall support computer and video resolutions up to 7680x4320 at 30 Hz with 4:4:4 color sampling at 10 bits per color
- Shall support HDMI 2.1 specification features
- Data rates up to 40.1 Gbps
- FRL - Fixed Rate Link up to 10 Gbps
- Deep Color up to 12 bits per color
- 3D content
- Embedded HD lossless audio formats
- Shall be HDCP 2.3-compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall actively buffer DDC channels
- Shall automatically manage color bit depth
- Shall provide cable equalization for each input
- Shall digitize analog audio signals as two-channel PCM digital audio
- Shall provide audio input adjustments for gain and attenuation
- Shall be hot-swappable
- Shall include Extron LockIt® HDMI cable lacing brackets
- Shall be compatible with XTP II CrossPoint and XTP CrossPoint matrix switchers
- Approved device shall be the Extron XTP II 4i HD 8K (70-1262-01); no alternates or equals
- Shall be a single slot input board that accepts video on HDMI connectors and stereo audio on captive screw connectors
XTP II CP 4o HD 8K
- Shall provide a four (4) output HDCP 2.3-compliant HDMI 2.1 video and stereo audio board that is compatible with XTP matrix switchers and occupies one (1) output slot.
- Shall be a single slot output board that transmits video on HDMI connectors and stereo audio on captive screw connectors
- Shall provide four (4) female HDMI 2.1 Type A connectors for digital video
- Shall provide four (4) 5-pole captive screw connectors for analog audio
- Shall support computer and video resolutions up to 7680x4320 at 30 Hz with 4:4:4 color sampling at 10 bits per color
- Shall support balanced or unbalanced audio outputs
- Shall support HDMI 2.1 specification features
- Data rates up to 40.1 Gbps
- FRL - Fixed Rate Link up to 10 Gbps
- Deep Color up to 12 bits
- 3D content
- Embedded HD lossless audio formats
- Shall be HDCP 2.3-compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall provide visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- Video output will be a solid green color
- Shall actively buffer DDC channels
- Shall automatically manage color bit depth
- Shall provide automatic output re-clocking for each video output
- Shall provide video muting control
- Shall digitize analog audio signals as two-channel PCM digital audio
- Shall provide audio output adjustments for gain, attenuation, and muting
- Shall provide output volume control
- Shall allow video and audio signals to be routed independently, break-away routing
- Shall supply +5 VDC, 250 mA power per HDMI output for peripheral devices
- Shall automatically reformat HDMI source signals for output to a connected DVI display
- Shall be hot-swappable
- Shall include Extron LockIt® HDMI cable lacing brackets
- Shall be compatible with XTP II CrossPoint and XTP CrossPoint matrix switchers
- Approved device shall be the Extron XTP II 4o HD 8K (70-1263-01); no alternates or equals
- Shall be a single slot output board that transmits video on HDMI connectors and stereo audio on captive screw connectors
XTP II CP 4o HD 8K
- Shall provide a four (4) output HDCP 2.3-compliant HDMI 2.1 video and stereo audio board that is compatible with XTP matrix switchers and occupies one (1) output slot.
- Shall be a single slot output board that transmits video on HDMI connectors and stereo audio on captive screw connectors
- Shall provide four (4) female HDMI 2.1 Type A connectors for digital video
- Shall provide four (4) 5-pole captive screw connectors for analog audio
- Shall support computer and video resolutions up to 7680x4320 at 30 Hz with 4:4:4 color sampling at 10 bits per color
- Shall support balanced or unbalanced audio outputs
- Shall support HDMI 2.1 specification features
- Data rates up to 40.1 Gbps
- FRL - Fixed Rate Link up to 10 Gbps
- Deep Color up to 12 bits
- 3D content
- Embedded HD lossless audio formats
- Shall be HDCP 2.3-compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall provide visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- Video output will be a solid green color
- Shall actively buffer DDC channels
- Shall automatically manage color bit depth
- Shall provide automatic output re-clocking for each video output
- Shall provide video muting control
- Shall digitize analog audio signals as two-channel PCM digital audio
- Shall provide audio output adjustments for gain, attenuation, and muting
- Shall provide output volume control
- Shall allow video and audio signals to be routed independently, break-away routing
- Shall supply +5 VDC, 250 mA power per HDMI output for peripheral devices
- Shall automatically reformat HDMI source signals for output to a connected DVI display
- Shall be hot-swappable
- Shall include Extron LockIt® HDMI cable lacing brackets
- Shall be compatible with XTP II CrossPoint and XTP CrossPoint matrix switchers
- Approved device shall be the Extron XTP II 4o HD 8K (70-1263-01); no alternates or equals
- Shall be a single slot output board that transmits video on HDMI connectors and stereo audio on captive screw connectors

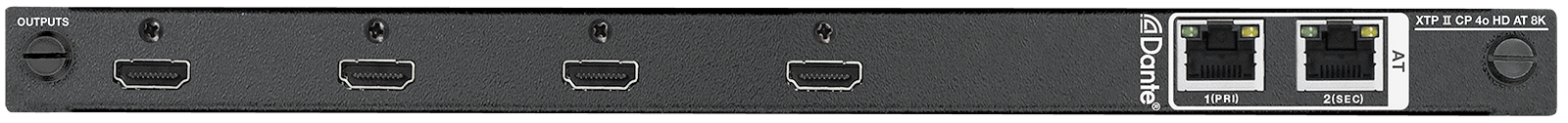

XTP II CP 4o HD AT 8K
- Shall provide a four (4) output HDCP 2.3-compliant HDMI 2.1 video and stereo audio board that is compatible with XTP matrix switchers and occupies one (1) output slot.
- Shall be a single slot output board that transmits video on HDMI connectors and Dante digital audio on RJ45 connectors
- Shall provide four (4) female HDMI 2.1 Type A connectors for digital video
- Shall provide two (2) RJ45 connectors for Dante digital audio, 1 primary and 1 secondary
- Shall support computer and video resolutions up to 7680x4320 at 30 Hz with 4:4:4 color sampling at 10 bits per color
- Shall support four Dante digital stereo audio outputs
- Shall support HDMI 2.1 specification features
- Data rates up to 40.1 Gbps
- FRL - Fixed Rate Link up to 10 Gbps
- Deep Color up to 12 bits
- 3D content
- Embedded HD lossless audio formats
- Shall be HDCP 2.3-compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall provide visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- Video output will be a solid green color
- Shall actively buffer DDC channels
- Shall automatically manage color bit depth
- Shall provide automatic output re-clocking for each video output
- Shall provide video muting control
- Shall digitize analog audio signals as two-channel PCM digital audio
- Shall provide audio output adjustments for gain, attenuation, and muting
- Shall provide output volume control
- Shall allow video and audio signals to be routed independently, break-away routing
- Shall supply +5 VDC, 250 mA power per HDMI output for peripheral devices
- Shall automatically reformat HDMI source signals for output to a connected DVI display
- Shall be hot-swappable
- Shall include Extron LockIt® HDMI cable lacing brackets
- Shall be compatible with XTP II CrossPoint and XTP CrossPoint matrix switchers
- Approved device shall be the Extron XTP II 4o HD AT 8K (70-1302-01); no alternates or equals
- Shall be a single slot output board that transmits video on HDMI connectors and Dante digital audio on RJ45 connectors
XTP II CP 4o HD AT 8K
- Shall provide a four (4) output HDCP 2.3-compliant HDMI 2.1 video and stereo audio board that is compatible with XTP matrix switchers and occupies one (1) output slot.
- Shall be a single slot output board that transmits video on HDMI connectors and Dante digital audio on RJ45 connectors
- Shall provide four (4) female HDMI 2.1 Type A connectors for digital video
- Shall provide two (2) RJ45 connectors for Dante digital audio, 1 primary and 1 secondary
- Shall support computer and video resolutions up to 7680x4320 at 30 Hz with 4:4:4 color sampling at 10 bits per color
- Shall support four Dante digital stereo audio outputs
- Shall support HDMI 2.1 specification features
- Data rates up to 40.1 Gbps
- FRL - Fixed Rate Link up to 10 Gbps
- Deep Color up to 12 bits
- 3D content
- Embedded HD lossless audio formats
- Shall be HDCP 2.3-compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall provide visual confirmation of HDCP compliance when encrypted content is routed to a non-HDCP compliant display
- Video output will be a solid green color
- Shall actively buffer DDC channels
- Shall automatically manage color bit depth
- Shall provide automatic output re-clocking for each video output
- Shall provide video muting control
- Shall digitize analog audio signals as two-channel PCM digital audio
- Shall provide audio output adjustments for gain, attenuation, and muting
- Shall provide output volume control
- Shall allow video and audio signals to be routed independently, break-away routing
- Shall supply +5 VDC, 250 mA power per HDMI output for peripheral devices
- Shall automatically reformat HDMI source signals for output to a connected DVI display
- Shall be hot-swappable
- Shall include Extron LockIt® HDMI cable lacing brackets
- Shall be compatible with XTP II CrossPoint and XTP CrossPoint matrix switchers
- Approved device shall be the Extron XTP II 4o HD AT 8K (70-1302-01); no alternates or equals
- Shall be a single slot output board that transmits video on HDMI connectors and Dante digital audio on RJ45 connectors
