XTP II CP Fiber 8K 输入/输出板
建筑工程规范
选择一个产品编号：
复制文本
已复制！
发生错误。请稍后重试。
XTP II CP 4i F 8K MM
- Shall provide a four (4) input board with selectable XTP fiber or HDMI connectors that is compatible with XTP matrix switchers and occupies one (1) input slot
- A single slot input board that accepts video with or without embedded audio on fiber optic or HDMI connectors, and 1 Gbps Ethernet extension
- Shall provide four (8) LC fiber optic connectors for digital video with or without embedded audio
- Shall provide four (4) HDMI connectors for digital video with or without embedded audio
- Shall provide four (4) RJ-45 style jacks for 1 Gbps Ethernet extension via independent RJ-45 jacks to extend network information two OM4 multimode fiber optic cables with video, audio, and control signals
- Shall support uncompressed computer and video resolutions up to 8K @ 60Hz
- Shall support ultra-wide aspect ratios, including 21:9
- Shall support RGB digital video (DVI and HDMI standards) or Y/Cr/Cb digital component video
- Shall support HDMI 2.1 specification features
- Data rates up to 40.1 Gbps
- Deep Color up to 12 bits per color
- 3D content
- Embedded HD lossless audio formats
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall actively buffer DDC channels
- Shall support Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Shall support Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall provide the capability to break away an audio signal from its corresponding video signal
- Shall support embedded digital audio formats
- Shall support extension of video, audio, and control signals plus Ethernet over two laser-optimized OM4 multimode fiber optic cable
- Shall enable signal extension up to 400 meters (1,312 feet)
- Shall be hot-swappable
- Shall be compatible with XTP II CrossPoint and XTP CrossPoint matrix switchers
- Approved device shall be the Extron XTP II CP 4i F 8K MM (70-1114-01); no alternates or equals
- A single slot input board that accepts video with or without embedded audio on fiber optic or HDMI connectors, and 1 Gbps Ethernet extension
XTP II CP 4i F 8K MM
- Shall provide a four (4) input board with selectable XTP fiber or HDMI connectors that is compatible with XTP matrix switchers and occupies one (1) input slot
- A single slot input board that accepts video with or without embedded audio on fiber optic or HDMI connectors, and 1 Gbps Ethernet extension
- Shall provide four (8) LC fiber optic connectors for digital video with or without embedded audio
- Shall provide four (4) HDMI connectors for digital video with or without embedded audio
- Shall provide four (4) RJ-45 style jacks for 1 Gbps Ethernet extension via independent RJ-45 jacks to extend network information two OM4 multimode fiber optic cables with video, audio, and control signals
- Shall support uncompressed computer and video resolutions up to 8K @ 60Hz
- Shall support ultra-wide aspect ratios, including 21:9
- Shall support RGB digital video (DVI and HDMI standards) or Y/Cr/Cb digital component video
- Shall support HDMI 2.1 specification features
- Data rates up to 40.1 Gbps
- Deep Color up to 12 bits per color
- 3D content
- Embedded HD lossless audio formats
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall actively buffer DDC channels
- Shall support Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Shall support Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall provide the capability to break away an audio signal from its corresponding video signal
- Shall support embedded digital audio formats
- Shall support extension of video, audio, and control signals plus Ethernet over two laser-optimized OM4 multimode fiber optic cable
- Shall enable signal extension up to 400 meters (1,312 feet)
- Shall be hot-swappable
- Shall be compatible with XTP II CrossPoint and XTP CrossPoint matrix switchers
- Approved device shall be the Extron XTP II CP 4i F 8K MM (70-1114-01); no alternates or equals
- A single slot input board that accepts video with or without embedded audio on fiber optic or HDMI connectors, and 1 Gbps Ethernet extension
XTP II CP 4i F 8K SM
- Shall provide a four (4) input board with selectable XTP fiber or HDMI connectors that is compatible with XTP matrix switchers and occupies one (1) input slot
- A single slot input board that accepts video with or without embedded audio on fiber optic or HDMI connectors, and 1 Gbps Ethernet extension
- Shall provide four (8) LC fiber optic connectors for digital video with or without embedded audio
- Shall provide four (4) HDMI connectors for digital video with or without embedded audio
- Shall provide four (4) RJ-45 style jacks for 1 Gbps Ethernet extension via independent RJ-45 jacks to extend network information over two singlemode fiber optic cables with video, audio, and control signals
- Shall support uncompressed computer and video resolutions up to 8K @60Hz
- Shall support ultra-wide aspect ratios, including 21:9
- Shall support RGB digital video (DVI and HDMI standards) or Y/Cr/Cb digital component video
- Shall support HDMI 2.1 specification features
- Data rates up to 40.1 Gbps
- Deep Color up to 12 bits per color
- 3D content
- Embedded HD lossless audio formats
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall actively buffer DDC channels
- Shall support Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Shall support Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support embedded digital audio formats
- Shall provide the capability to break away an audio signal from its corresponding video signal
- Shall support extension of video, audio, and control signals plus Ethernet over two singlemode fiber optic cables
- Shall enable signal extension up to 10 kilometers (6.21 miles)
- Shall be hot-swappable
- Shall be compatible with XTP II CrossPoint and XTP CrossPoint matrix switchers
- Approved device shall be the Extron XTP II CP 4i F 8K SM (70-1114-02); no alternates or equals
- A single slot input board that accepts video with or without embedded audio on fiber optic or HDMI connectors, and 1 Gbps Ethernet extension
XTP II CP 4i F 8K SM
- Shall provide a four (4) input board with selectable XTP fiber or HDMI connectors that is compatible with XTP matrix switchers and occupies one (1) input slot
- A single slot input board that accepts video with or without embedded audio on fiber optic or HDMI connectors, and 1 Gbps Ethernet extension
- Shall provide four (8) LC fiber optic connectors for digital video with or without embedded audio
- Shall provide four (4) HDMI connectors for digital video with or without embedded audio
- Shall provide four (4) RJ-45 style jacks for 1 Gbps Ethernet extension via independent RJ-45 jacks to extend network information over two singlemode fiber optic cables with video, audio, and control signals
- Shall support uncompressed computer and video resolutions up to 8K @60Hz
- Shall support ultra-wide aspect ratios, including 21:9
- Shall support RGB digital video (DVI and HDMI standards) or Y/Cr/Cb digital component video
- Shall support HDMI 2.1 specification features
- Data rates up to 40.1 Gbps
- Deep Color up to 12 bits per color
- 3D content
- Embedded HD lossless audio formats
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall actively buffer DDC channels
- Shall support Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Shall support Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support embedded digital audio formats
- Shall provide the capability to break away an audio signal from its corresponding video signal
- Shall support extension of video, audio, and control signals plus Ethernet over two singlemode fiber optic cables
- Shall enable signal extension up to 10 kilometers (6.21 miles)
- Shall be hot-swappable
- Shall be compatible with XTP II CrossPoint and XTP CrossPoint matrix switchers
- Approved device shall be the Extron XTP II CP 4i F 8K SM (70-1114-02); no alternates or equals
- A single slot input board that accepts video with or without embedded audio on fiber optic or HDMI connectors, and 1 Gbps Ethernet extension

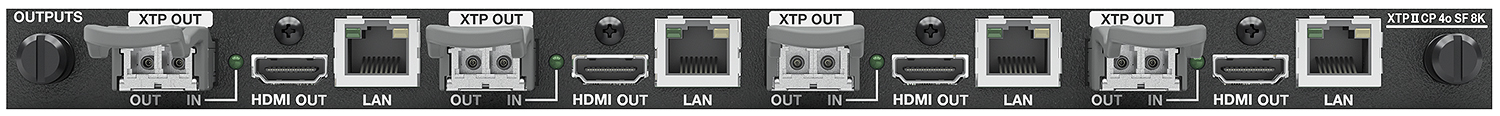

XTP II CP 4o SF 8K MM
- Shall provide a four (4) output board with scaled XTP fiber and local, unscaled HDMI connections that is compatible with XTP matrix switchers and occupies one (1) input slot
- A single slot output board that supports video with or without embedded audio on fiber optic connectors, and 1 Gbps Ethernet extension
- Shall provide four (8) LC fiber optic connectors for digital video with or without embedded audio
- Shall provide four (4) HDMI connectors for digital video with or without embedded audio
- Shall provide four (4) RJ-45 style jacks for 1 Gbps Ethernet extension via independent RJ-45 jacks to extend network information over two multimode fiber optic cables with video, audio, and control signals
- Shall support uncompressed computer and video resolutions up to 8K @ 60Hz
- Shall support RGB digital video (DVI and HDMI standards) or Y/Cr/Cb digital component video
- Shall support HDMI 2.1 specification features
- Data rates up to 40.1 Gbps
- Deep Color up to 12 bits per color
- 3D content
- Embedded HD lossless audio formats
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall actively buffer DDC channels
- Shall support Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Shall support Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support embedded digital audio formats
- Scaling requirements
- Shall have the ability to scale incoming computer and video resolutions up to 4K @ 60Hz 4:4:4 and output scaled video on the fiber connections
- Shall provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- User may selectively enable to disable automatic detection for each input
- Shall provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Shall provide switching transitions option of fade through black, cut through black, or seamless cut with a transition time of less than 1 second
- Shall support aspect ratio control fill or follow
- Shall provide storage and recall of video parameters and picture settings
- Automatic memories for each video
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- User may selectively enable or disable automatic memories
- Automatic memories for each video
- Shall support extension of video, audio, and control signals plus Ethernet over two laser-optimized OM4 multimode fiber optic cables
- Shall enable signal extension up to 400 meters (1,312 feet)
- Shall be hot-swappable
- Shall be compatible with XTP II CrossPoint and XTP CrossPoint matrix switchers
- Approved device shall be the Extron XTP II CP 4o SF 8K MM (70-1301-01); no alternates or equals
- A single slot output board that supports video with or without embedded audio on fiber optic connectors, and 1 Gbps Ethernet extension
XTP II CP 4o SF 8K MM
- Shall provide a four (4) output board with scaled XTP fiber and local, unscaled HDMI connections that is compatible with XTP matrix switchers and occupies one (1) input slot
- A single slot output board that supports video with or without embedded audio on fiber optic connectors, and 1 Gbps Ethernet extension
- Shall provide four (8) LC fiber optic connectors for digital video with or without embedded audio
- Shall provide four (4) HDMI connectors for digital video with or without embedded audio
- Shall provide four (4) RJ-45 style jacks for 1 Gbps Ethernet extension via independent RJ-45 jacks to extend network information over two multimode fiber optic cables with video, audio, and control signals
- Shall support uncompressed computer and video resolutions up to 8K @ 60Hz
- Shall support RGB digital video (DVI and HDMI standards) or Y/Cr/Cb digital component video
- Shall support HDMI 2.1 specification features
- Data rates up to 40.1 Gbps
- Deep Color up to 12 bits per color
- 3D content
- Embedded HD lossless audio formats
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall actively buffer DDC channels
- Shall support Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Shall support Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support embedded digital audio formats
- Scaling requirements
- Shall have the ability to scale incoming computer and video resolutions up to 4K @ 60Hz 4:4:4 and output scaled video on the fiber connections
- Shall provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- User may selectively enable to disable automatic detection for each input
- Shall provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Shall provide switching transitions option of fade through black, cut through black, or seamless cut with a transition time of less than 1 second
- Shall support aspect ratio control fill or follow
- Shall provide storage and recall of video parameters and picture settings
- Automatic memories for each video
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- User may selectively enable or disable automatic memories
- Automatic memories for each video
- Shall support extension of video, audio, and control signals plus Ethernet over two laser-optimized OM4 multimode fiber optic cables
- Shall enable signal extension up to 400 meters (1,312 feet)
- Shall be hot-swappable
- Shall be compatible with XTP II CrossPoint and XTP CrossPoint matrix switchers
- Approved device shall be the Extron XTP II CP 4o SF 8K MM (70-1301-01); no alternates or equals
- A single slot output board that supports video with or without embedded audio on fiber optic connectors, and 1 Gbps Ethernet extension
XTP II CP 4o SF 8K SM
- Shall provide a four (4) output board with scaled XTP fiber and local, unscaled HDMI connections that is compatible with XTP matrix switchers and occupies one (1) input slot
- A single slot output board that supports video with or without embedded audio on fiber optic connectors, and 1 Gbps Ethernet extension
- Shall provide four (8) LC fiber optic connectors for digital video with or without embedded audio
- Shall provide four (4) HDMI connectors for digital video with or without embedded audio
- Shall provide four (4) RJ-45 style jacks for 1 Gbps Ethernet extension via independent RJ-45 jacks to extend network information over two singlemode fiber optic cables with video, audio, and control signals
- Shall support uncompressed computer and video resolutions up to 8K @ 60Hz
- Shall support RGB digital video (DVI and HDMI standards) or Y/Cr/Cb digital component video
- Shall support HDMI 2.1 specification features
- Data rates up to 40.1 Gbps
- Deep Color up to 12 bits per color
- 3D content
- Embedded HD lossless audio formats
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall actively buffer DDC channels
- Shall support Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Shall support Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support embedded digital audio formats
- Scaling requirements
- Shall have the ability to scale incoming computer and video resolutions up to 4K @ 60Hz 4:4:4 and output scaled video on the fiber connections
- Shall provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- User may selectively enable to disable automatic detection for each input
- Shall provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Shall provide switching transitions option of fade through black, cut through black, or seamless cut with a transition time of less than 1 second
- Shall support aspect ratio control fill or follow
- Shall provide storage and recall of video parameters and picture settings
- Automatic memories for each video
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- User may selectively enable or disable automatic memories
- Automatic memories for each video
- Shall support extension of video, audio, and control signals plus Ethernet over two singlemode fiber optic cables
- Shall enable signal extension up to 400 meters (1,312 feet)
- Shall be hot-swappable
- Shall be compatible with XTP II CrossPoint and XTP CrossPoint matrix switchers
- Approved device shall be the Extron XTP II CP 4o SF 8K SM (70-1301-02); no alternates or equals
- A single slot output board that supports video with or without embedded audio on fiber optic connectors, and 1 Gbps Ethernet extension
XTP II CP 4o SF 8K SM
- Shall provide a four (4) output board with scaled XTP fiber and local, unscaled HDMI connections that is compatible with XTP matrix switchers and occupies one (1) input slot
- A single slot output board that supports video with or without embedded audio on fiber optic connectors, and 1 Gbps Ethernet extension
- Shall provide four (8) LC fiber optic connectors for digital video with or without embedded audio
- Shall provide four (4) HDMI connectors for digital video with or without embedded audio
- Shall provide four (4) RJ-45 style jacks for 1 Gbps Ethernet extension via independent RJ-45 jacks to extend network information over two singlemode fiber optic cables with video, audio, and control signals
- Shall support uncompressed computer and video resolutions up to 8K @ 60Hz
- Shall support RGB digital video (DVI and HDMI standards) or Y/Cr/Cb digital component video
- Shall support HDMI 2.1 specification features
- Data rates up to 40.1 Gbps
- Deep Color up to 12 bits per color
- 3D content
- Embedded HD lossless audio formats
- Shall be HDCP 2.3 compliant
- Shall provide the option to disable HDCP processing at the HDMI input connection when passing unencrypted content
- Shall actively buffer DDC channels
- Shall support Extron EDID Minder® technology to automatically manage EDID communication between connected devices
- Shall support Extron Key Minder® technology to authenticate and maintain continuous HDCP encryption between the input and output devices to ensure quick and reliable switching
- Shall support embedded digital audio formats
- Scaling requirements
- Shall have the ability to scale incoming computer and video resolutions up to 4K @ 60Hz 4:4:4 and output scaled video on the fiber connections
- Shall provide automatic detection of input video parameters
- Determine total pixels, active pixels, active lines, H/V starting points, H/V image positions, H/V image sizes, and video clock phase
- User may selectively enable to disable automatic detection for each input
- Shall provide image adjustments for brightness, contrast, color, tint, detail, H/V positioning, and sizing
- Shall provide switching transitions option of fade through black, cut through black, or seamless cut with a transition time of less than 1 second
- Shall support aspect ratio control fill or follow
- Shall provide storage and recall of video parameters and picture settings
- Automatic memories for each video
- Save video settings and picture adjustments without user intervention
- Automatically recall settings when the same video rate is encountered
- User may selectively enable or disable automatic memories
- Automatic memories for each video
- Shall support extension of video, audio, and control signals plus Ethernet over two singlemode fiber optic cables
- Shall enable signal extension up to 400 meters (1,312 feet)
- Shall be hot-swappable
- Shall be compatible with XTP II CrossPoint and XTP CrossPoint matrix switchers
- Approved device shall be the Extron XTP II CP 4o SF 8K SM (70-1301-02); no alternates or equals
- A single slot output board that supports video with or without embedded audio on fiber optic connectors, and 1 Gbps Ethernet extension
把商品添加到购物车
Order Message Number
产品编号
注: 使用通用交流电源插座的 Extron 产品可支持多种不同的交流电源插头类型。在使用之前，确保设备满足您所在区域的所有规定要求，并符合所有应用的本地安全和电气规程及标准。
当前总计：
Annotation Graphics Processor
To view this page ensure that Adobe Flash Player version
11.0.0 or greater is installed and enabled.
Chrome
Firefox
Edge
Safari
